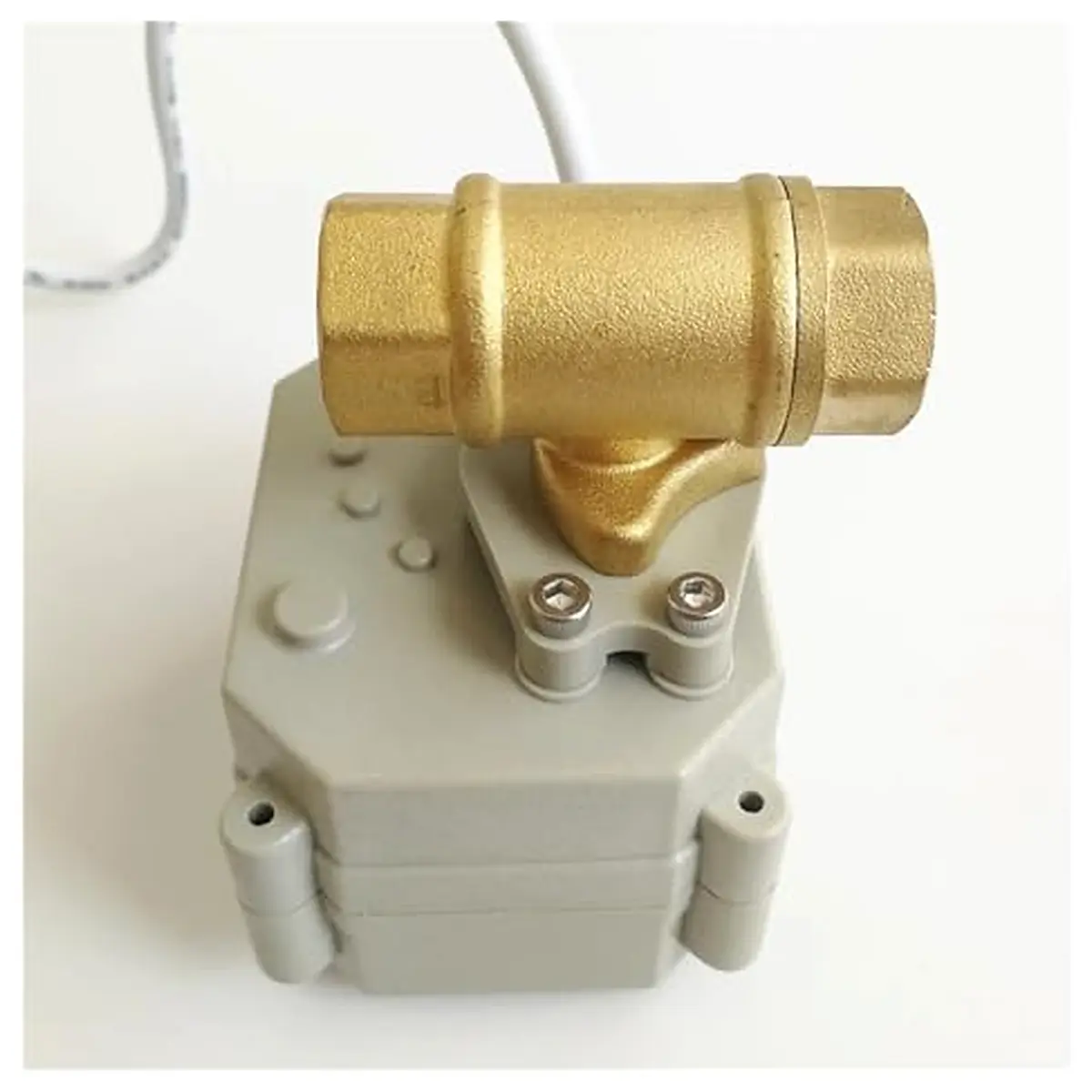

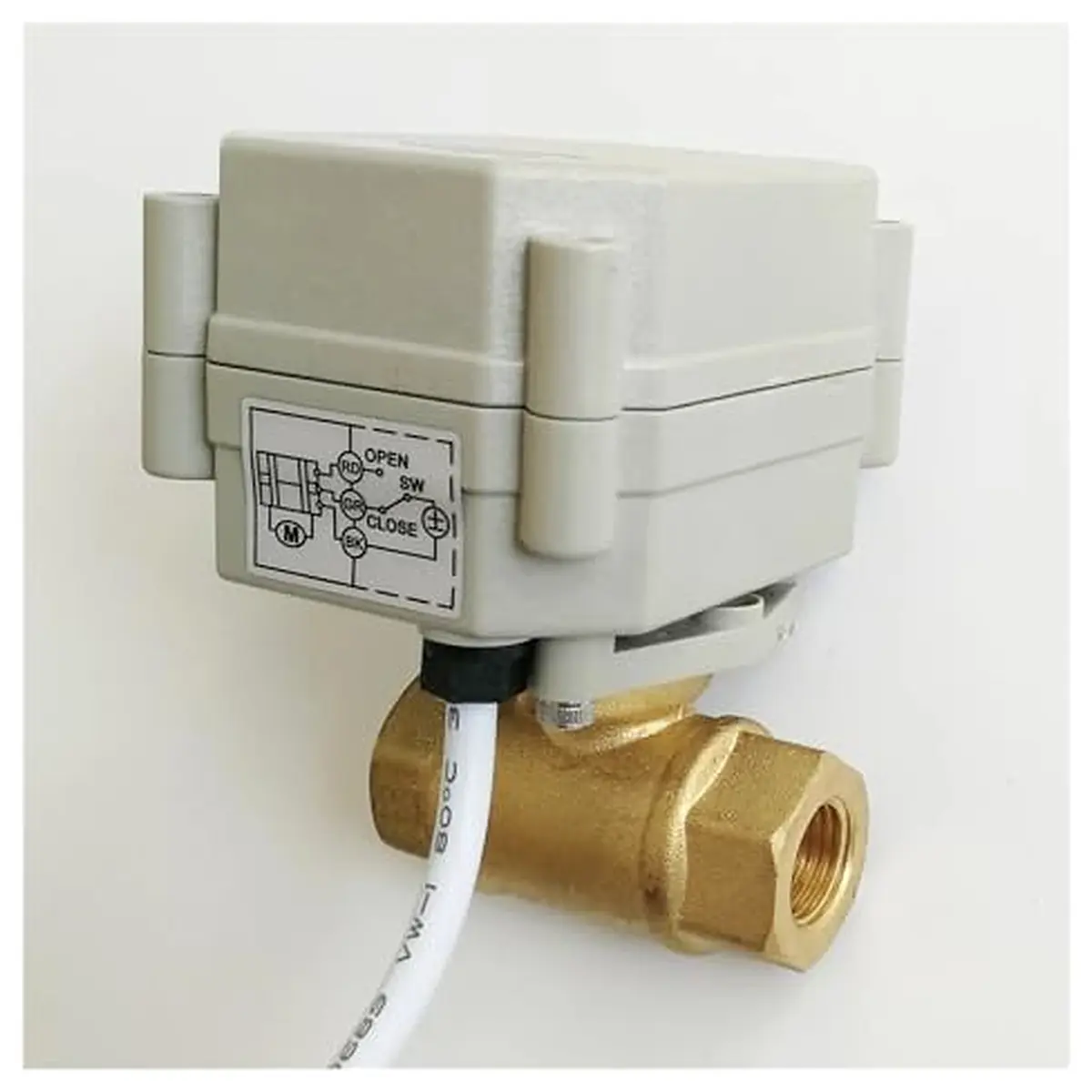

TFM8 B2 C 2 Way Brass 1 4 DN8 DC12V DC24V Proportional Valve Signal 0 5V 0 10V or 4 20mA for Water Modulating Control Bsp, Output PWM 0V to 5V

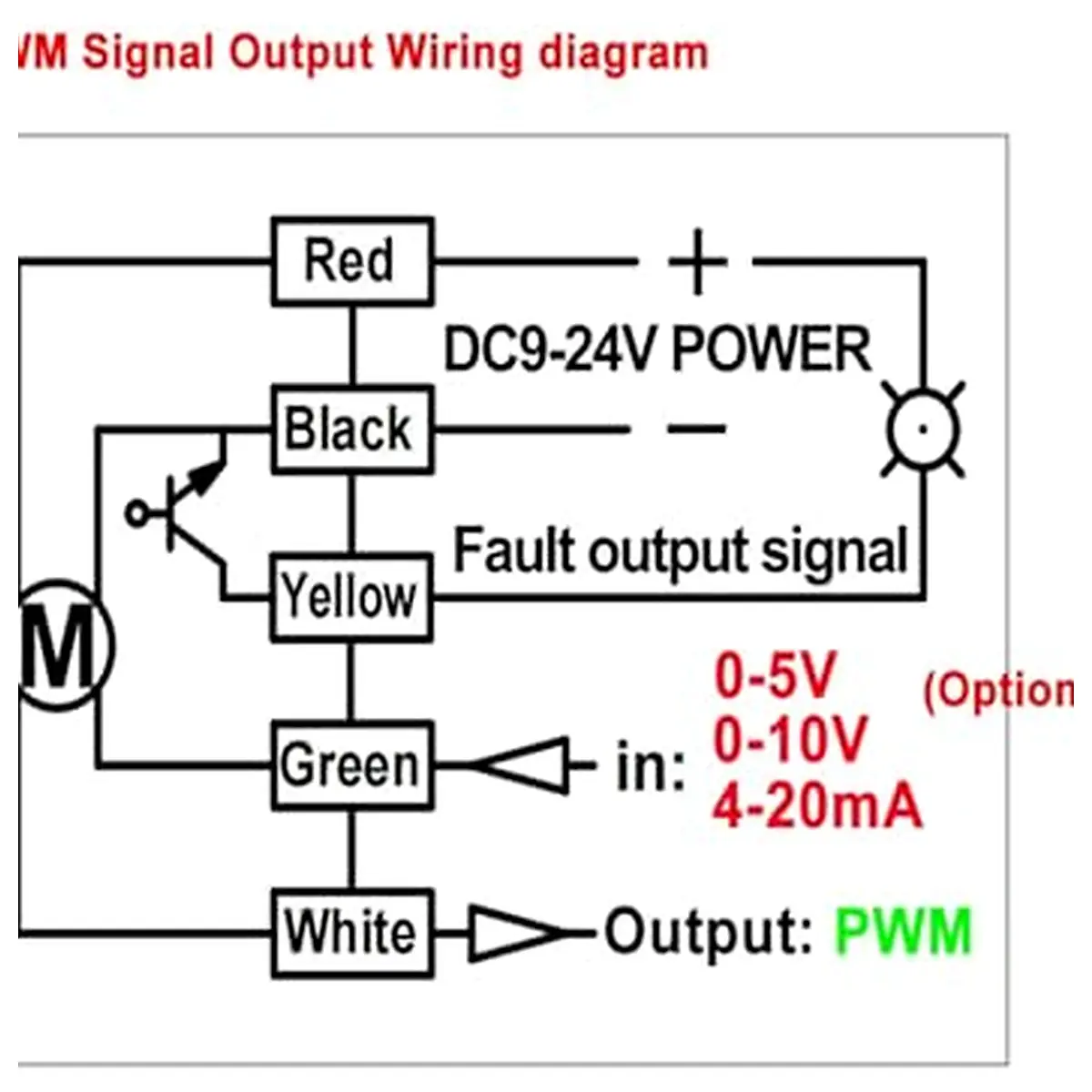

Solenoid valve ball valve Valves Proportional valve 0 10V 4 20mA controller 1 RD connect DC9 24V positive 2 BK connect DC9 24V 4 20mA 0 5V 0 10V negative 3 GR connect position input control current control voltage 4 20mA 0 5V 0 10V 4 YW connect LED light between 9 24V when there is error the light will be ON. 5 WT connect position feedback OC output PWM signal PWM frequency:0 100Hz duty: 5 95% Product Model:TFM8 B2 C Product size:1 4" DN8 Valve Thread: BSP or NPT Optional Valve Body Material:Brass Working Voltage:DC9V 24V Control Signal: 0 5V 0 10V 4 20mA Optional Position: Any position Angel Eurro: 1.6 Degree Open close Time:7 Sec Locked rotor delay time: 2 4 sec Wiring Control Methods: 5 wires Maximum Working Pressure:1.0MPa
