TFM25 S2 C Proportional Valve 2 Way Brass 1 DN25 0 5V 0 10V 4 20mA Regulating Valve DC9 24V 5 Wires for HVAC Water Control Bsp, OUTPUT 4 20MA 4MA TO 20MA
★★★★★
(0 reviews)$456.68
✓ In Stock (999 available)
1
Product Description

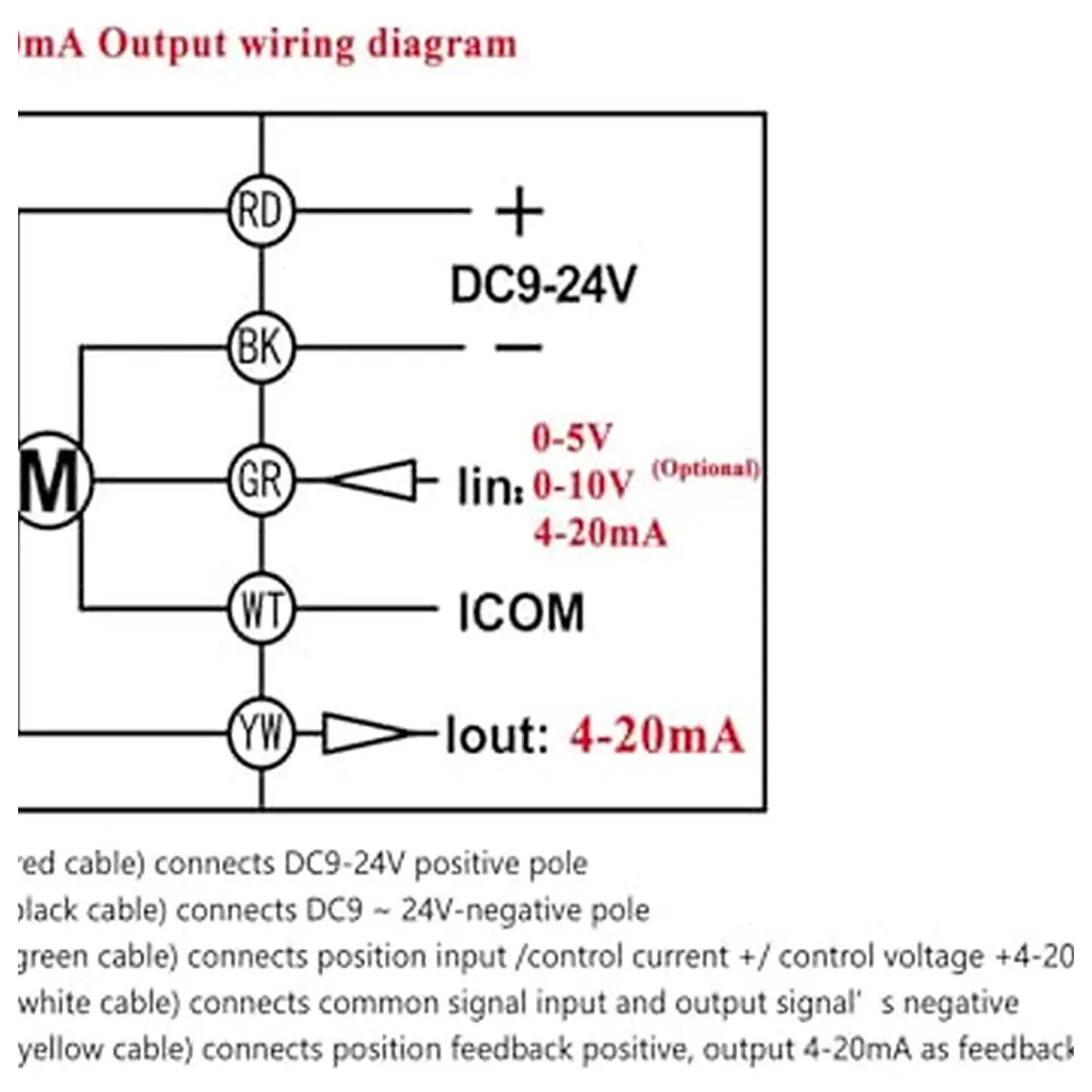

solenoid valve Valves Proportional valve 0 10V 4 20mA controller 1 RD connect DC9 24V positive 2 BK connect DC9 24V 4 20mA 0 5V 0 10V negative 3 GR connect position input control current control voltage 4 20mA 0 5V 0 10V 4 YW connect LED light between 9 24V when there is error the light will be ON. 5 WT connect position feedback OC output PWM signal PWM frequency:0 100Hz duty: 5 95% Product Model:TFM25 S2 C Product size:1" DN25 Valve Thread: BSP or NPT Optional Valve Body Material:Stainless Steel 304 Working Voltage:DC9 24V Control Signal: 0 5V 0 10V 4 20mA Optional
SKU: OUTPUT-4-20MA-4MA-TO-20MA-qw7mg4
