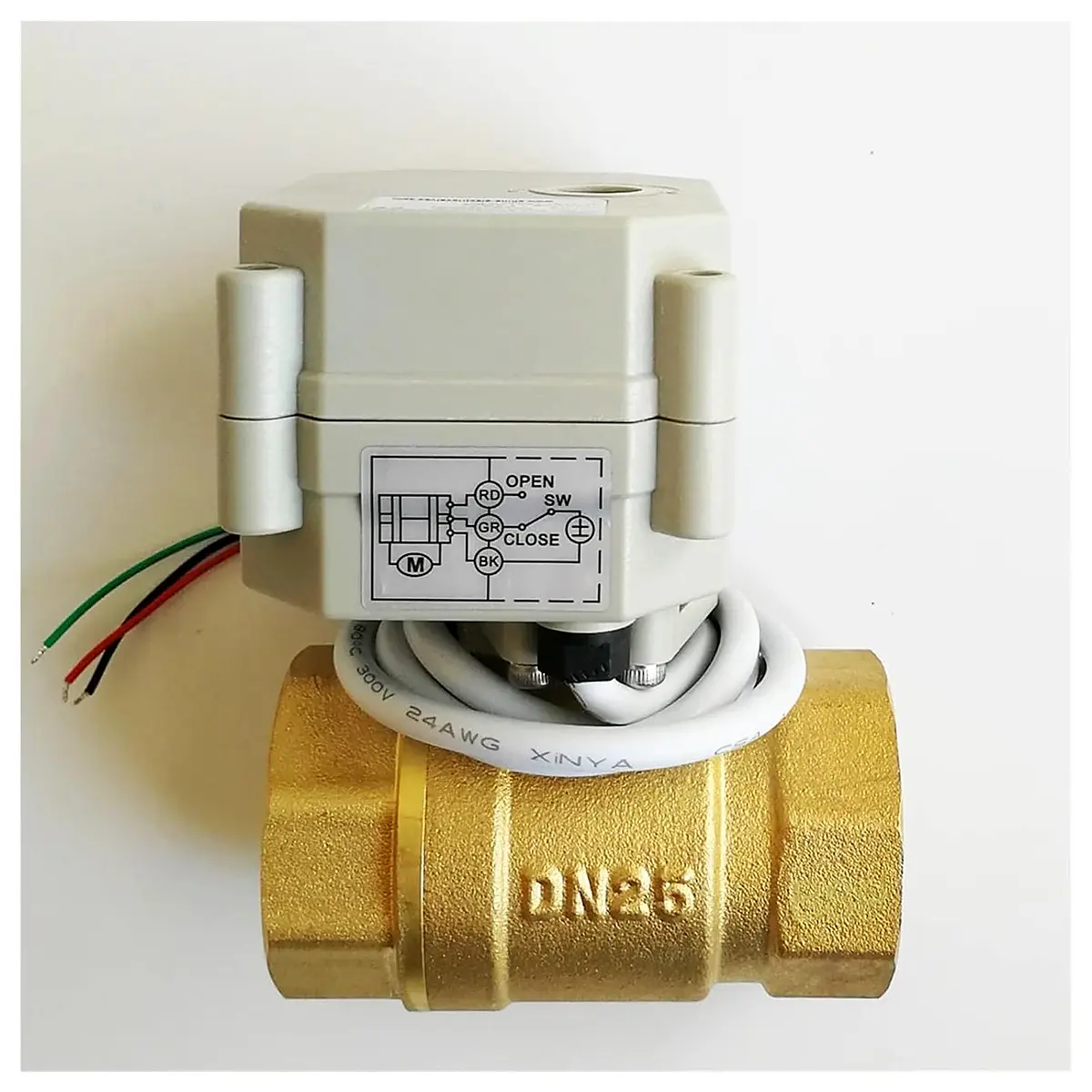

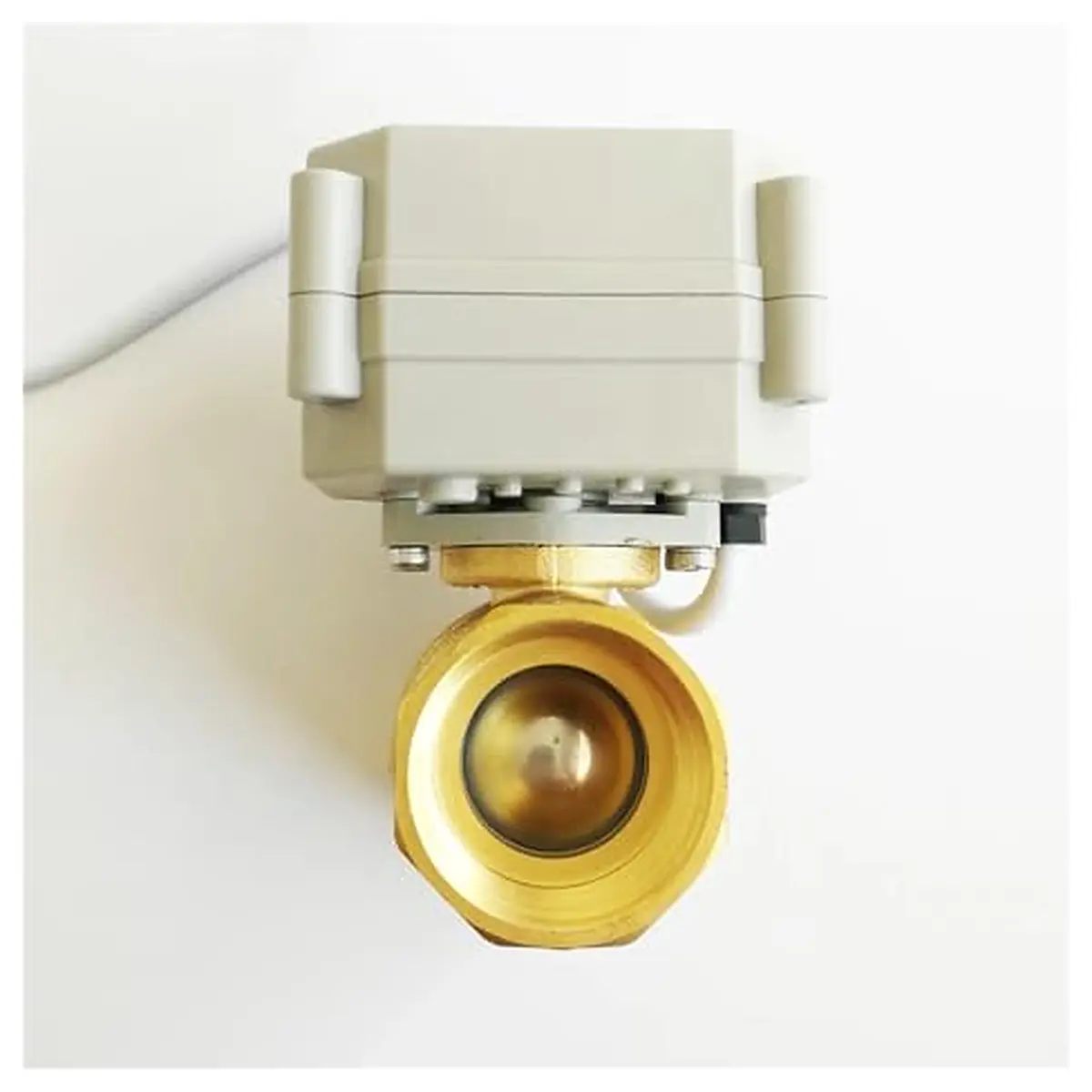

TFM25 B2 C New 2 Way Brass 1 Modulating Valve DC9V 24V 0 5V 0 10V or 4 20mA 5 Wires for Water Proportional Control NPT, Output PWM 4mA to 20mA

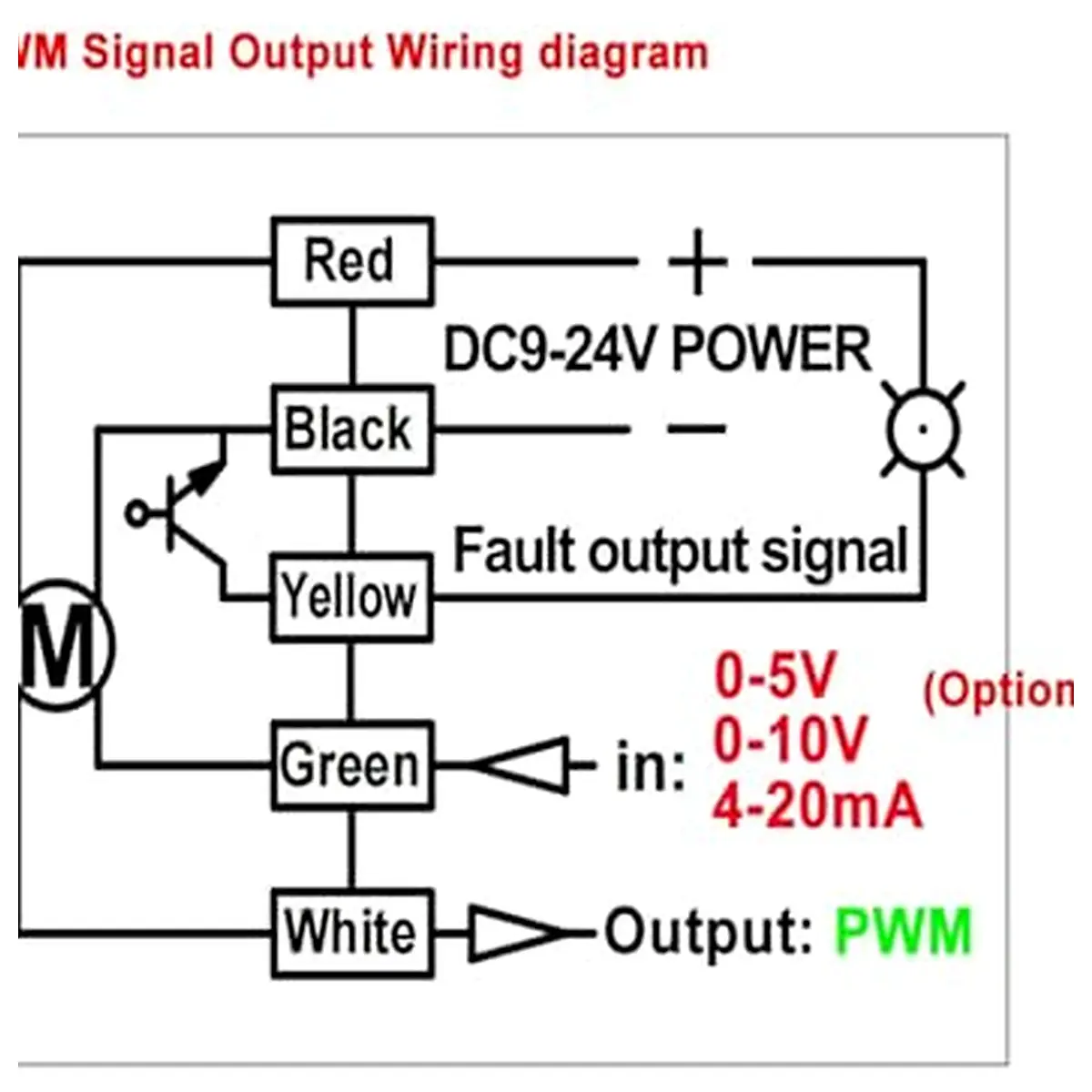

solenoid valve ValvesProportional valve 0 5V 0 10V 4 20mA controller1 RD connect DC9 24V positive2 BK connect DC9 24V 4 20mA 0 5V 0 10V negative3 GR connect position input control current control voltage 4 20mA 0 5V 0 10V 4 YW connect LED light between 9 24V when there is error the light will be ON.5 WT connect position feedback OC output PWM signalPWM frequency:0 100Hz duty: 5 95%Product Model:TFM25 B2 CProduct size:1" DN25Valve Thread: BSP or NPT Optional Working Voltage:DC9 24V DC9V DC12V DC24V Control Signal: 0 5V 0 10V 4 20mA Optional Position: Any positionAngel Eurro: 1.6 DegreeOpen close Time:7 SecLocked rotor delay time: 2 4 secWiring Control Methods: 5 wires control with feedback signalMaximum Working Pressure:1.0MPa
