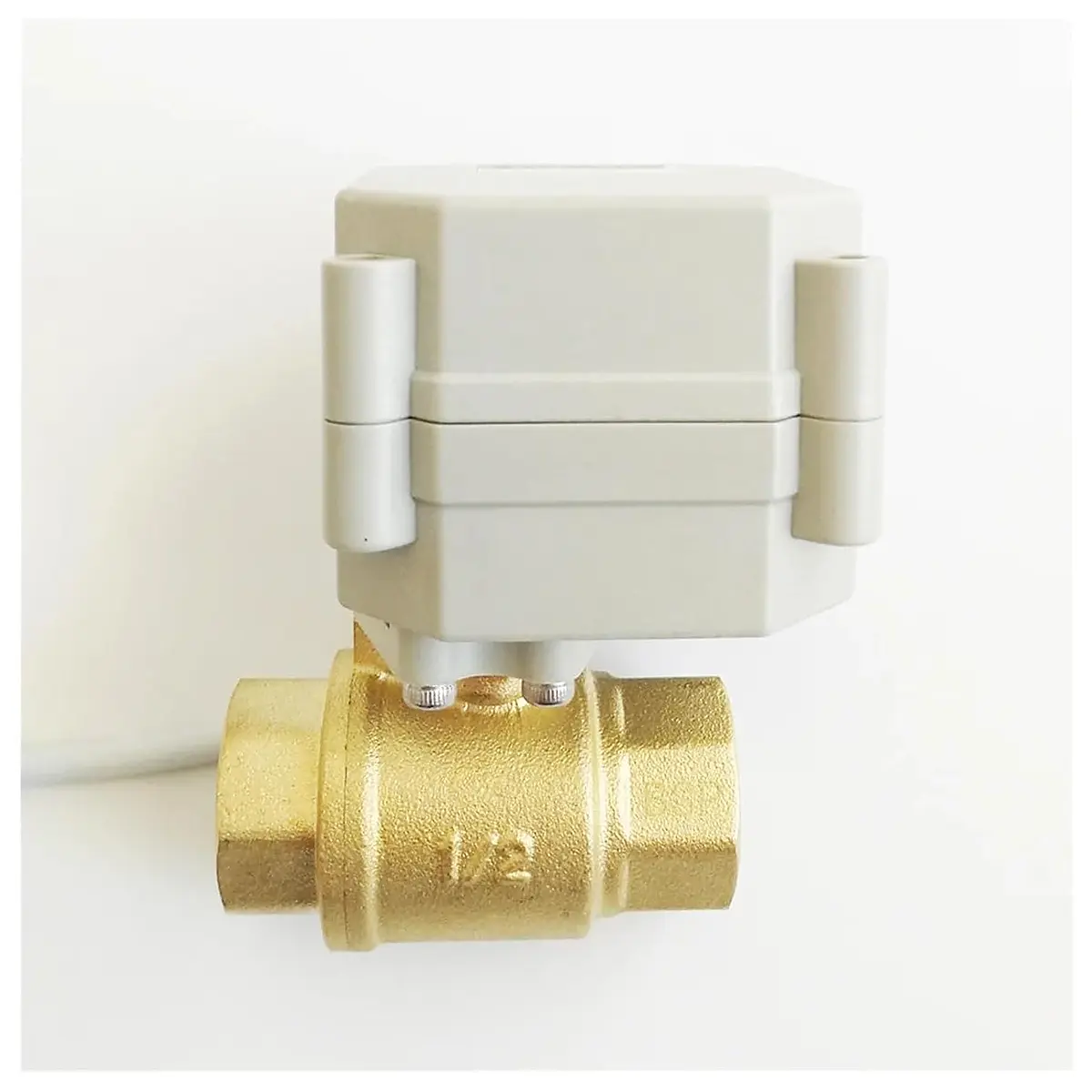

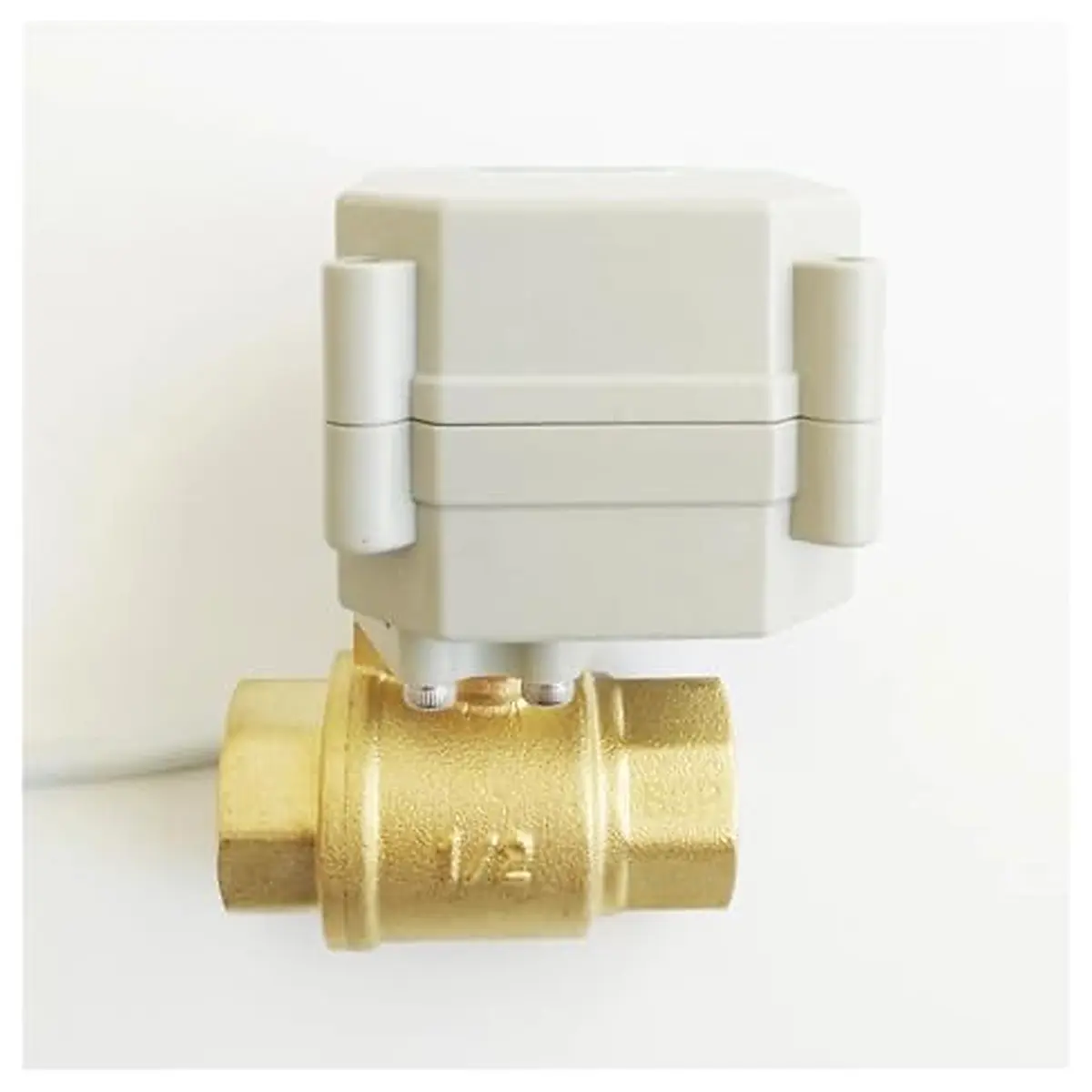

TFM15 B2 C Signal 0 5V 0 10V or 4 20mA Brass 1 2 Proportional Valve DC9 24V 2 Way DN15 for Water Modulating Control NPT, OUTPUT 4 20MA 0V TO 10V

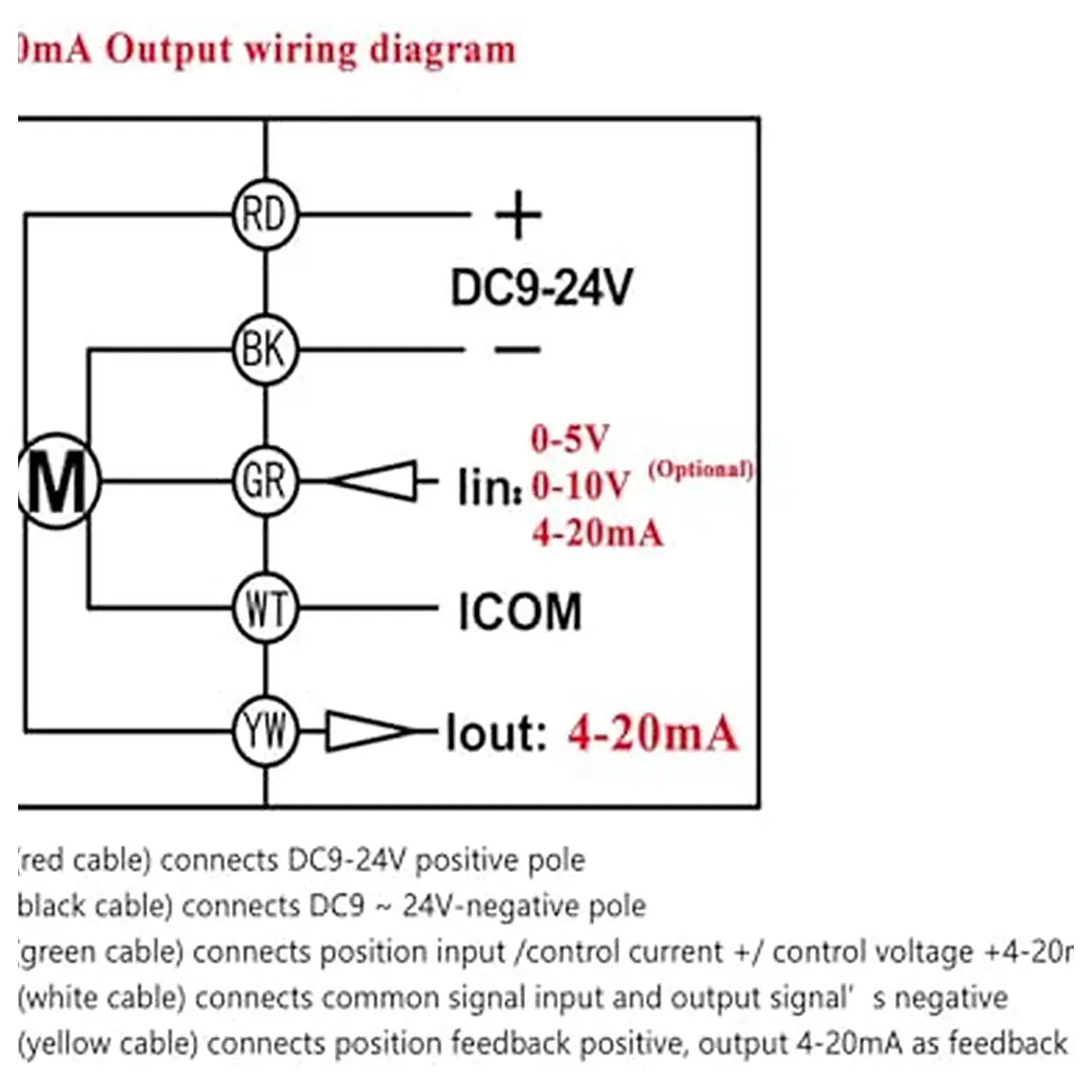

Solenoid Valves Valves Proportional valve 0 10V 4 20mA controller 1 RD connect DC9 24V positive 2 BK connect DC9 24V 4 20mA 0 5V 0 10V negative 3 GR connect position input control current control voltage 4 20mA 0 5V 0 10V 4 YW connect LED light between 9 24V when there is error the light will be ON. 5 WT connect position feedback OC output PWM signal PWM frequency:0 100Hz duty: 5 95% Product Model:TFM15 B2 C Product size:1 2" DN15 Working Voltage:DC9 24V Control Signal: 0 5V 0 10V 4 20mA Optional Position: Any position Angel Eurro: 1.6 Degree Open close Time:7Sec Locked rotor delay time: 2 4 sec Wiring Control Methods: 5 wires Maximum Working Pressure:1.0MPa Circulation Medium:Fluid Air Working Current:500MA Actuator Rotation90 Max. Torque Force:2N.M Cable Length:0.5m
