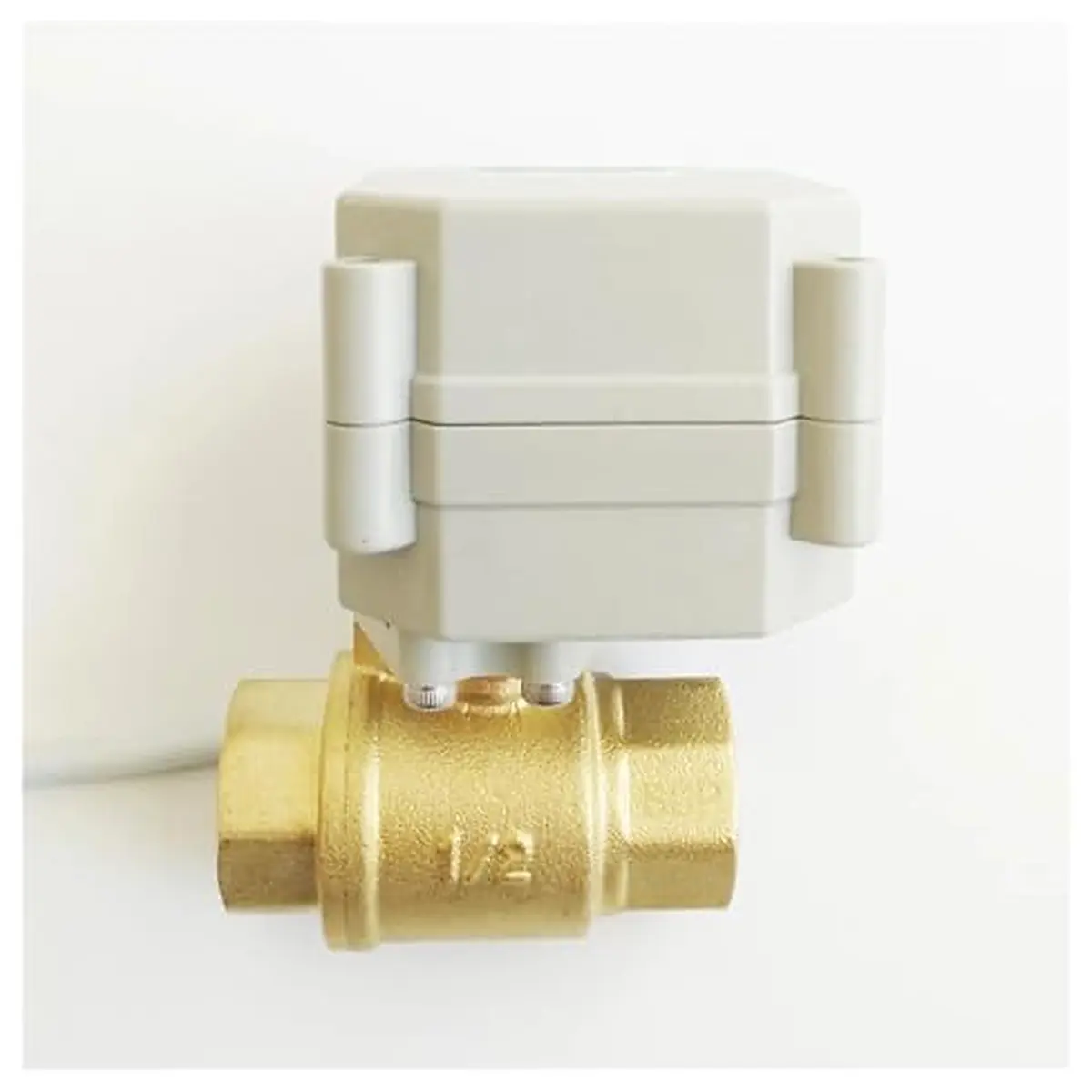

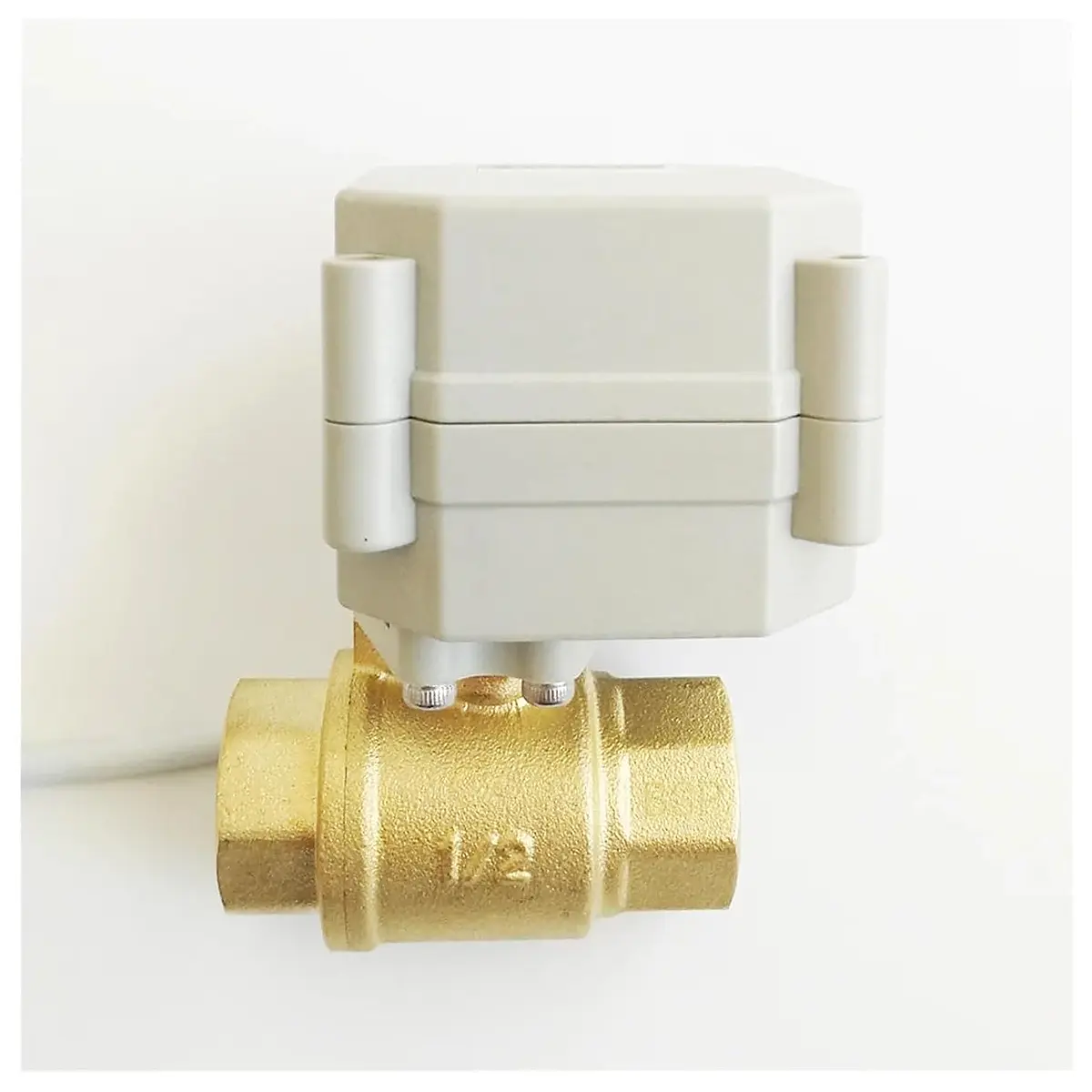

TFM15 B2 C Signal 0 5V 0 10V or 4 20mA Brass 1 2 Proportional Valve DC9 24V 2 Way DN15 for Water Modulating Control Bsp, Output PWM 4MA to 20MA

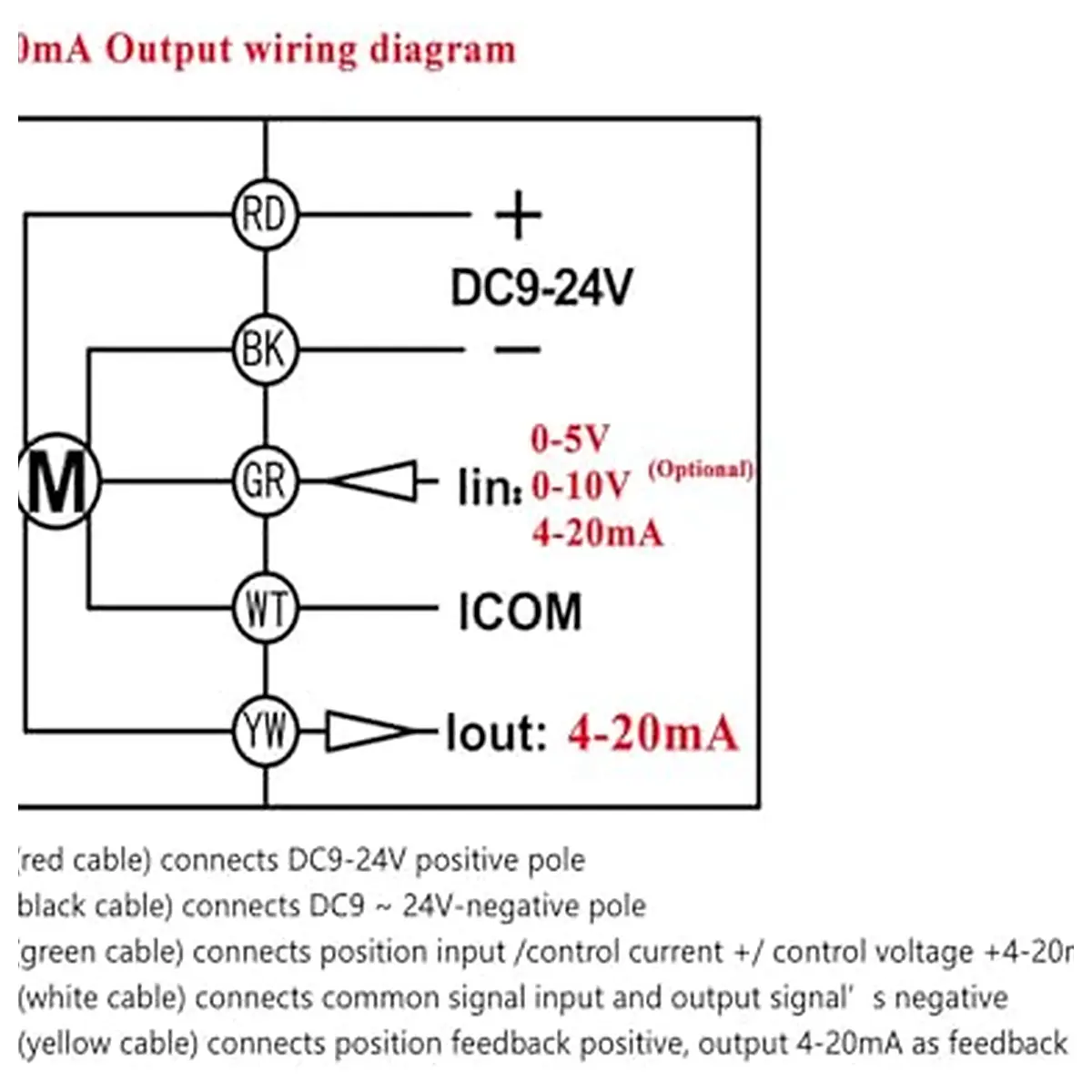

solenoid valve ValvesProportional valve 0 10V 4 20mA controller1 RD connect DC9 24V positive2 BK connect DC9 24V 4 20mA 0 5V 0 10V negative3 GR connect position input control current control voltage 4 20mA 0 5V 0 10V 4 YW connect LED light between 9 24V when there is error the light will be ON.5 WT connect position feedback OC output PWM signalPWM frequency:0 100Hz duty: 5 95%Product Model:TFM15 B2 CProduct size:1 2" DN15Working Voltage:DC9 24VControl Signal: 0 5V 0 10V 4 20mA Optional Position: Any positionAngel Eurro: 1.6 DegreeOpen close Time:7SecLocked rotor delay time: 2 4 secWiring Control Methods: 5 wiresMaximum Working Pressure:1.0MPaCirculation Medium:Fluid AirWorking Current:500MAActuator Rotation90Max. Torque Force:2N.MCable Length:0.5m
