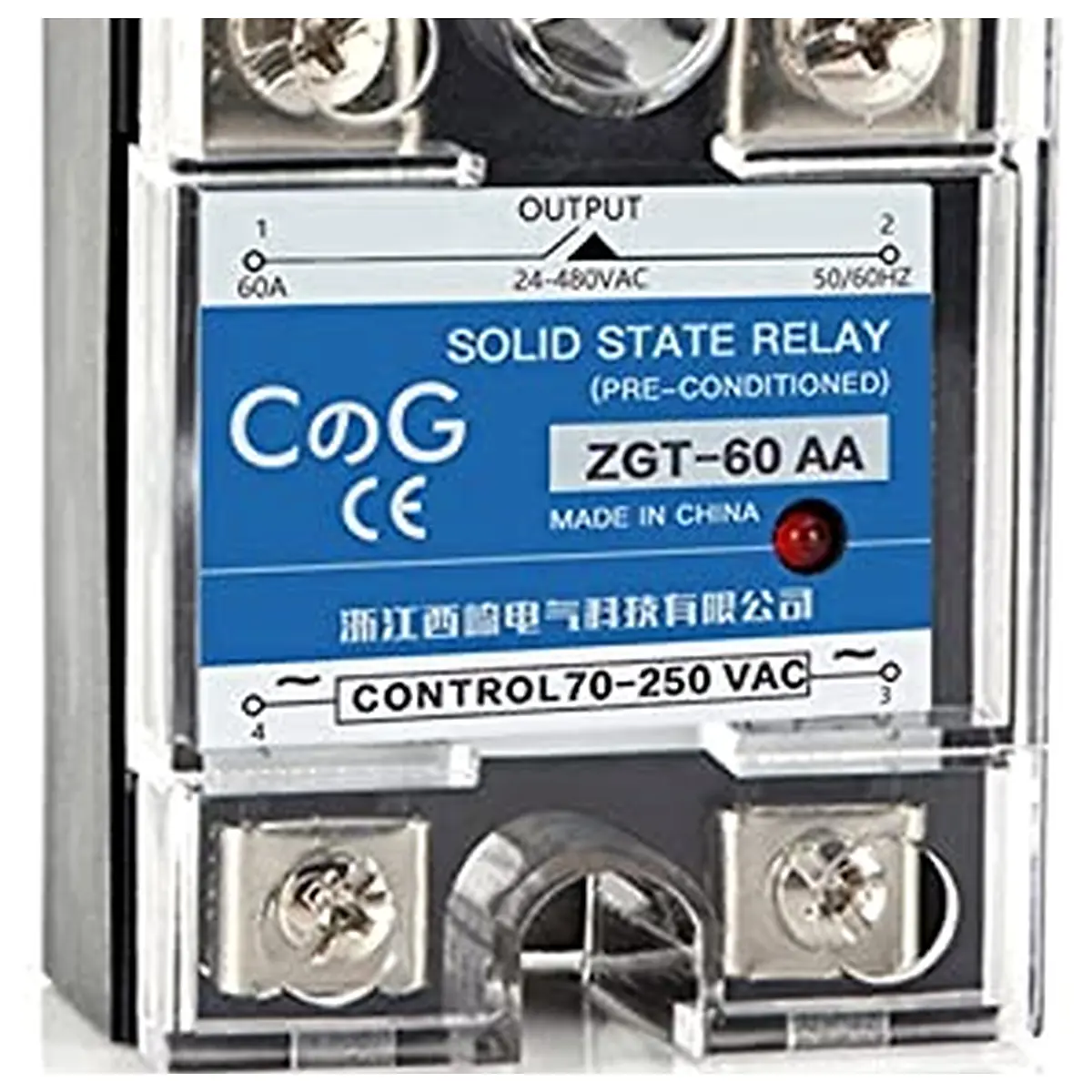

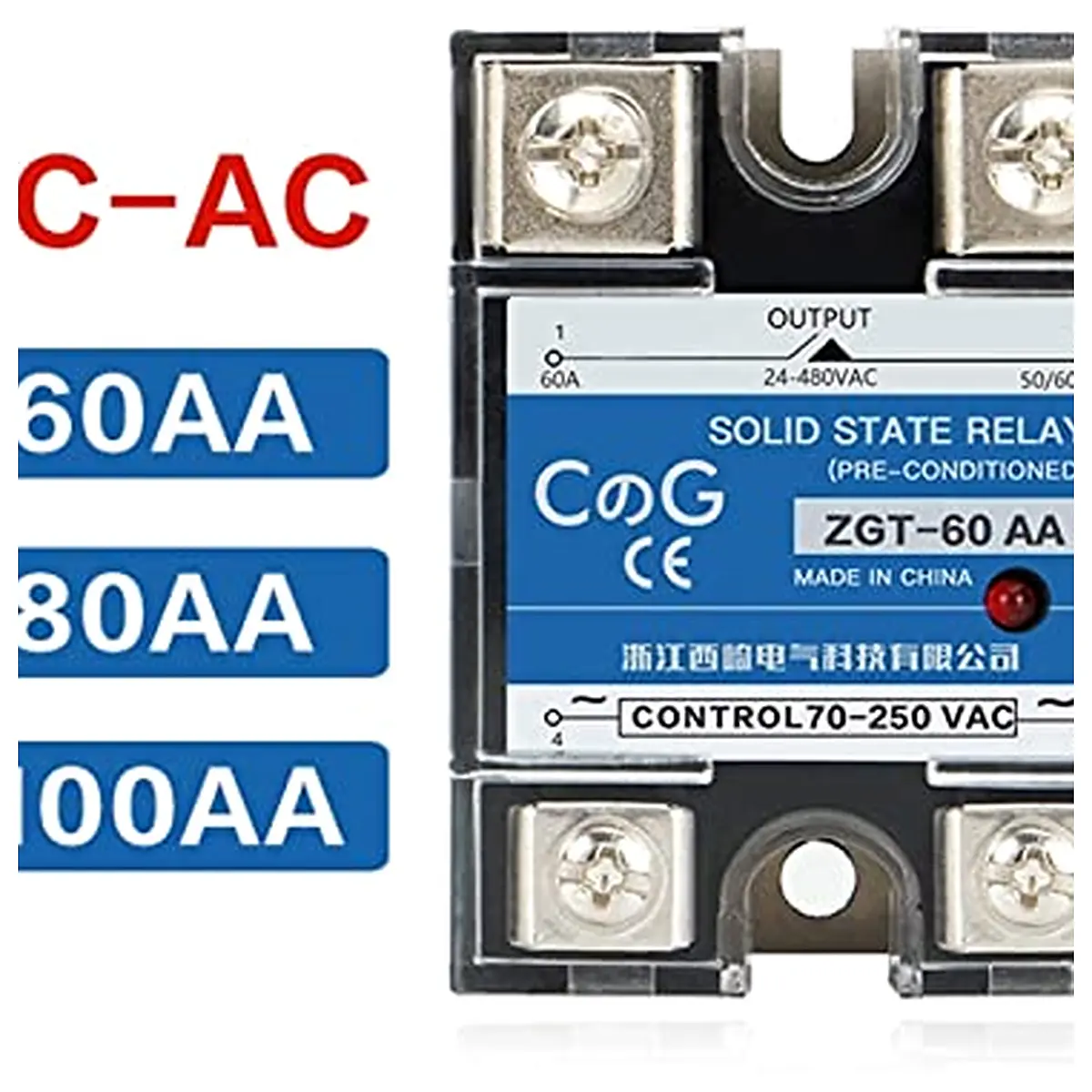

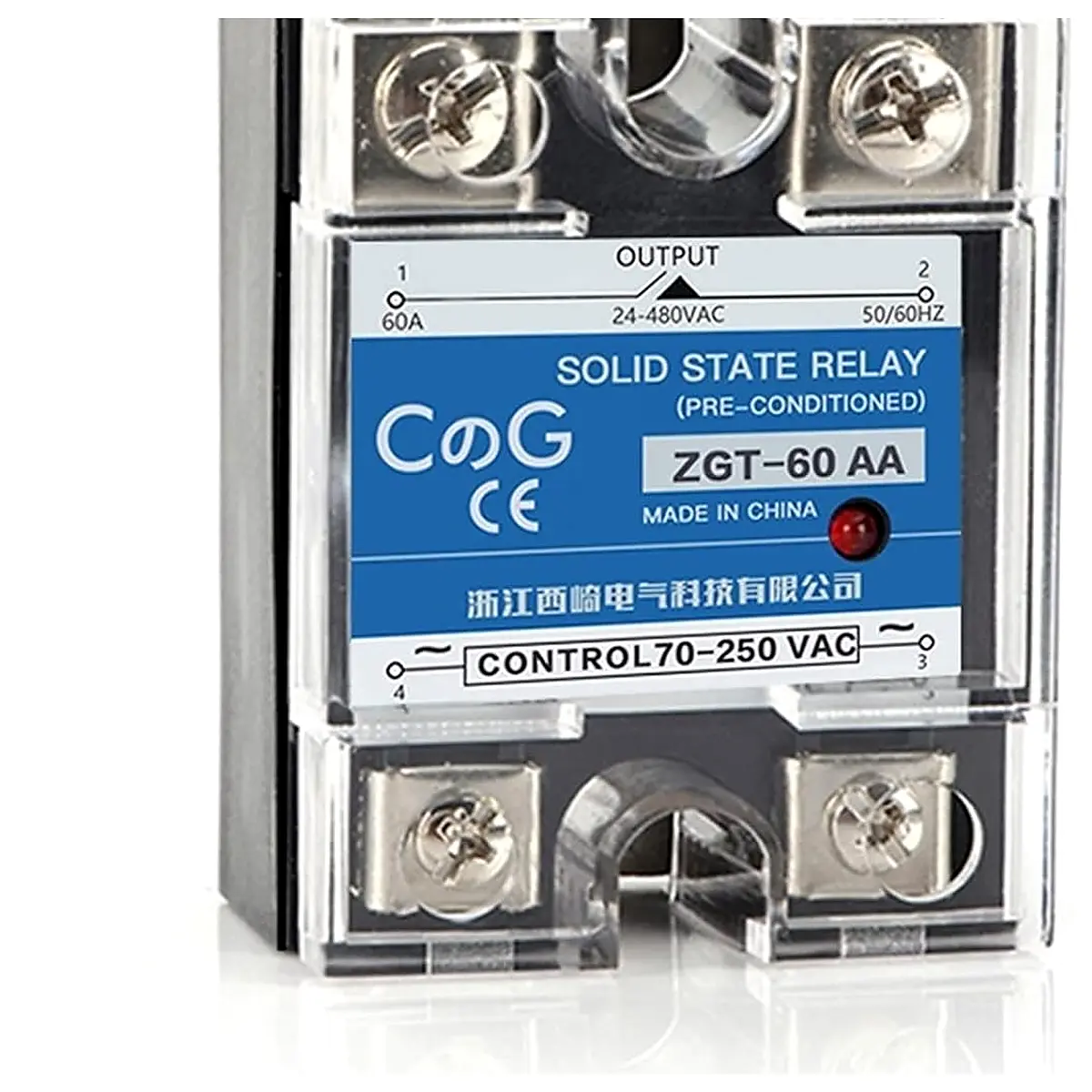

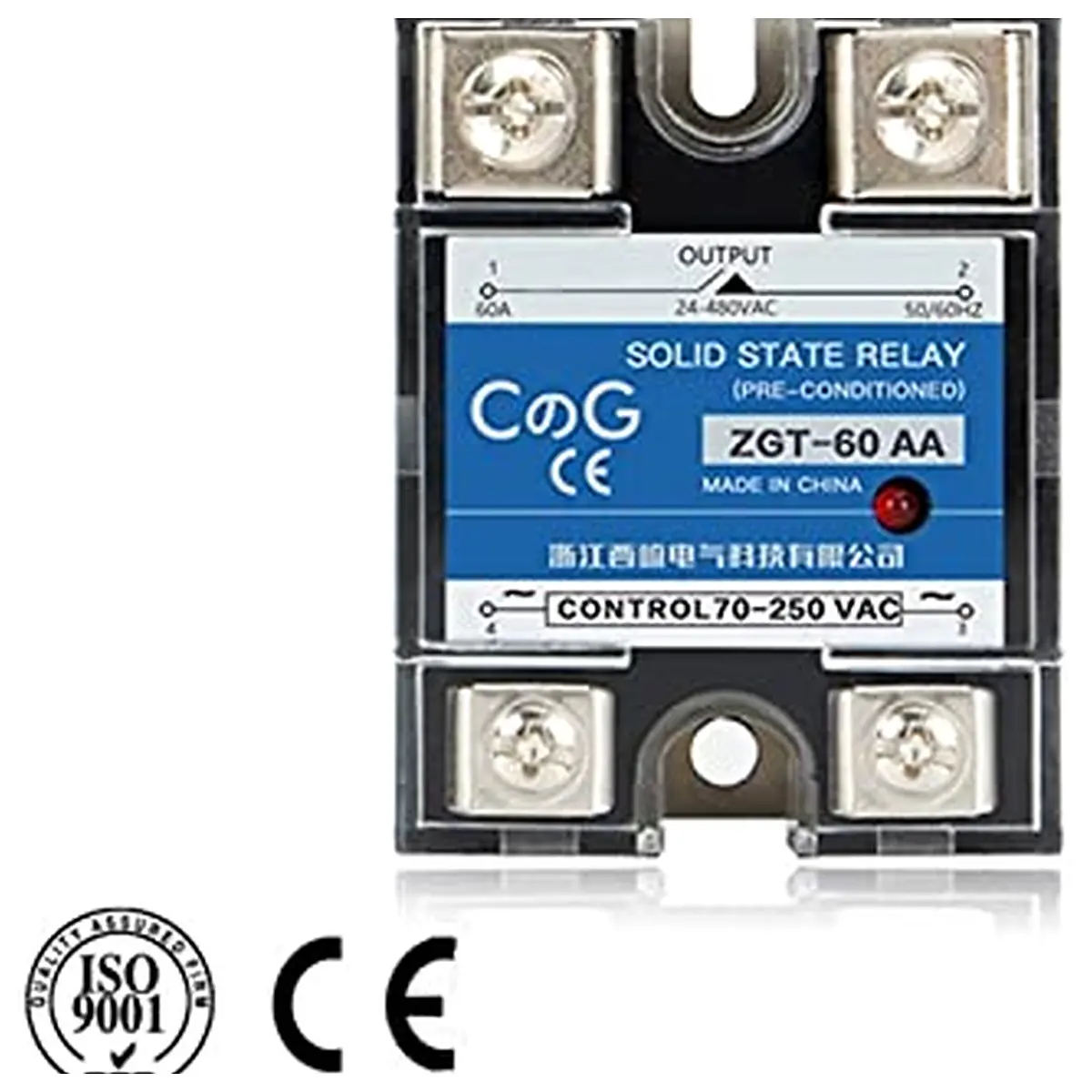

SSR 60AA 80AA 100AA Relay Single Phase AC Control 70 280VAC to 24 480V Heat Sink 60A 80A 100A AA Solid State 100AA

relay STEP1:ChooseacorrectcontrolMode AA ACControlAC DA DCControlAC DD DCControlDC VA ControlandAdjust STEP2:Chooseacorrecttype CurrentofEquipment Ratio CurrentofSSR PS:TheRatiodependonthekindofyourloadingequipment. Resistiveload:70%,Inductiveload:20%,Capacitiveload:10%. STEP3:Chooseasuitableheatsink. DuringtheuseageofSSR,itwillgiveoutalotofheat,soinordertoextendthelifeofyourSSR,pleaseinstallaheatsink,alsoifthecurrentisover60A,thecoolingfanalsorequired. PS:OurHeatSinkinclude2screws forinstallheatsink andapackofthermalcompound isappliedtothebottomoftheSSR NOTICE: The inside of the solid state relay is a semiconductor. A semiconductor switch is a non physical contact switch. if use a multimeter diode or resistor to test ,it always show a high impedance state, multimeter light red . According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
