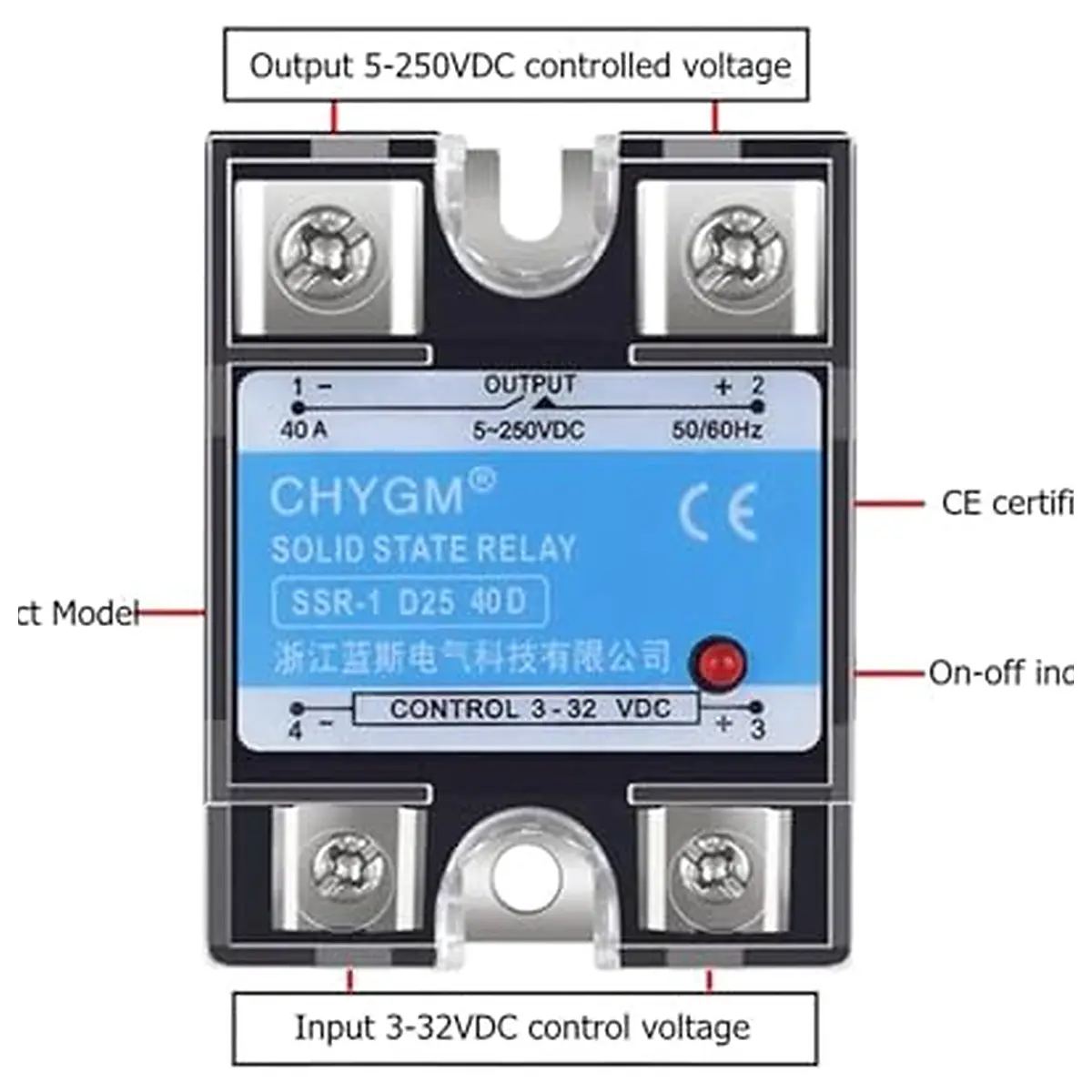

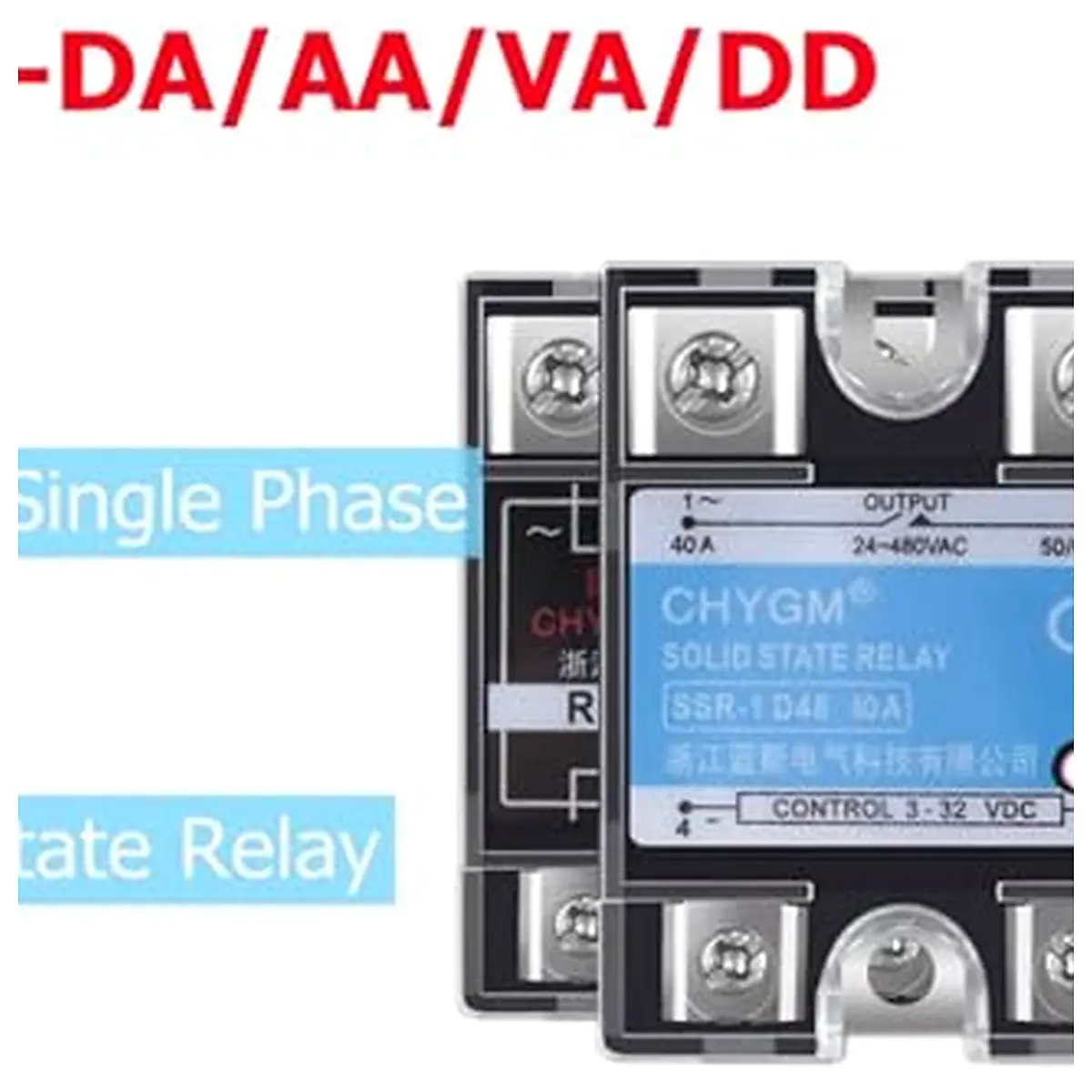

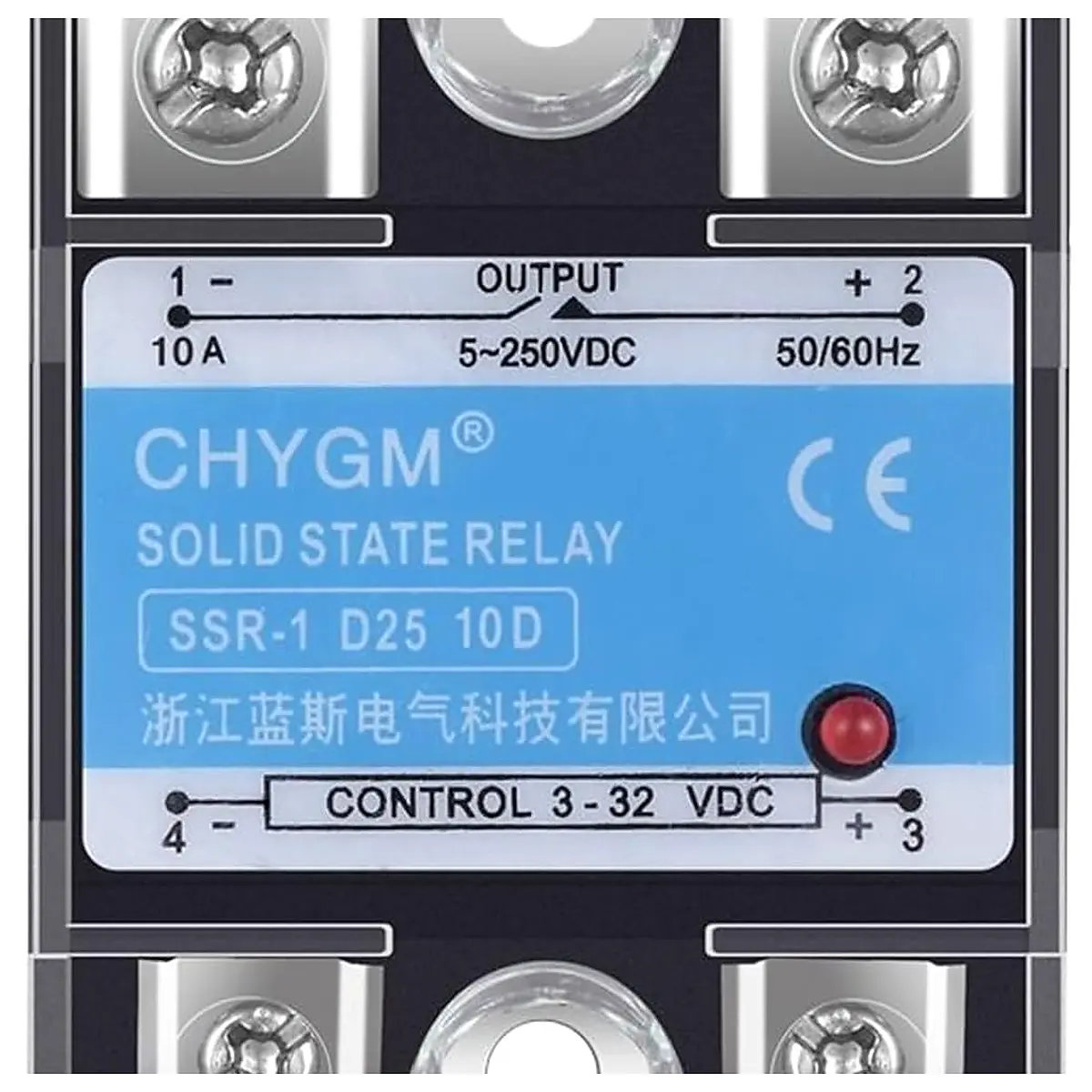

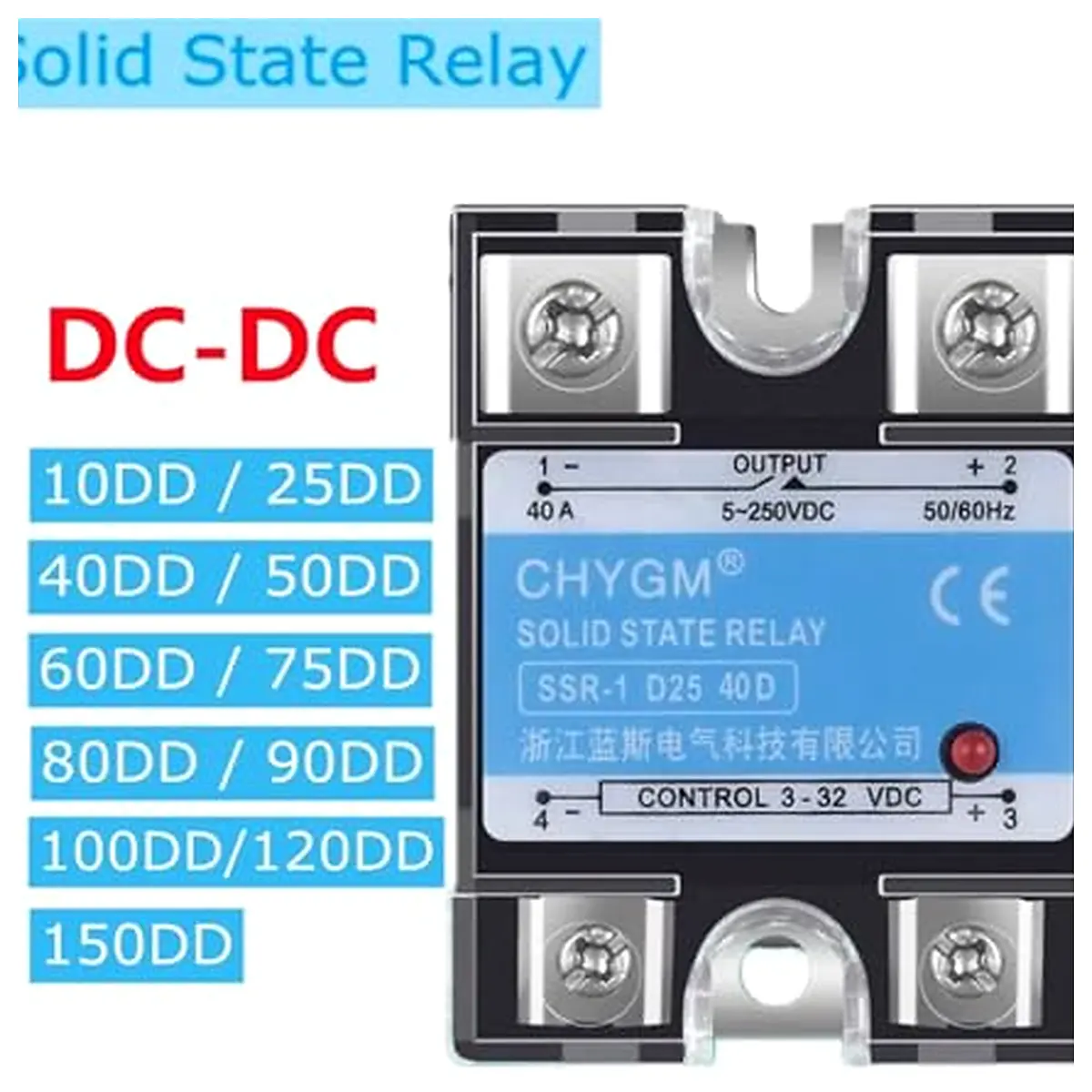

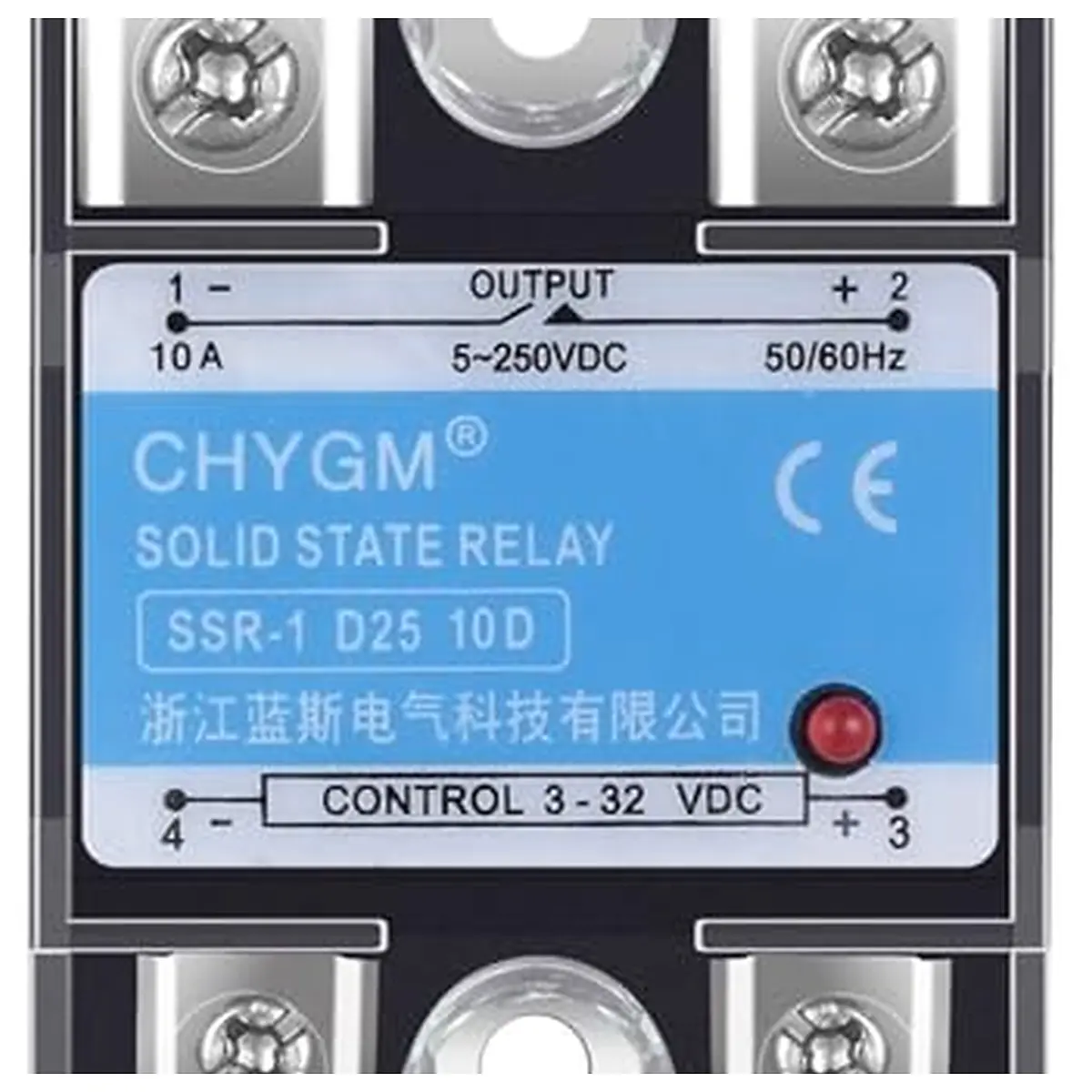

SSR 10DD 25DD 40DD 50DD 60DD 75DD 80DD 90DD DC Control DC SSR Single Phase Solid State Relay 5 220VDC 3 32VDC Solid State Relay SSR 120DD

Solid State Relays STEP 1: select the control method AA: AC control AC DA: DC control AC DD: DC control DC STEP 2: Calculate the current and select the correct model Equipment power Voltage Current Current Coefficient Ratio Current of SSR The coefficient depends on the load type of the loading equipment. Resistive load: 60% Inductive load: 30% STEP 3: Choose the right radiator Package Content: 1 Pcs Power Source : DC Theory : Solid State Relay Protect Feature : Sealed is customized : Yes Usage : General Purpose Contact Load : Low Power Model Number : SSR 10DD 25DD 40DD 80DD 100DD 150DD Model : SSR 1 series Model Number : DC DC Contact Form : Normally open Output current : 10A 120A optional Load voltage : 5 220VDC Control voltage : 3 32VDC On off time : 10MS On state step down : 1.6V Off state leakage current : 5MA Ambient temperature : 30 70
