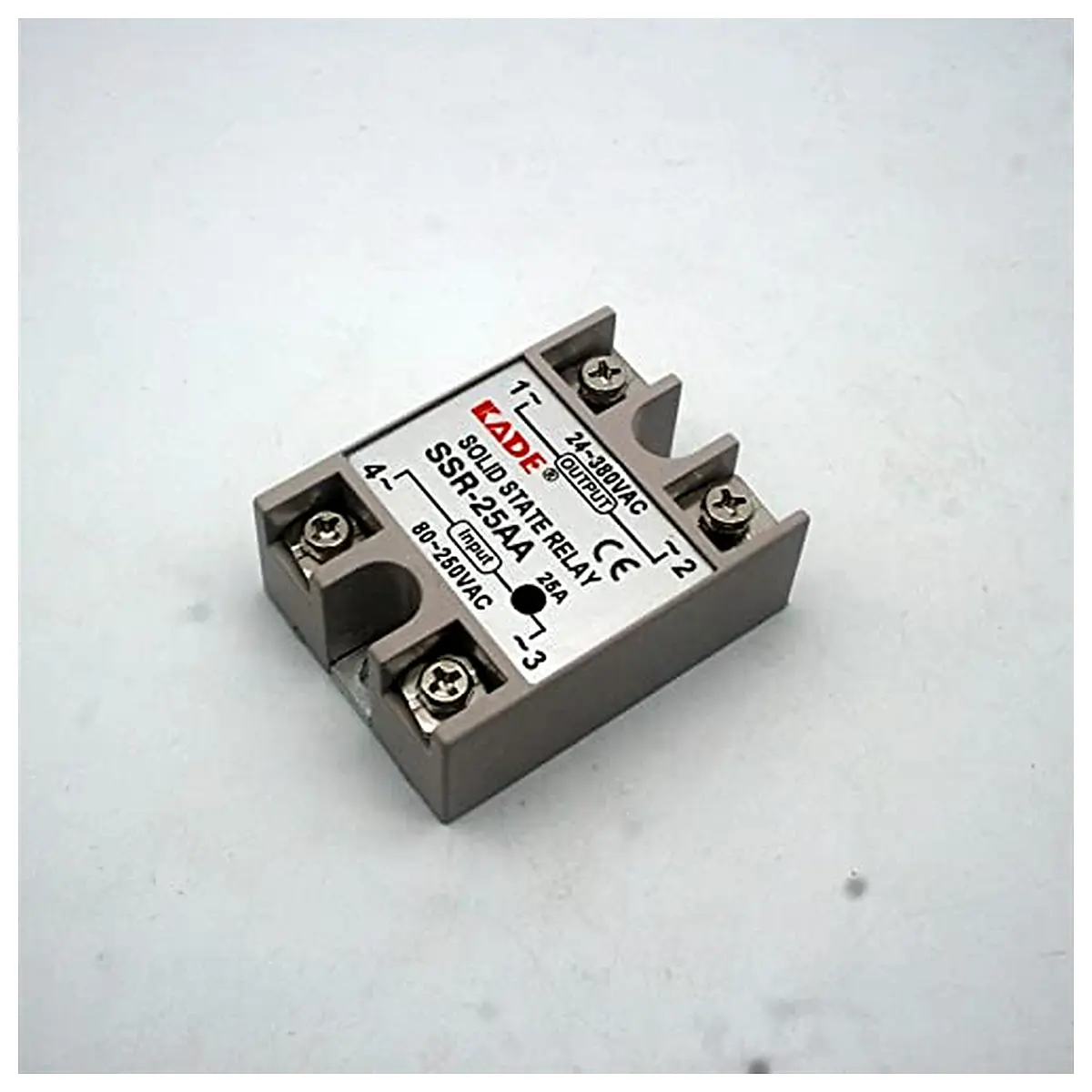

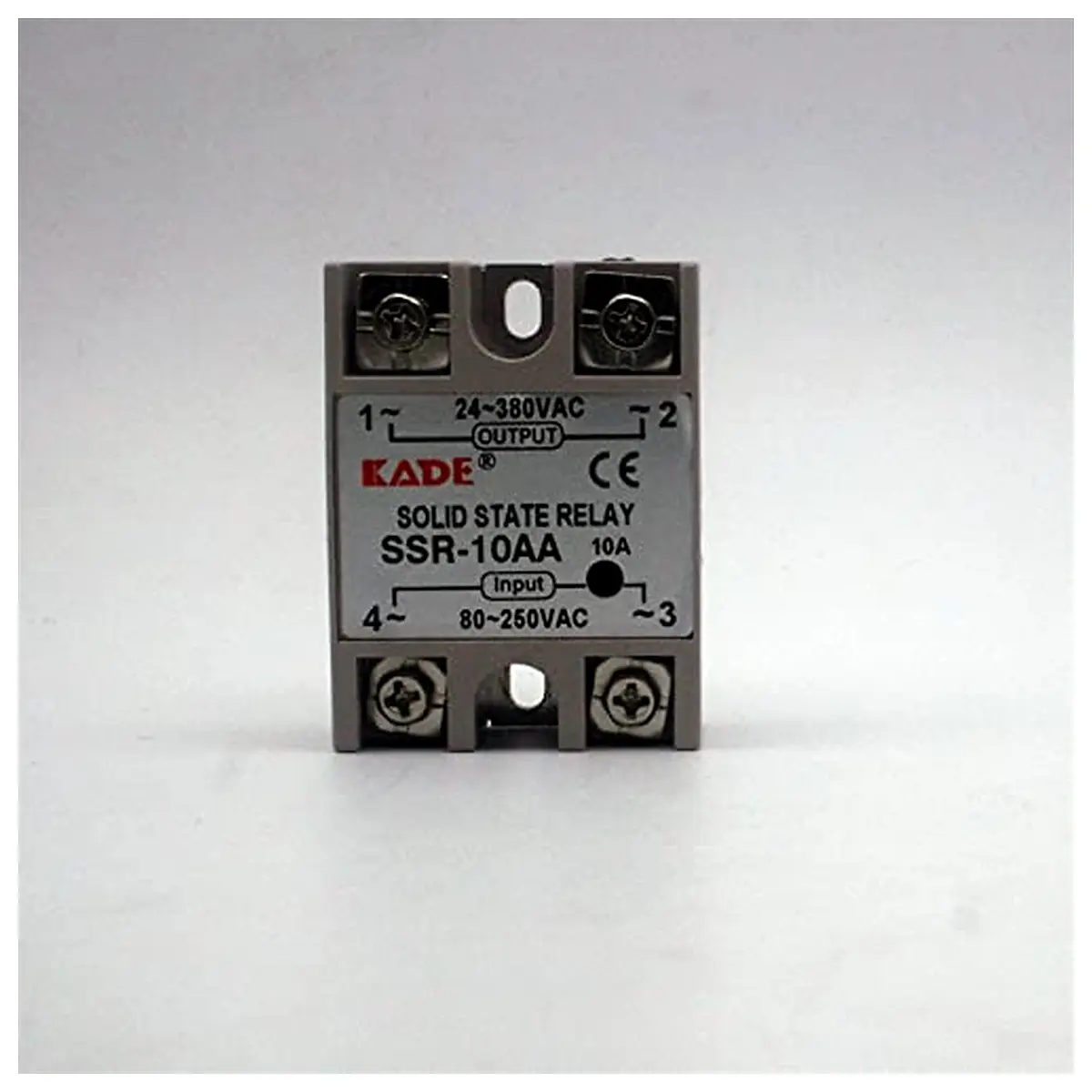

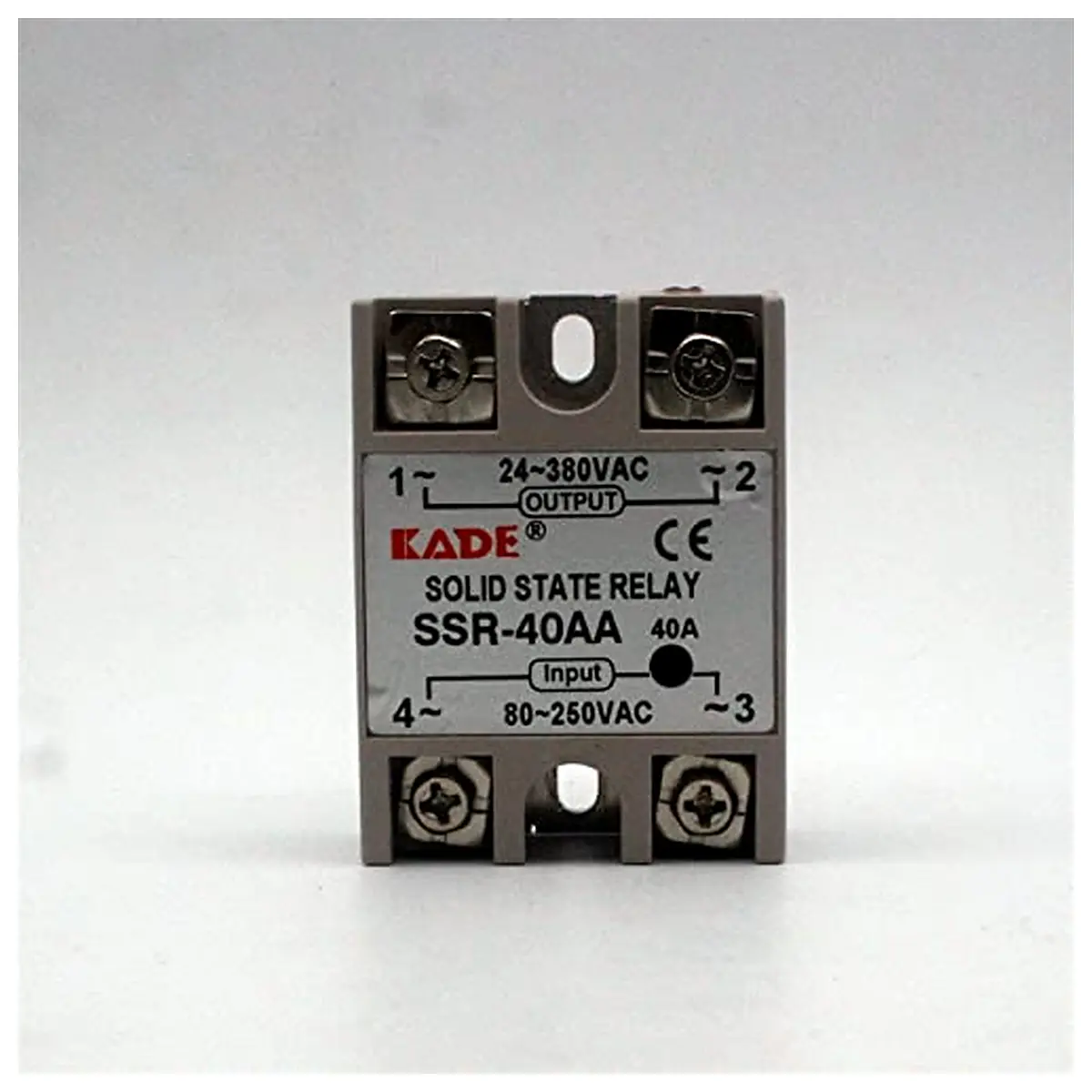

SSR 10AA 25AA 40AA AC Control White Shell Single Phase Solid State Relay 40A

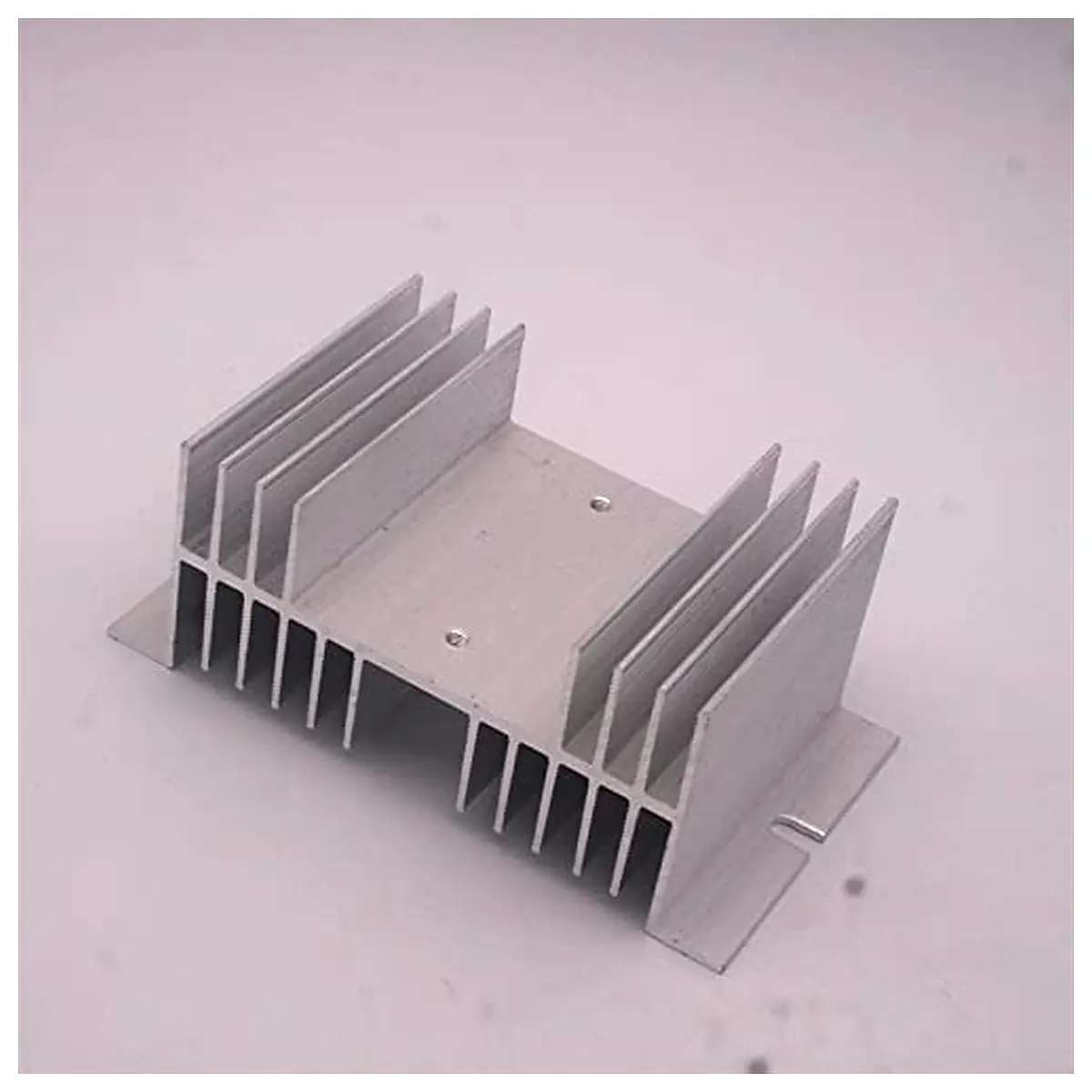

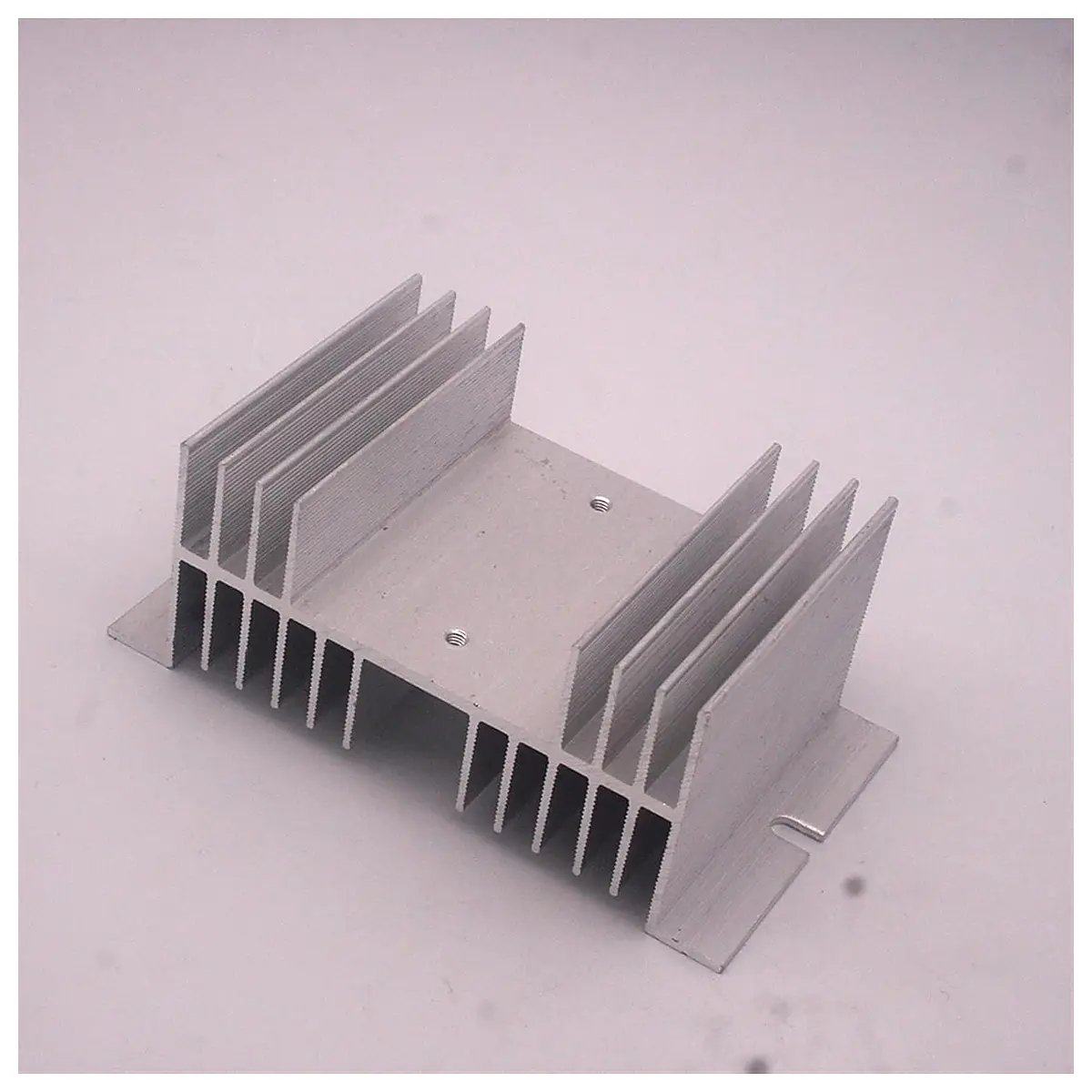

relay Choose a correct type Current of Equipment Ratio Current of SSRPS: The Ratio depend on the kind of your loading equipment. Resistive load :70%, Inductive load:20%,Capacitive load:10%. Resistive loads such as iodine tungsten lamp, incandescent lamp, resistance furnace, oven, electric water heater, etc Inductive loads such as electric fan, fluorescent lamp, high pressure sodium lamp, lamp, metal halide lamp, motor, compressor, relay, AC contactor, transformer, etc Capacitive load, such as capacitor, power compensation cabinet features: new high quality Long service life and high reliability Fast switching to reduce electromagnetic interference High reliability and compact design, providing the greatest simplicity for users Product parameters: Name: single phase solid state relay Input voltage: AC 80 250VAC Output voltage: AC 24 380v Working voltage: 250V Opening voltage: 1V One time: 10ms Leakage current: 2mA Color: white Product size: 60 45 23mm Range: heat sink must be added if it exceeds 10A
