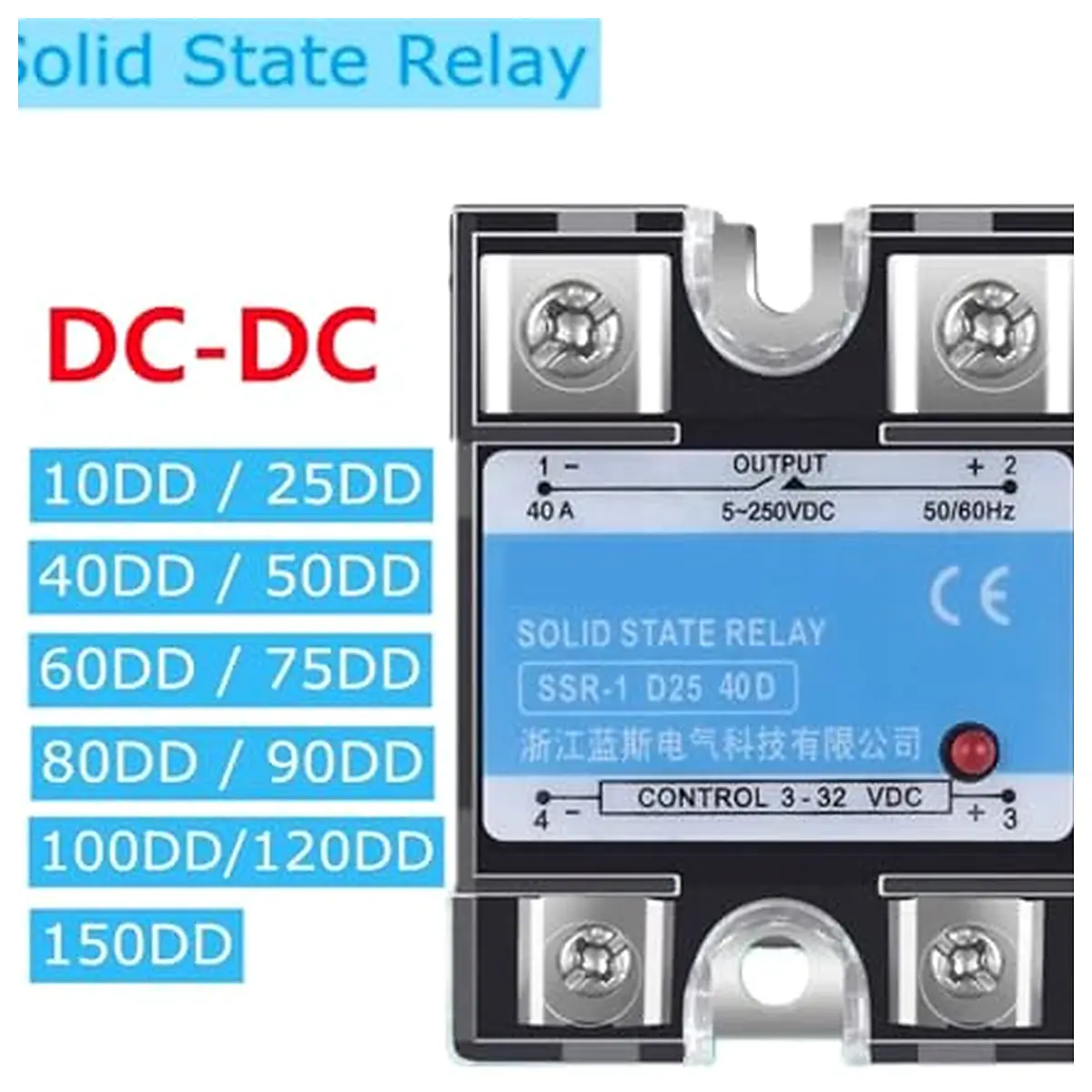

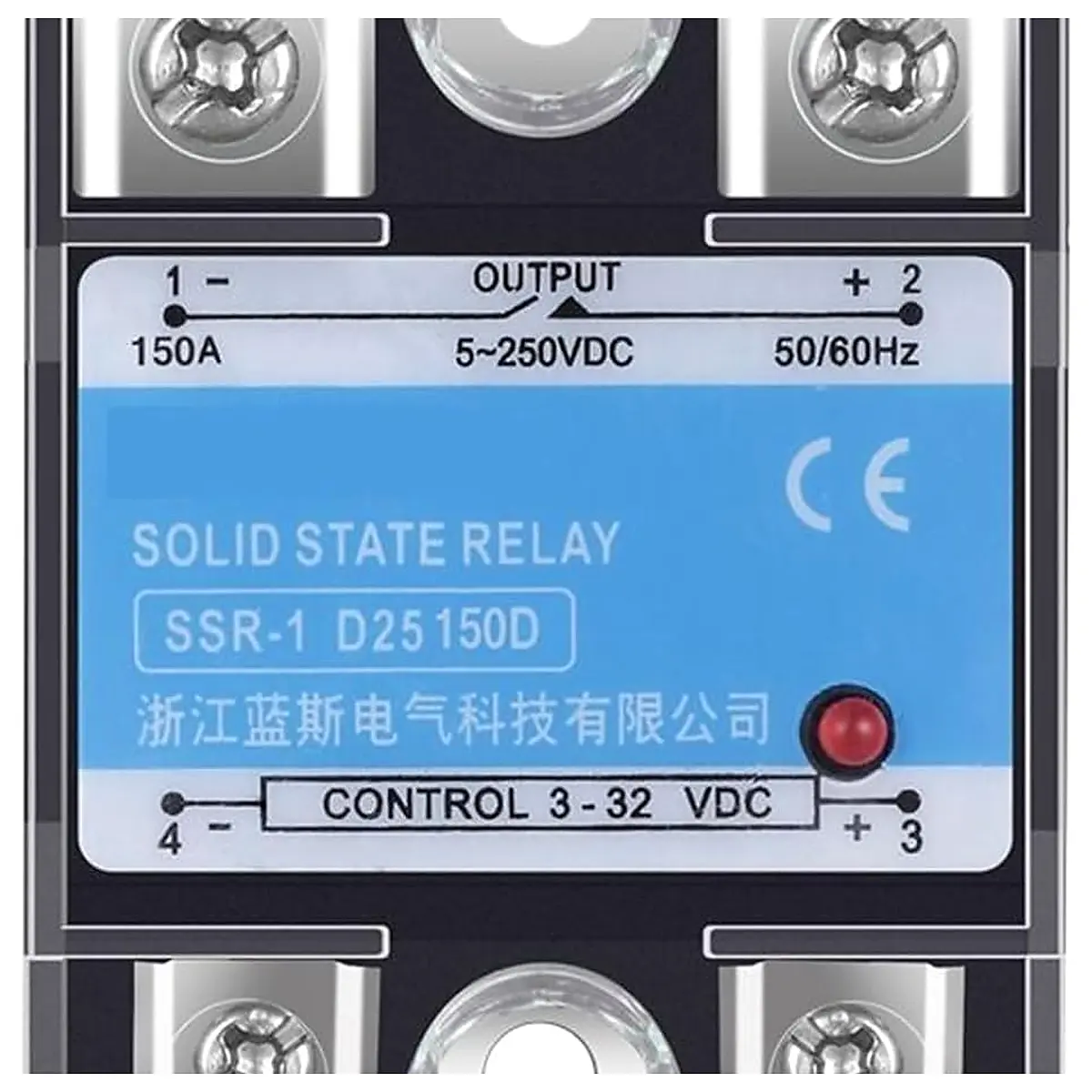

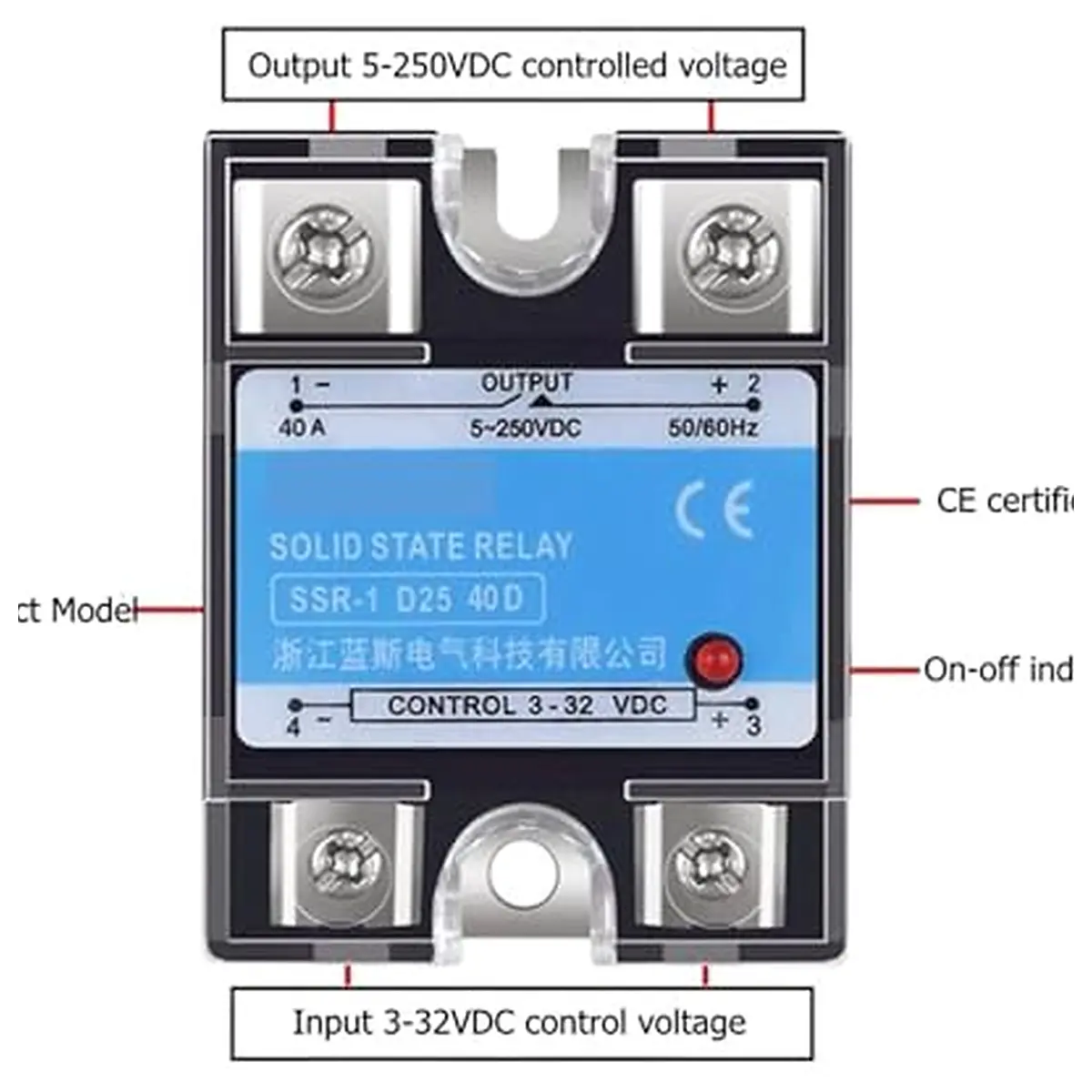

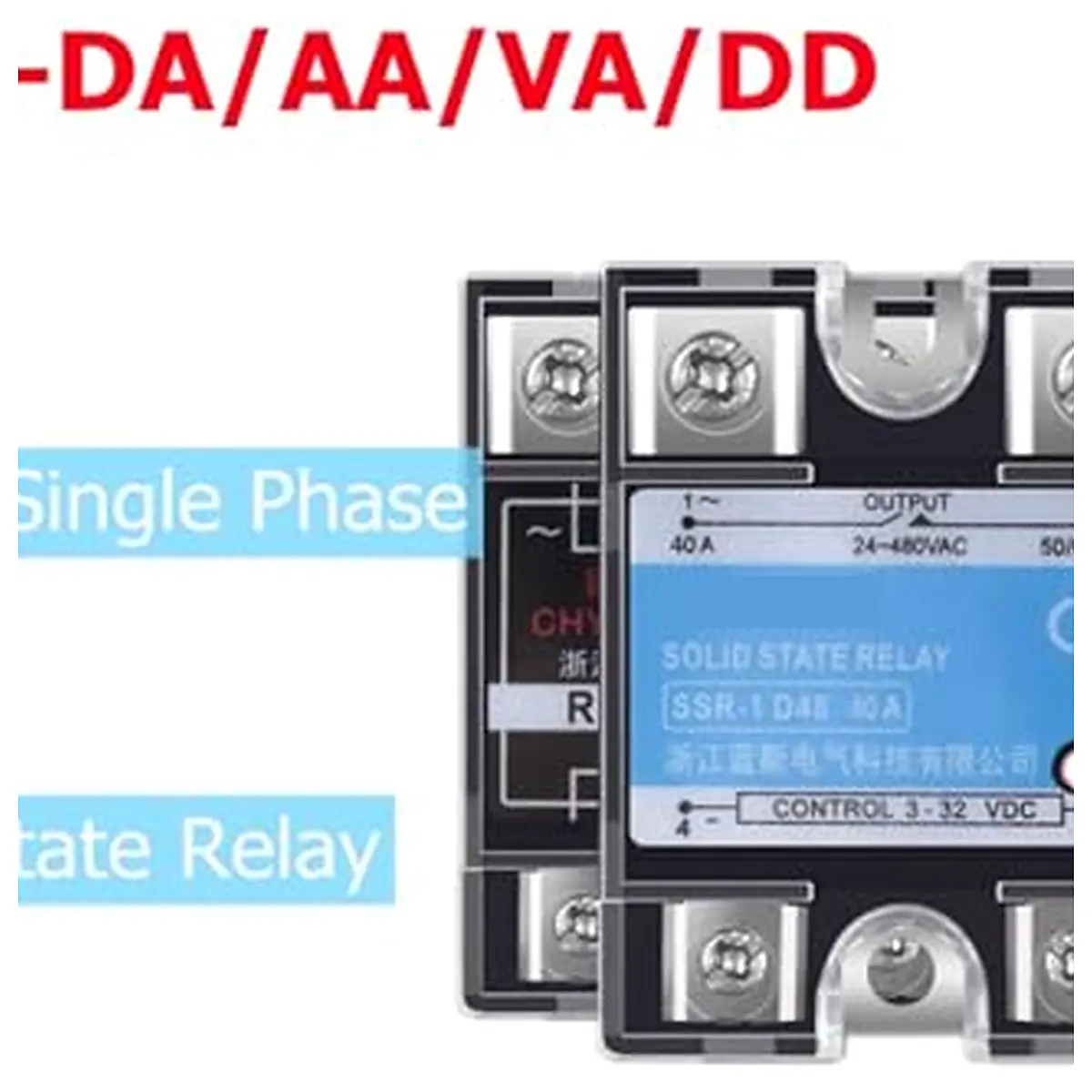

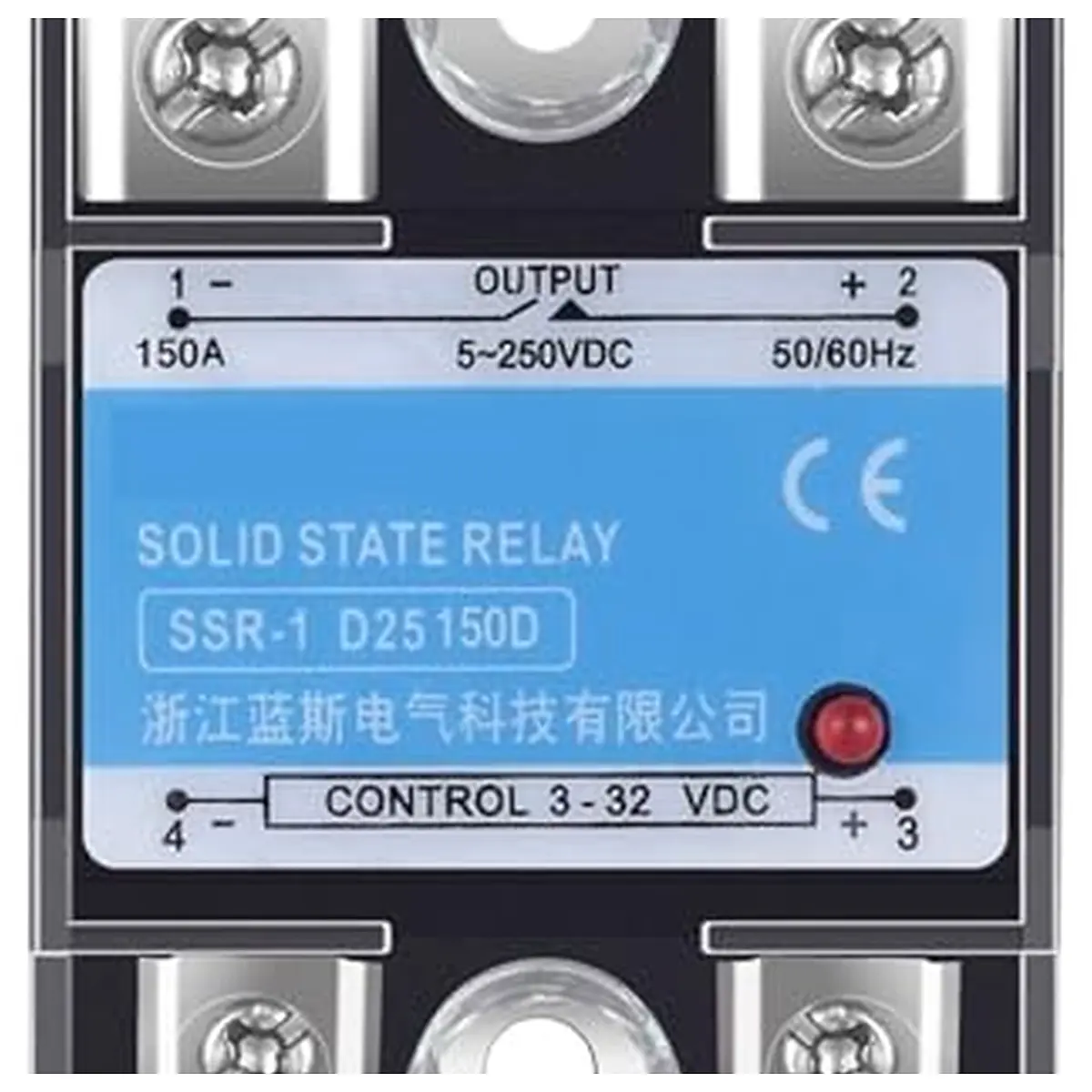

SSR 100DD 120DD 150DD DC Control DC SSR Single Phase Solid State Relay 5 220VDC 3 32VDC Solid State Relay SSR 150DD

Power Source : DC Theory : Solid State Relay Protect Feature : Sealed Usage : General Purpose Contact Load : Low Power Model Number : SSR 100DD 120DD 150DD Model : SSR 1 series Model Number : DC DC Contact Form : Normally open Output current : 10A 120A optional Load voltage : 5 220VDC Control voltage : 3 32VDC On off time : 10MS On state step down : 1.6V Off state leakage current : 5MA Ambient temperature : 30 70
