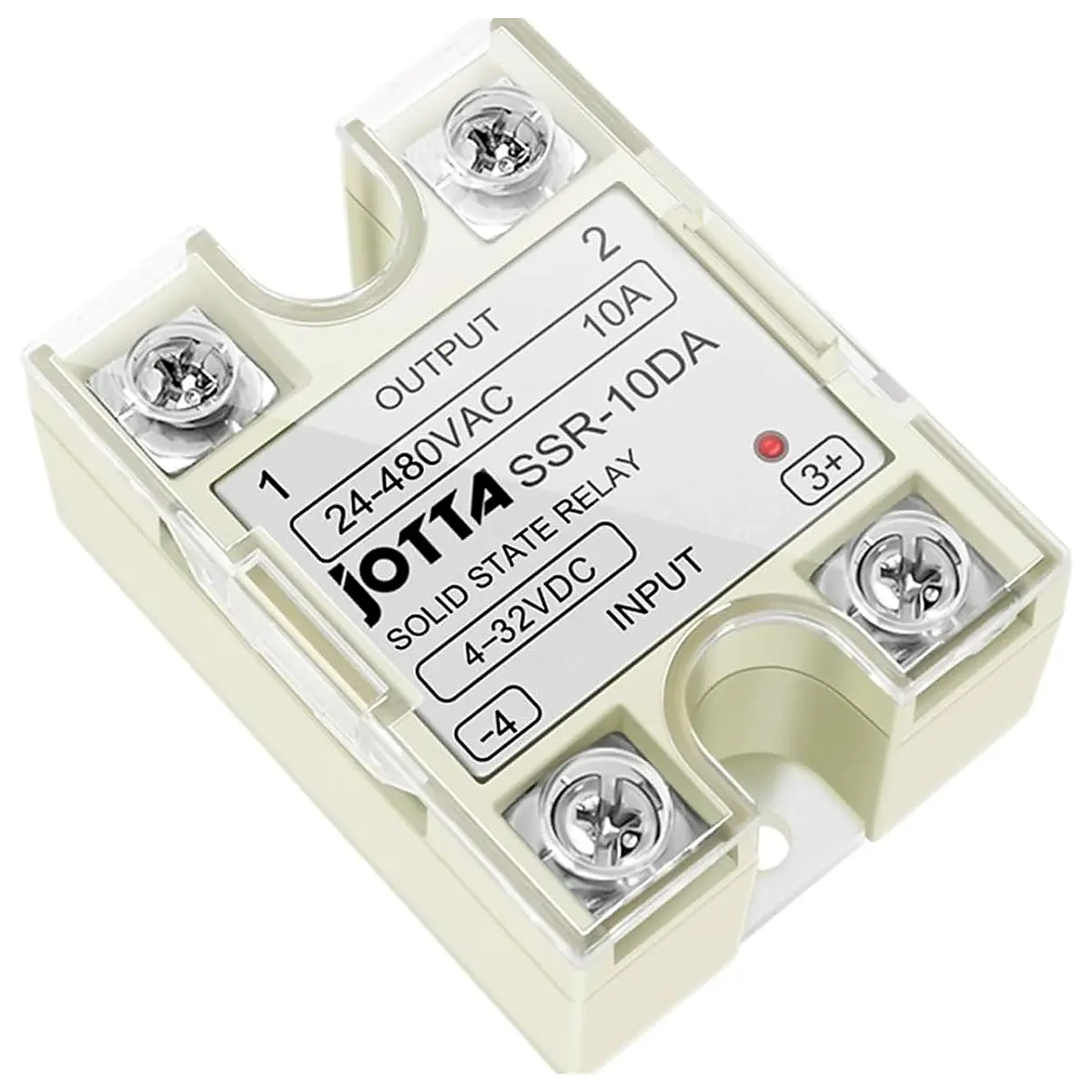

Solid State Relay Module SSR 10DA 25DA 40DA DC Control AC Single Phase with Plastic Cover for PID Temperature Control

Solid State Relays SSR 10DA Single phase Solid state relay Load Current: 10A Load Voltage: 24 380VAC Control Voltage: 3 32VDC Control Current: 3 25MA On Voltage: 1.5VAC Off Leakage Current: 4MA On off Time: 10MS Dielectric Strength: 2500VAC Insulation Resistance: 100M 500VDC Ambient Temperature: 25 75C Work instruction: LED Weight 90g SSR 25DA Single phase Solid state relay Load Current: 25A Load Voltage: 24 380VAC Control Voltage: 3 32VDC Control Current: 3 25MA On Voltage: 1.5VAC Off Leakage Current: 4MA On off Time: 10MS Dielectric Strength: 2500VAC Insulation Resistance: 100M 500VDC Ambient Temperature: 25 75C Work instruction: LED Weight 90g SSR 40DA Single phase Solid state relay Load Current: 40A Load Voltage: 24 380VAC Control Voltage: 3 32VDC Control Current: 3 25MA On Voltage: 1.5VAC Off Leakage Current: 4MA On off Time: 10MS Dielectric Strength: 2500VAC Insulation Resistance: 100M 500VDC Ambient Temperature: 25 75C Work instruction: LED Weight 90g
