Valves & Actuators

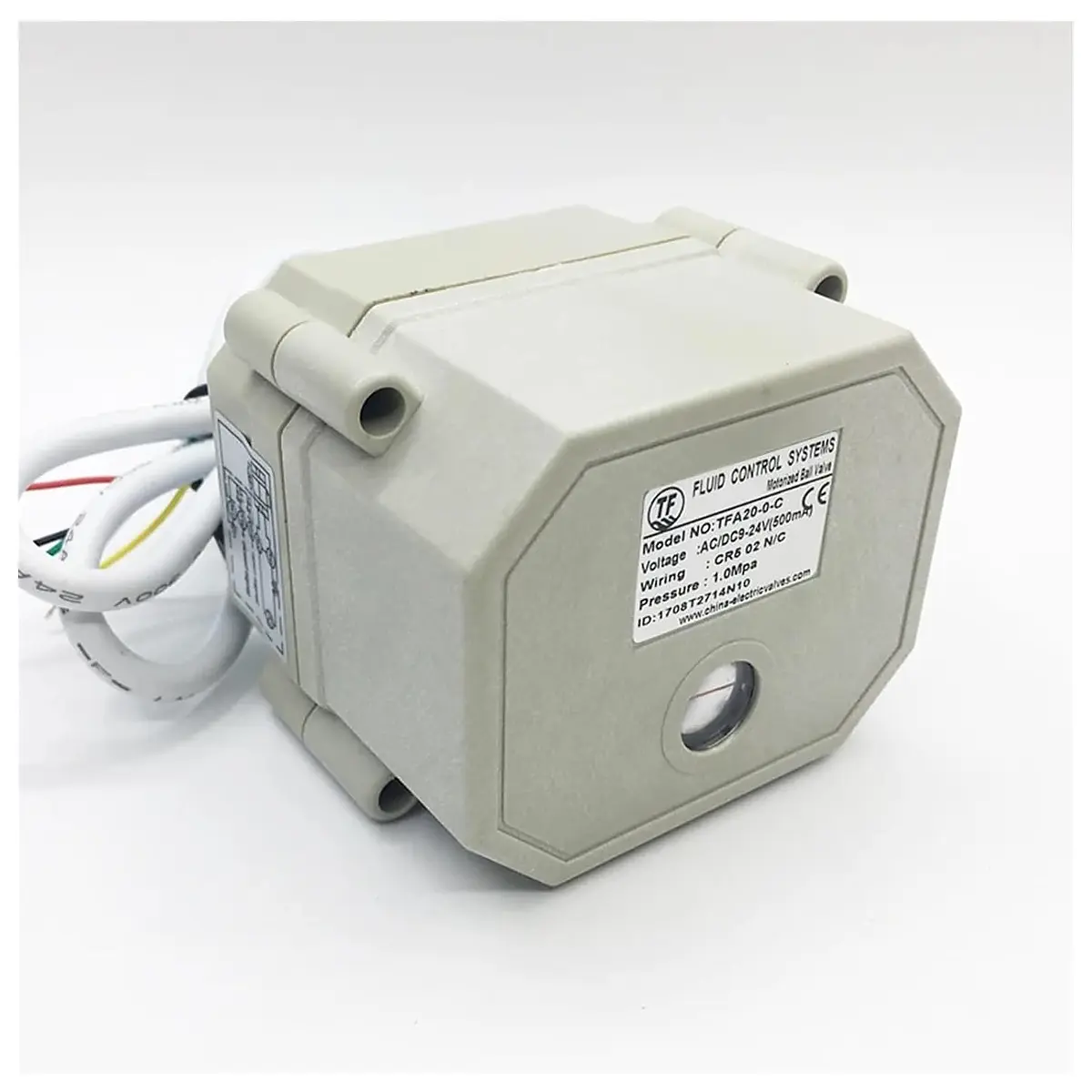

Proportioning Valve Driver 0 5V 0 10V or 4 20mA Modulated Valve Actuator DC9 24V Crane for Water Modulating Control Output 4 20mA, 0V to 5V
★★★★★
(0 reviews)$347.13
✓ In Stock (999 available)
1
Product Description

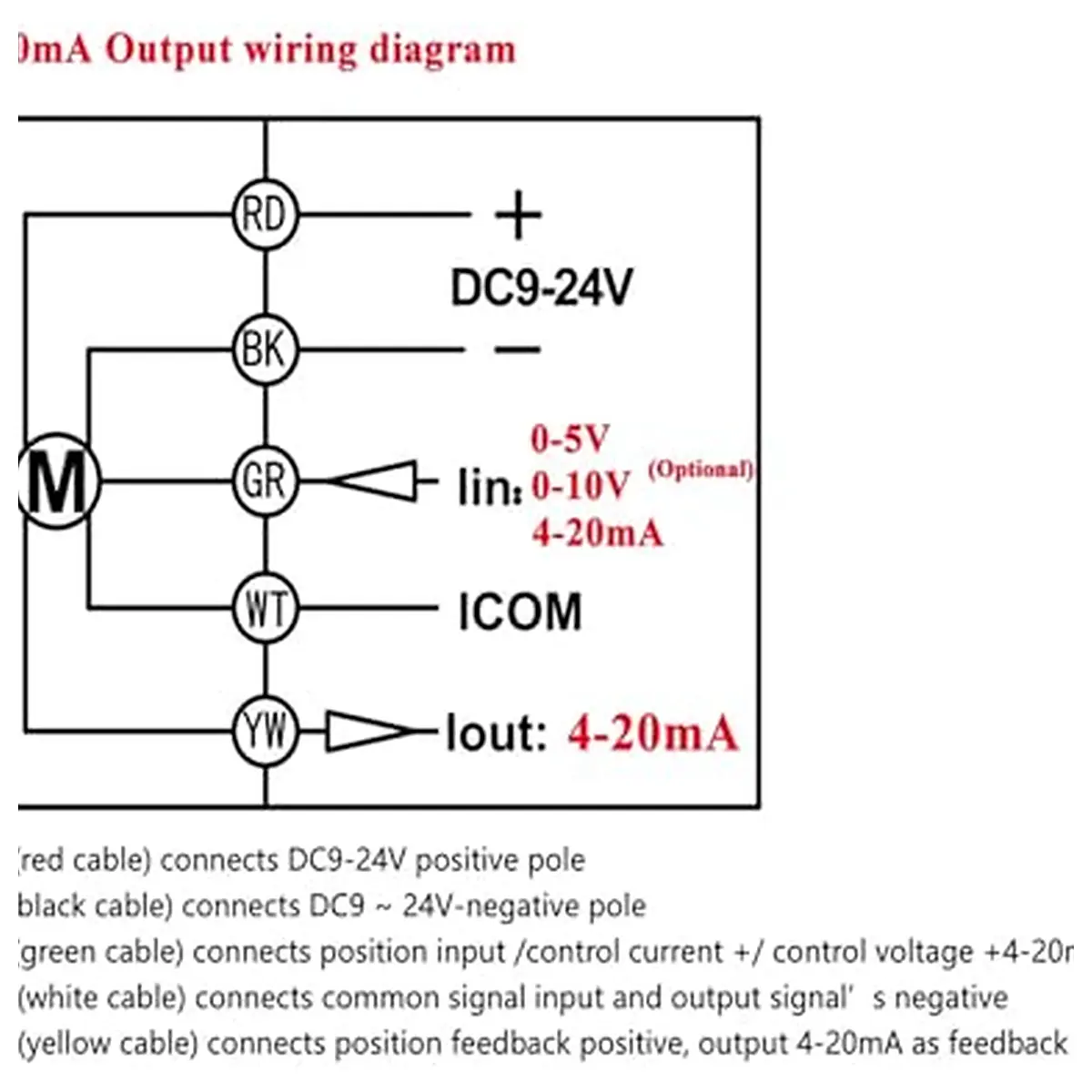

solenoid valve Valves1 RD connect DC9 24V positive2 BK connect DC9 24V 4 20mA 0 5V 0 10V negative3 GR connect position input control current control voltage 4 20mA 0 5V 0 10V 4 YW connect LED light between 9 24V when there is error the light will be ON.5 WT connect position feedback OC output PWM signalPWM frequency:0 100Hz duty: 5 95%Product Model:TFM20 0 CProduct size:DN15 to DN32Valve Thread: BSP or NPT Optional Working Voltage:DC9 24VControl Signal: 0 5V 0 10V 4 20mA Optional Position: Any positionAngel Eurro: 1.6 DegreeOpen close Time:7SecLocked rotor delay time: 2 4 secWiring Control Methods: 5 wiresMaximum Working Pressure:1.0MPa
SKU: Output-4-20ma-jcmikd
