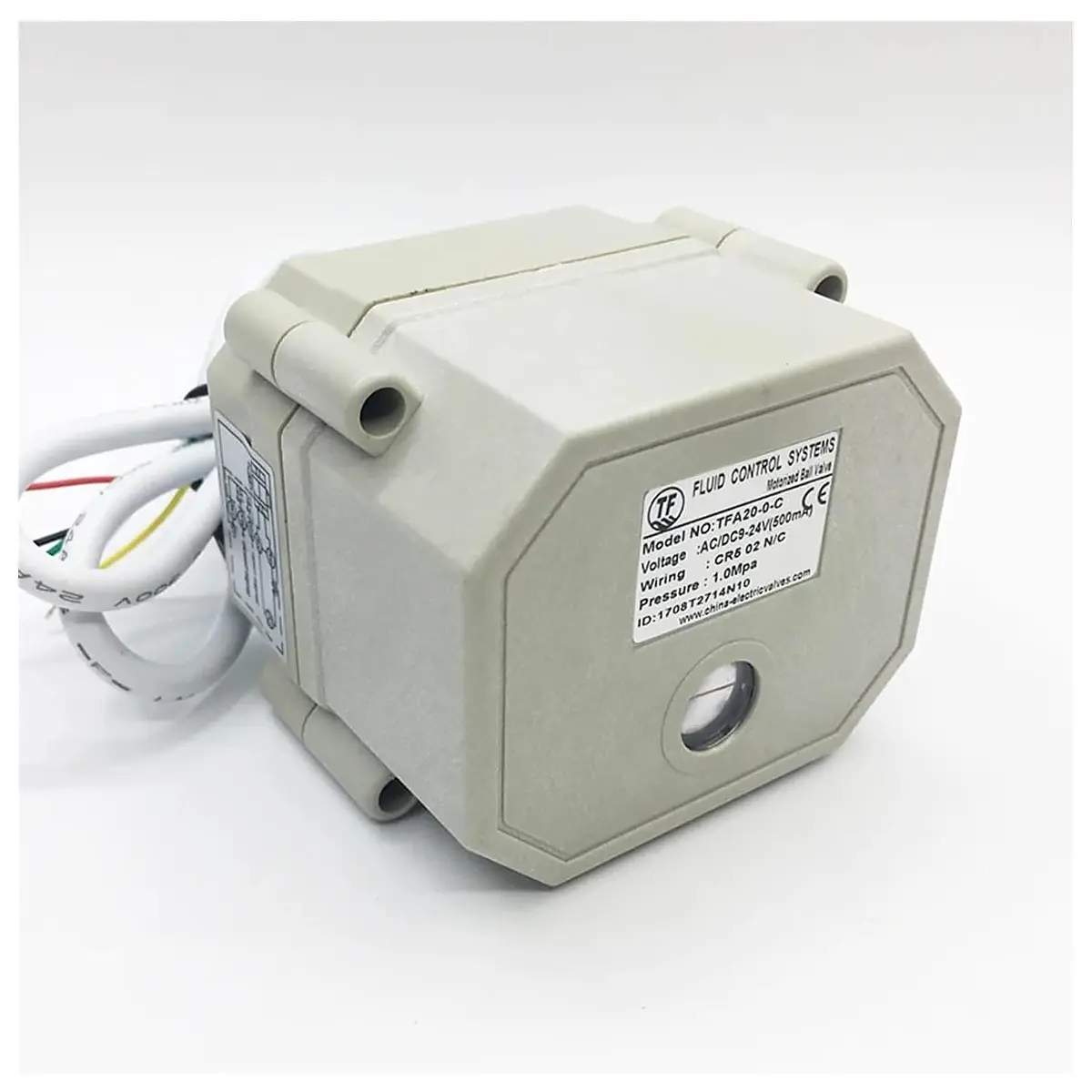

Proportion r 0 5V 0 10V or 4 20mA modulated Valve Actuator DC9 24V Crane for Water Modulating Control Output 4 20ma,0V to 5V
★★★★★
(0 reviews)$381.50
✓ In Stock (999 available)
1
Product Description

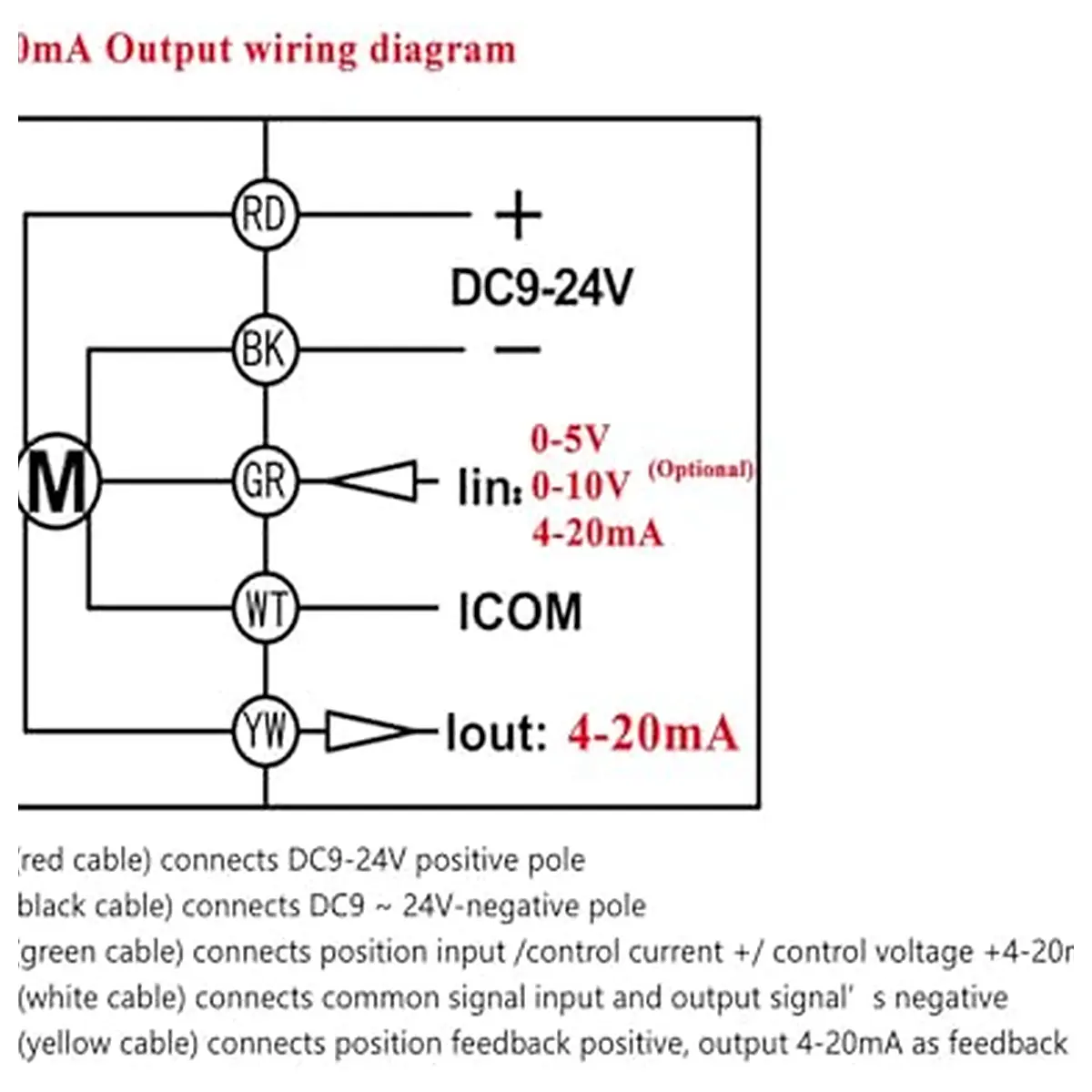

valve solenoid valve Valves 1 RD connect DC9 24V positive 2 BK connect DC9 24V 4 20mA 0 5V 0 10V negative 3 GR connect position input control current control voltage 4 20mA 0 5V 0 10V 4 YW connect LED light between 9 24V when there is error the light will be ON. 5 WT connect position feedback OC output PWM signal PWM frequency:0 100Hz duty: 5 95% Product Model:TFM20 0 C Product size:DN15 to DN32 Valve Thread: BSP or NPT Optional Working Voltage:DC9 24V Control Signal: 0 5V 0 10V 4 20mA Optional Position: Any position Angel Eurro: 1.6 Degree Open close Time:7Sec Locked rotor delay time: 2 4 sec Wiring Control Methods: 5 wires Maximum Working Pressure:1.0MPa
SKU: Output-4-20ma
