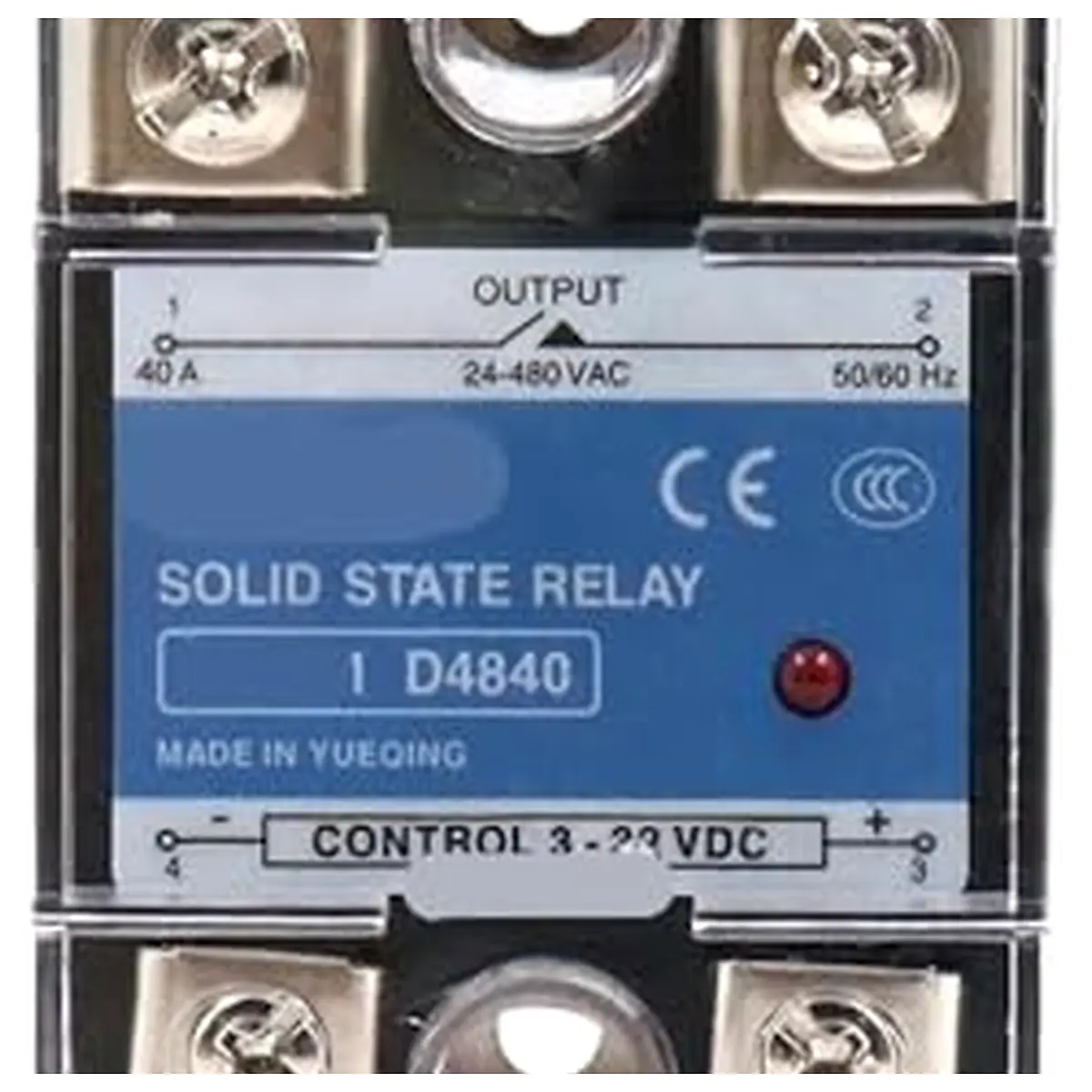

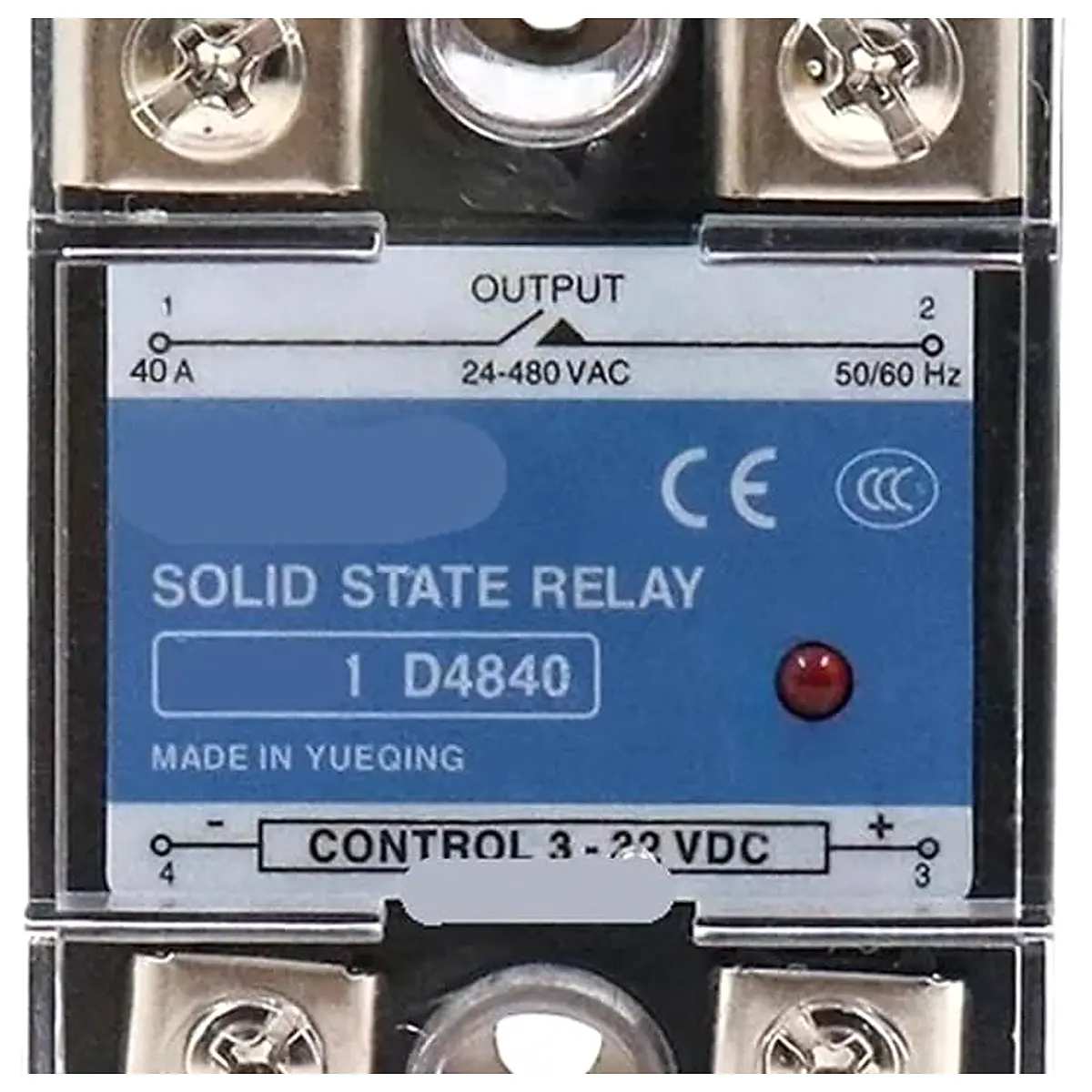

MGR 1 D4840 SSR 40DA Single Phase Solid State Relay 40A DC Control AC Input 3 32V Output 24 380V

Solid State Relays Specification: Product Name: Solid State Relay DC AC : MGR 1 D4840 Load current: 40A Control voltage: 3 32VDC Load voltage: 24 480VAC Control current: DC3 25mA Turn on voltage: 1.5V Turn off leakage current: 2mA On off time: 10ms Insulation resistance: 1000M 500VDC Dielectric strength: 2500VAC Ambient temperature 30 75 Power supply: AC Theory: Solid State Relays Protection features: Sealed Contact load: low power Purpose: Protection : MGR 1 D4840 Load current: 40A Load voltage: 24 480VAC Control voltage: 3 32VDC
