High Power Voltage Regulation SSR Industrial Regulator Model 200A 300A 400A 4 20mA 0 10V 0 5V Solid State Relay 400A,LC220 4 20mA

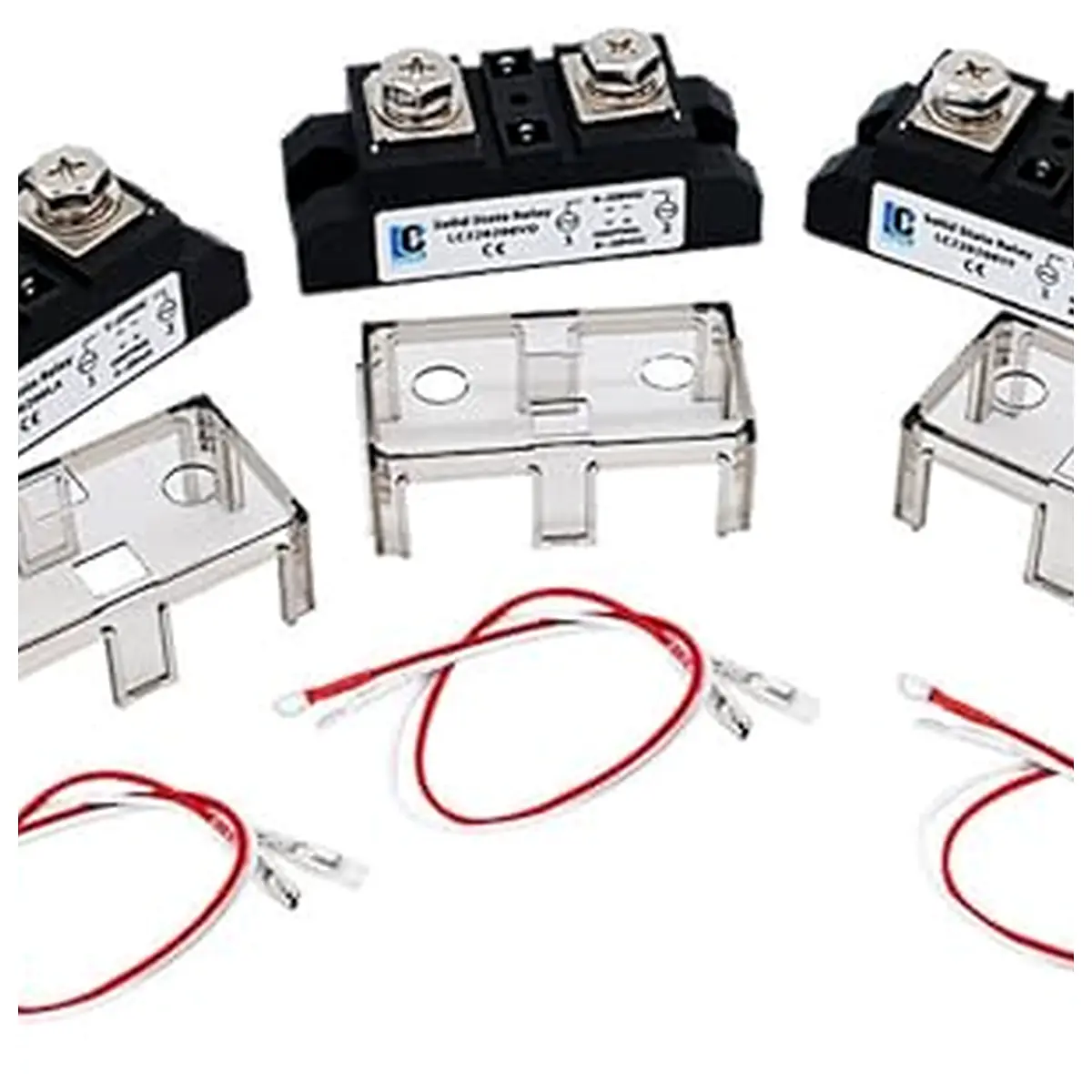

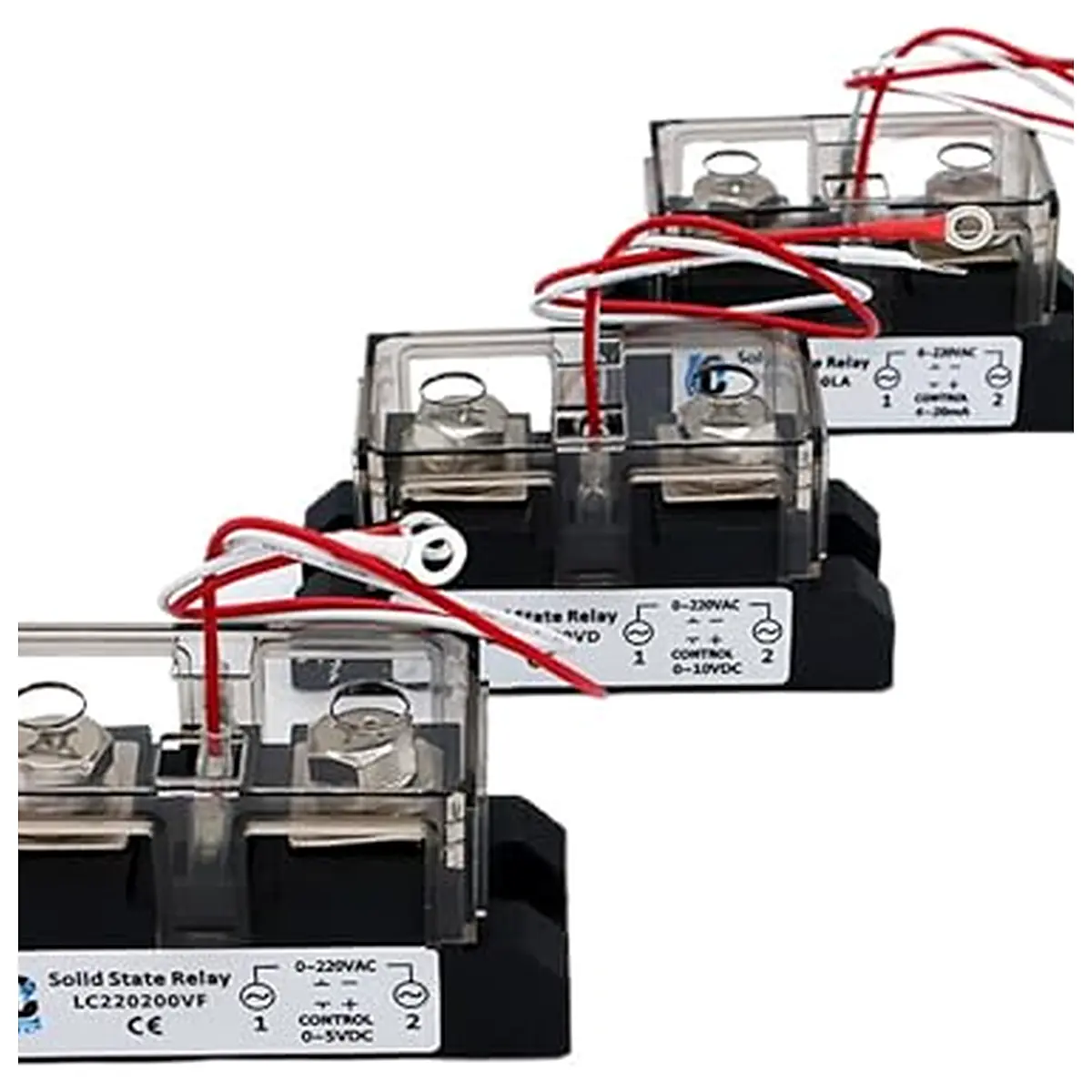

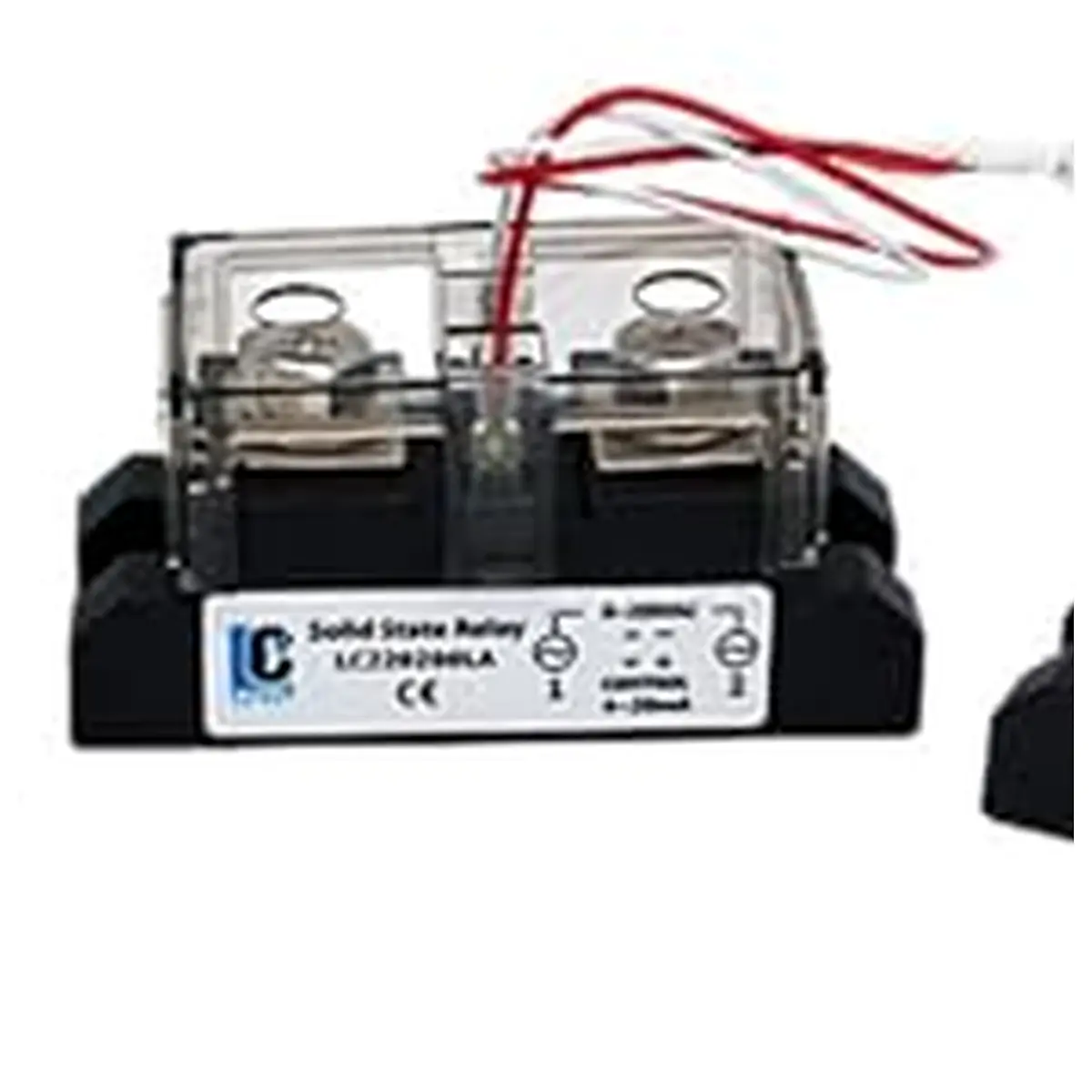

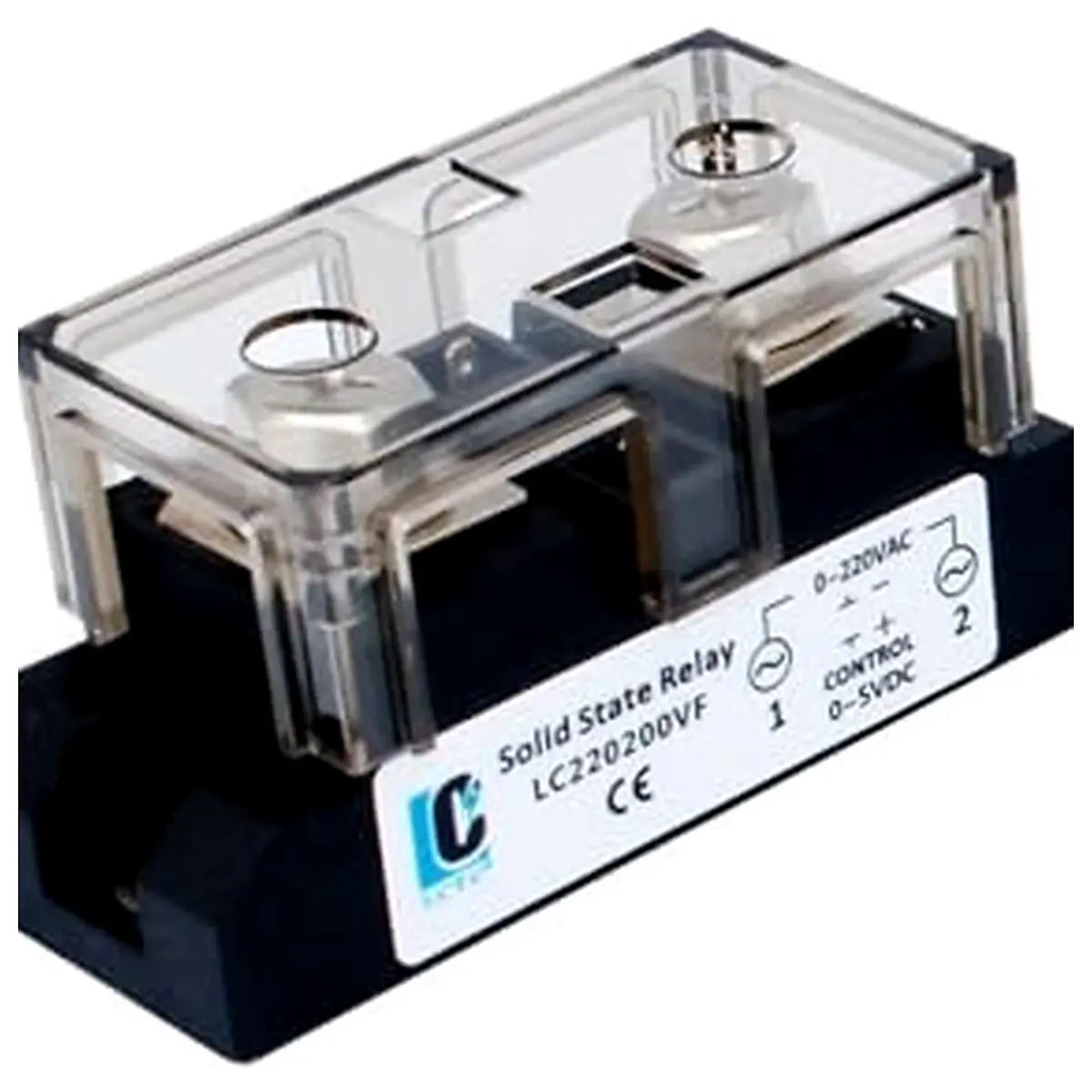

Relays RelayHigh Power Industrial Voltage Regulator Model 200A 300A 400A 4 20mA 0 10V 0 5V Solid State RelaySTEP 1LC220200A 400AModelVDVFLAInput Voltage0 10VDC0 5VDC4 20mAOutput Voltage0 220VAC0 220VAC0 220VACLoad Current200A 300A 400A200A 300A 400A200A 300A 400APeak Voltage800V800V800VOperation Temperature 30 to 80 30 to 80 30 to 80Max off state leakage current2mA2mA2mAMax on state voltage drop1.5V1.5V1.5VDielectric strength2500V2500V2500VOn Off Time10ms10ms10msInsulation Resistance1000M1000M1000MCertificatesCECECESTEP 2: Choose a correct typeCurrent of Equipment Ratio Current of SSRPS: The Ratio depend on the kind of your loading equipment.Resistive load :70%STEP 3: Choose a suitable heat sink.During the useage of SSR it will give out a lot of heat so in order to extend the life of your SSR please install a heat sink also if the current is over 60A the cooling fan also required.PS: Our Heat Sink include 2 screws for install heat sink and a pack of thermal compound is applied to the bottom of the SSR Note: This type of voltage regulating module is not suitable for inductive loads such as and motors.FeaturesPrecautions1.When choosing a SSR please notice the actual load current and working ambient temperature.2.Apply heat radiation silicon grease of a heat conductive sheet between the SSR and heat sink.3.Tighten the ssr terminal screws properly.4.Please do not use the relay beyond the descriptions in the data sheet.Note: This type of voltage regulating module is not suitable for inductive loads such as and motors.
