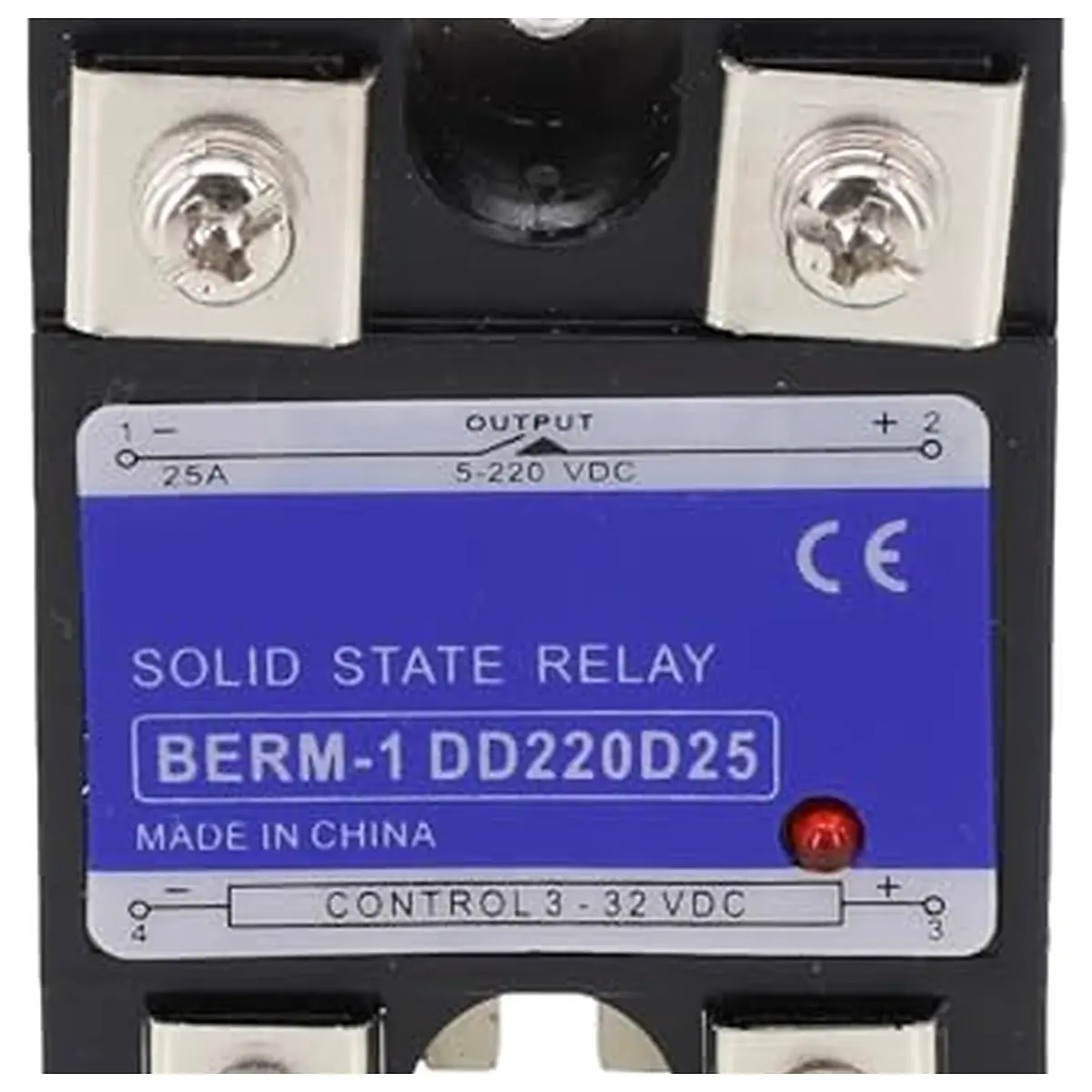

Compatible with Single Phase Solid State Relay DC DC 3 32V Control Voltage 10A 100A Fast Switching High Temperature Resistant DD220D25

Features: and Use special photoelectric coupler for isolation, with fast switching , high working for frequency, long service life, low power consumption, improved product efficiency, and high temperature resistance. Use internal working for methods, no internal contacts required. The thickened and thickened copper feet are made of red copper, which has excellent electrical conductivity and stable power output. conductive wiring screws are made of materials, have excellent conductivity and reduce wear, and are resistant to high voltage. The product shell is made of engineering plastic, which is , stable, not easily deformed, and the quality is guaranteed. Specification: Name: Single Phase Solid State Relay Model optional : DD220D10, DD220D25, DD220D40, DD220D60, DD220D80, DD220D100 Control mode: DC controlled DC Output current: 10A 120A Drive current: 5 20MA Control voltage: 3 32VDC Load voltage: 5 200VDC Ambient temperature: 30 70℃ On off time: ≤10ms Product weight: 0.08KG Off state leakage current: ≤5MA Package Included: 1 x relay
