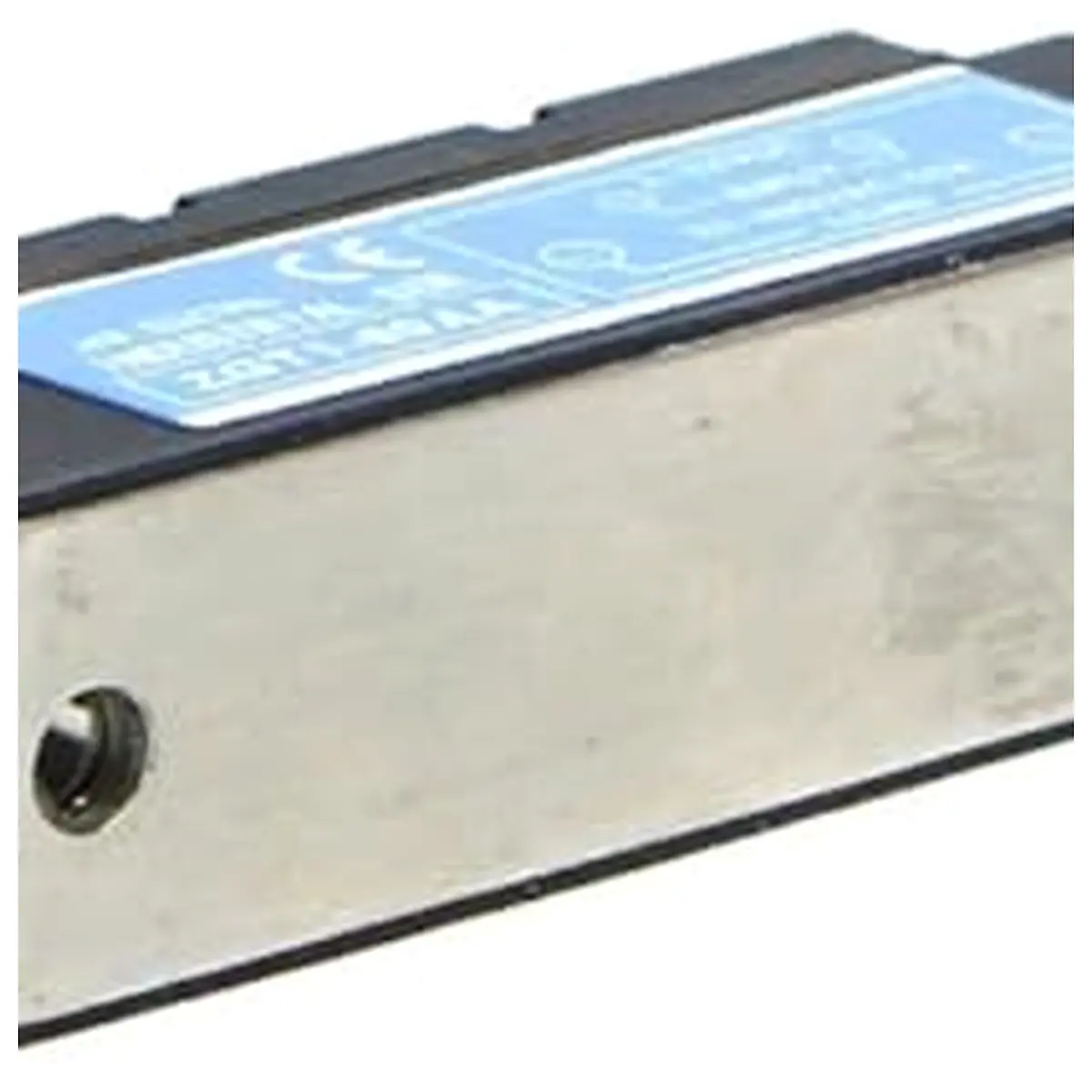

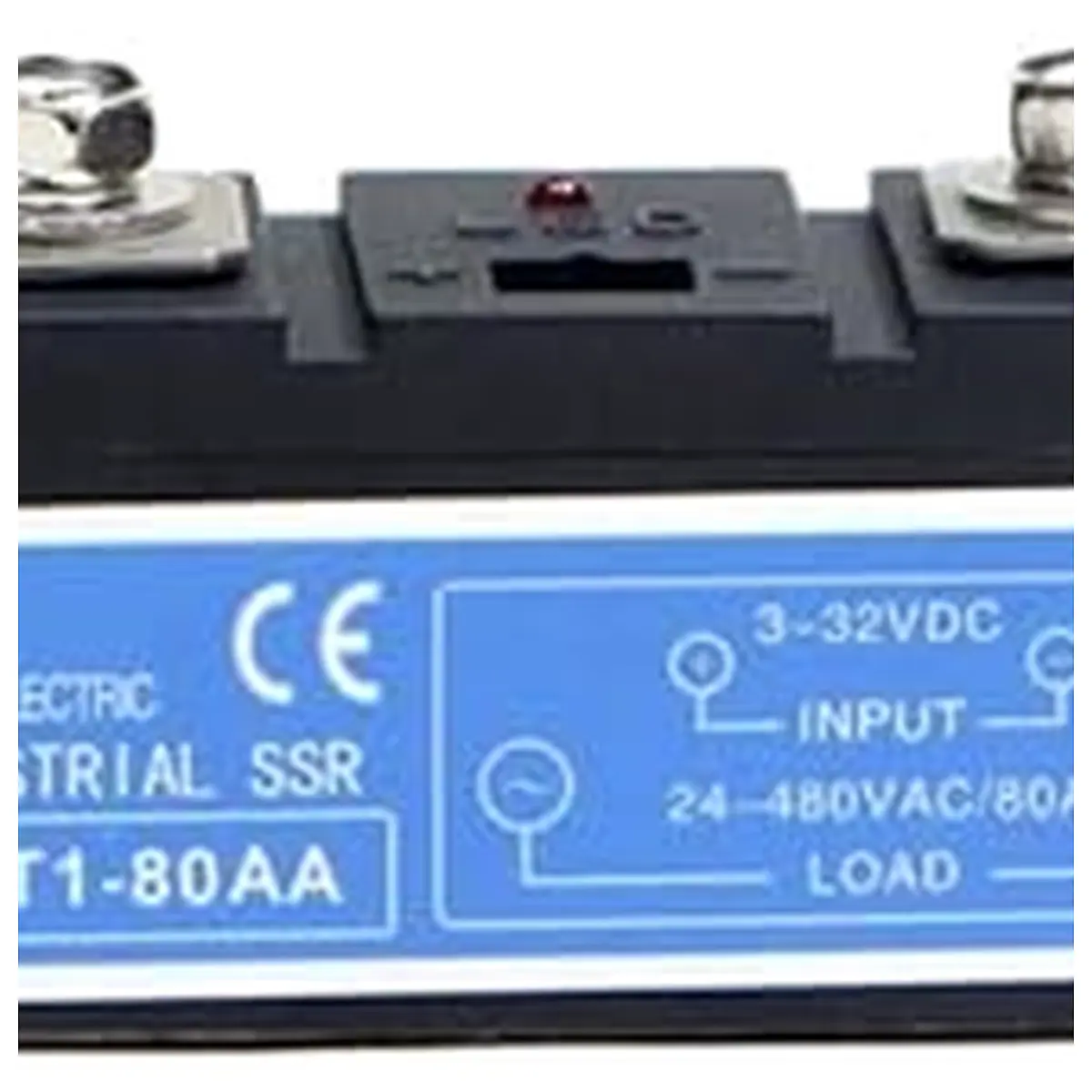

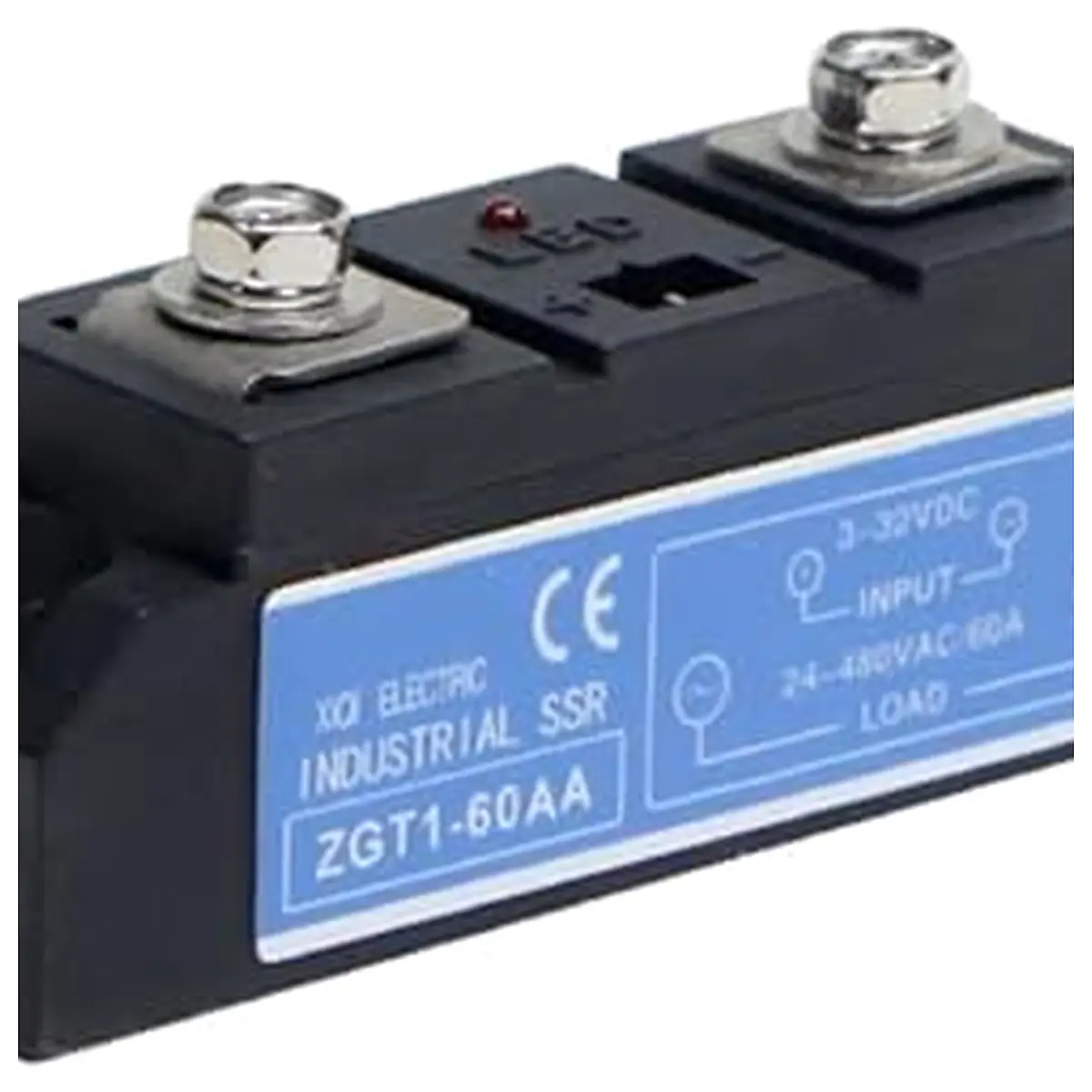

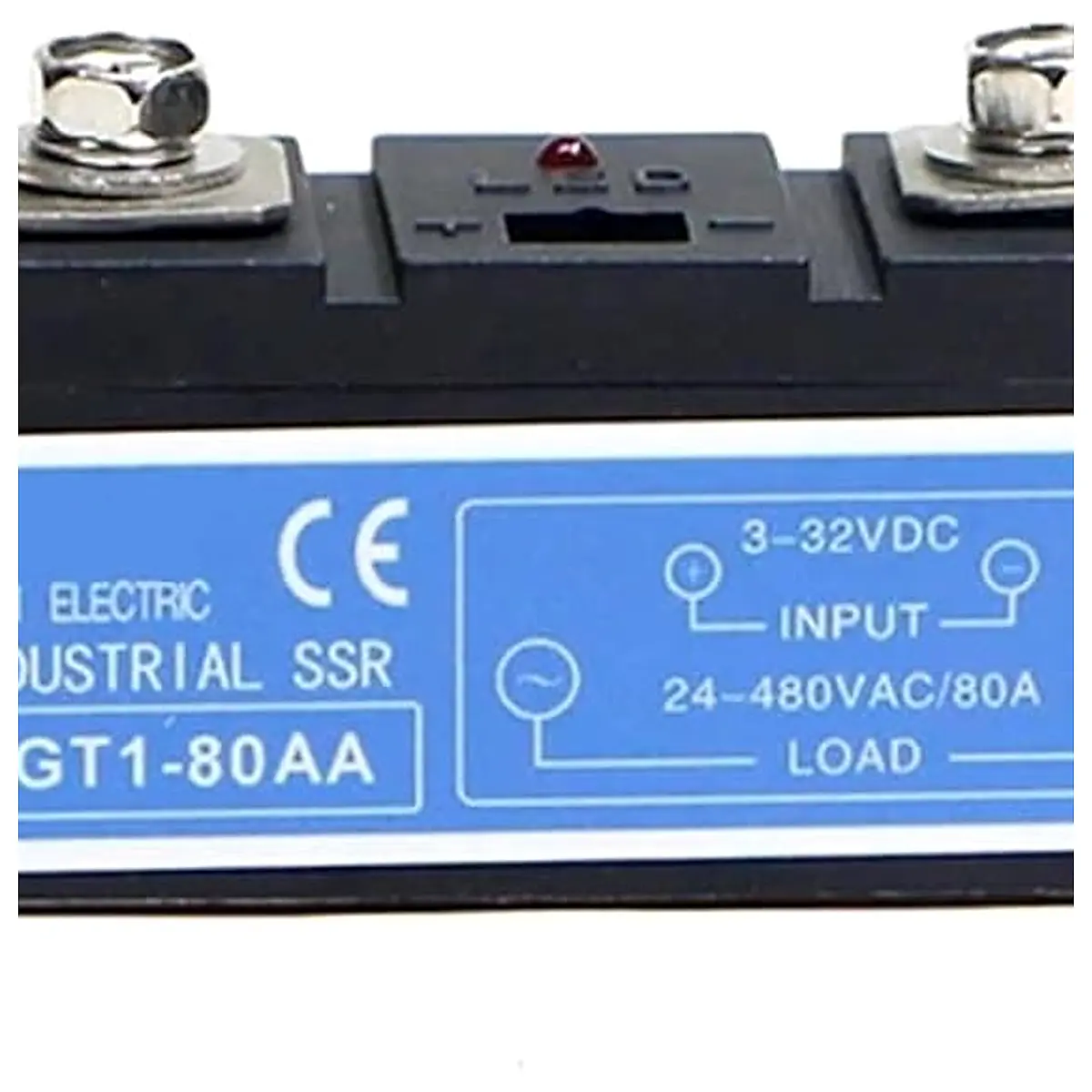

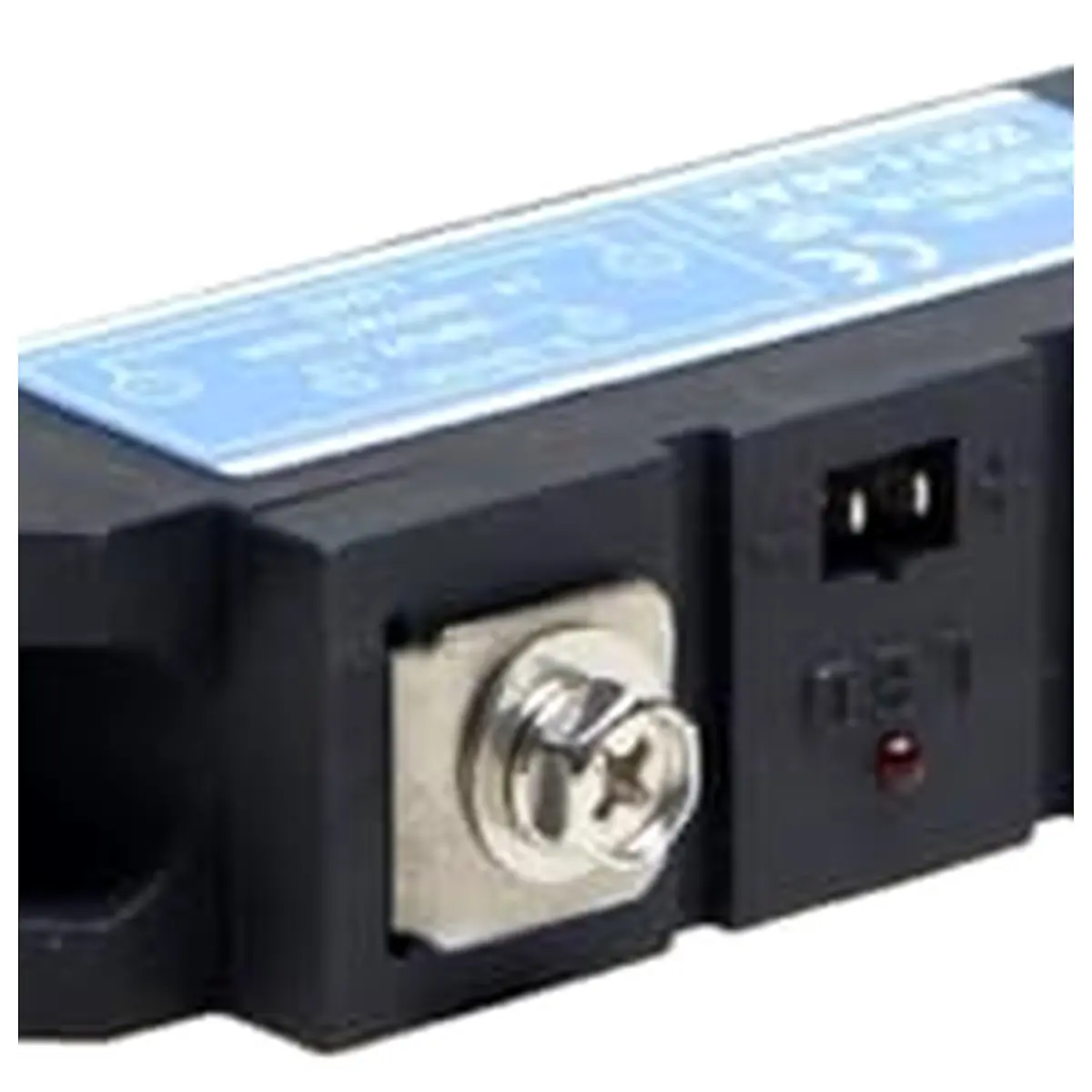

CG 40A 60A 80A 100A SSR Industrial High Power Automotive Industry Series AC to Solid State Relay 80AA

Solid State Relays Step 1: Select the correct control mode AA AC Control AC DA DC Control AC DD DC Control Direct Current VA Control and Adjustment Step 2: Choose the Right Type Device current ratio SSR current PS: The ratio depends on the type of your loading equipment. Resistive load: 70%, inductive load: 20%, capacitive load: 10%. Step 3: Choose a suitable heat sink. SSR will generate a lot of heat during use, so in order to extend the service life of SSR, please install a radiator. In addition, if the current exceeds 60A, a cooling fan is also required. PS: Our heat sink includes 2 screws for mounting the heat sink and a pack of thermal compound applied to the bottom of the SSR Notice: There is a semiconductor inside the solid state relay. The semiconductor switch is a switch without physical contact. When measured with a multimeter diode or resistor, it always shows a high resistance state the multimeter light is red . According to the conventional detection method of solid state relays: a load is needed to test the switch state. Using an as a dummy load is an obvious way to test continuity. Theory: Solid State Relays Protection features: Sealed Application: Contact load: Low power : ZGT1 60DA 80DA 100DA Origin: Mainland China Certification: CE
