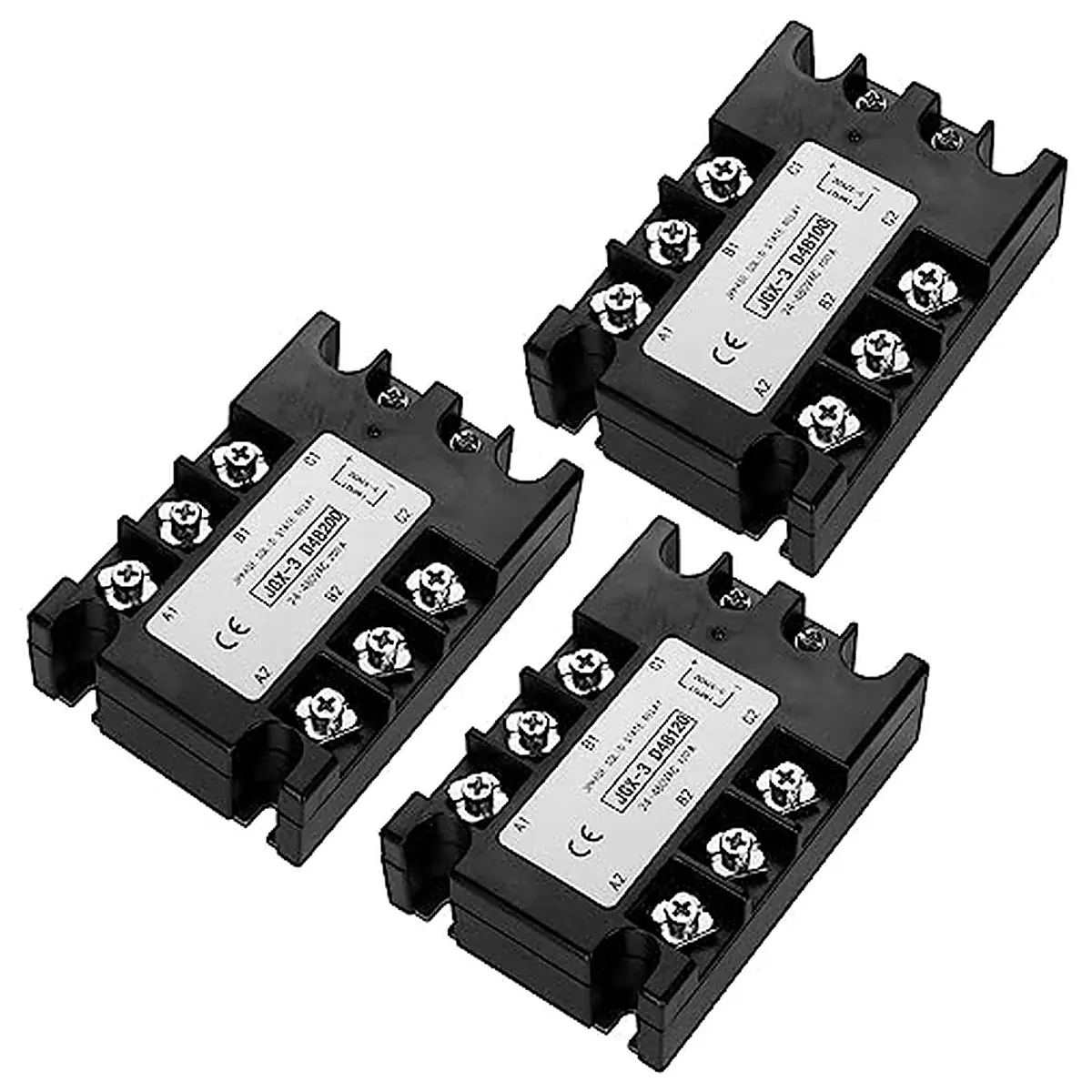

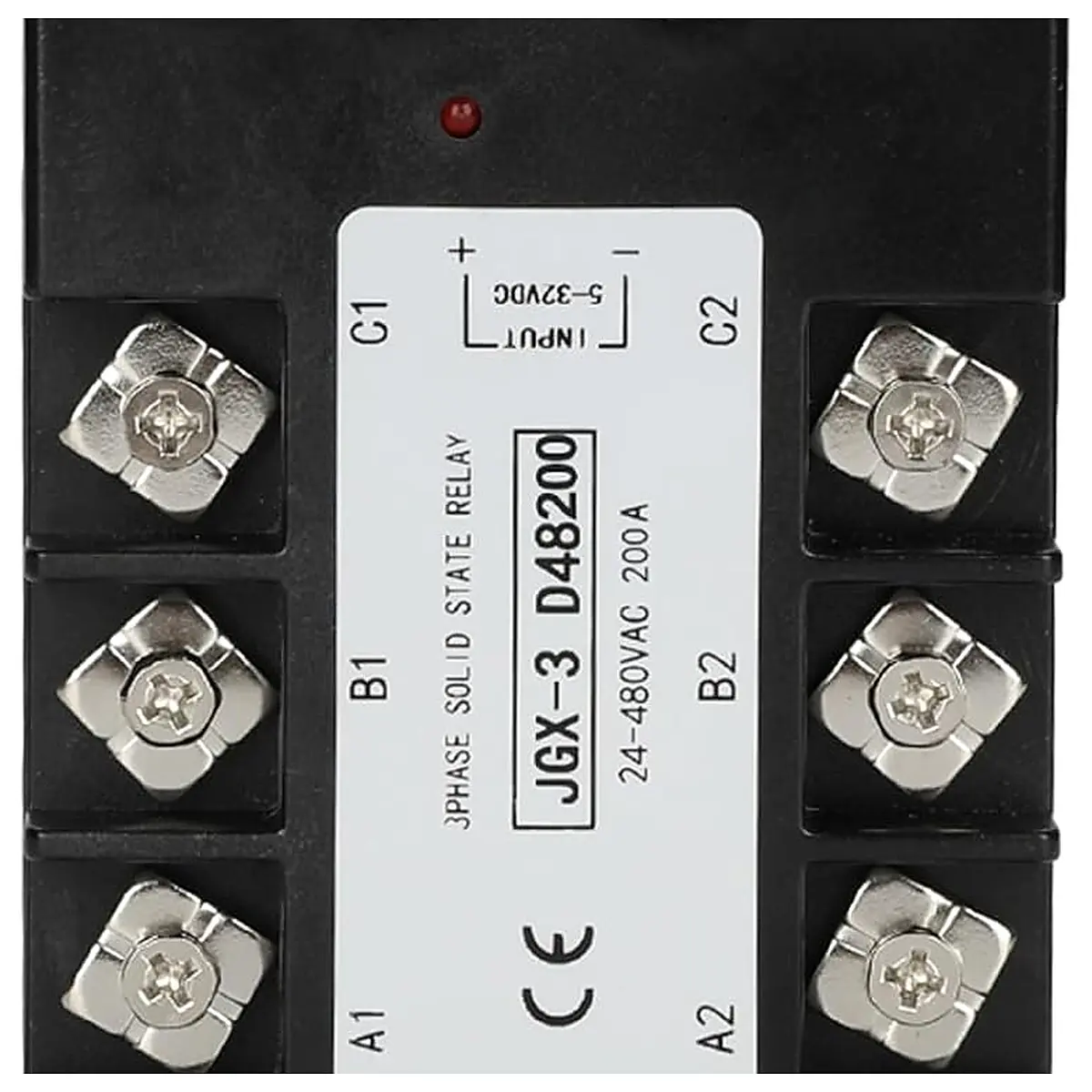

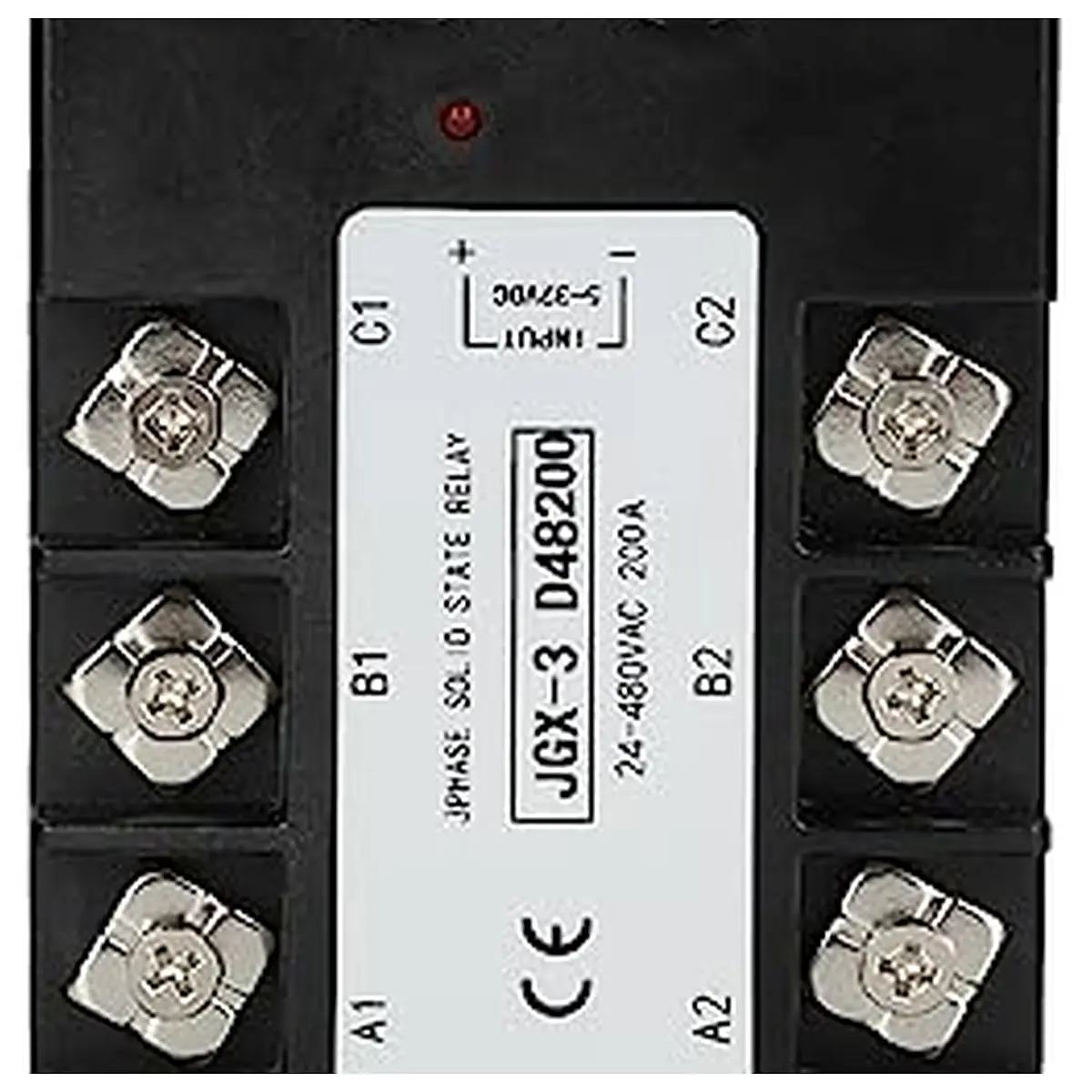

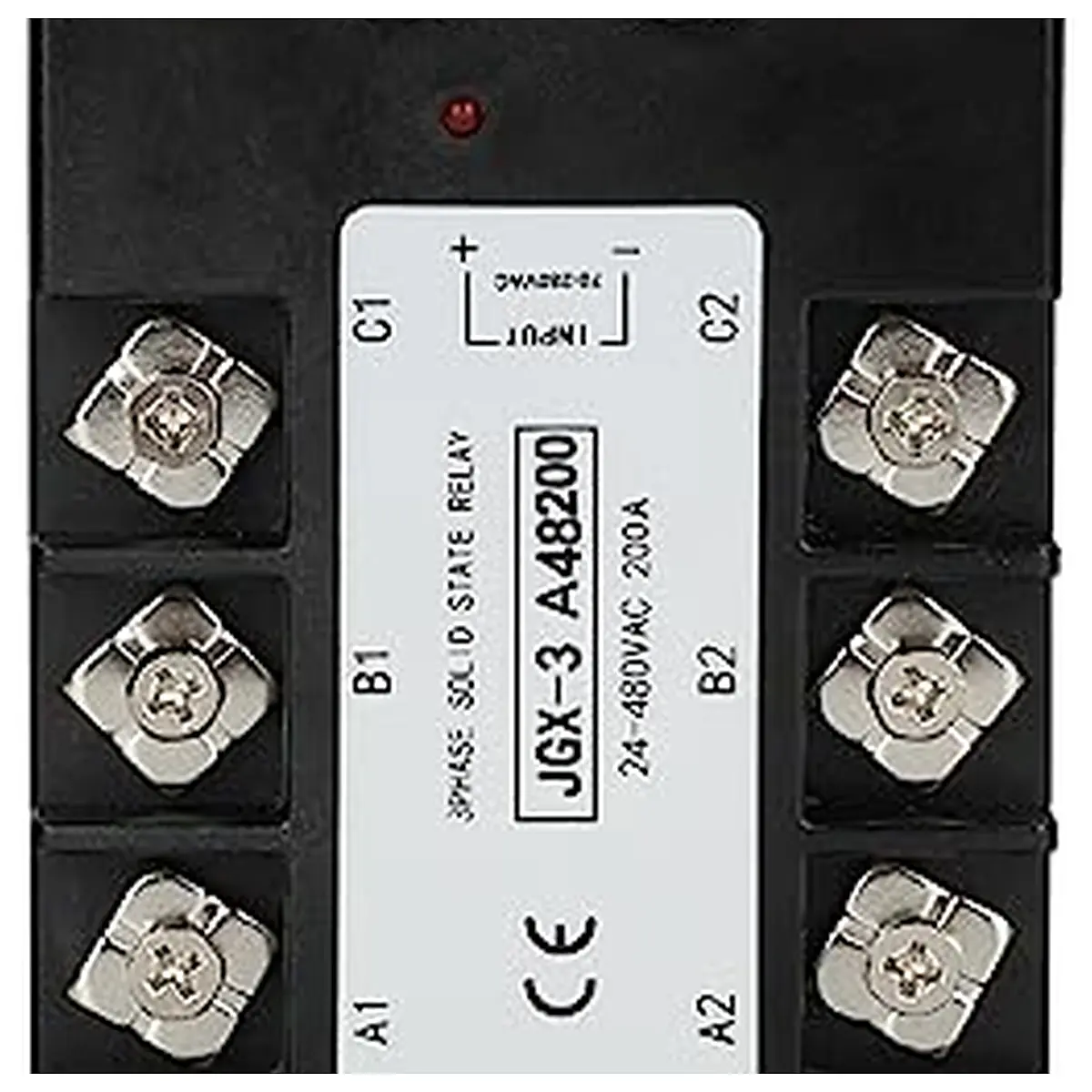

CE Approved Excellent 200A DC AC AC AC Three Phase Solid State Relay Module SSR Low Switching Loss Output Voltage Range 24 480VAC 200A AC to AC

relay Relay Specificate: Product Model :GX 3 D48200 Control Mode : DC AC AC AC MaxLoadCurrent: 200A LoadVoltage 24 480VAC ControlVoltage 3 32VDC DC DC 70 280VAC AC AC Onvoltage1.5V On offTime10ms DielectricStrength 2500VAC InsulationResistance 1000M 500VDC AmbientTemperature 25 75 MountingMethods Bolting Theworkinstructions LED Features : 1: beyond one year warranty 2: contactless switchfunction 3: no cause electric sparks 4:Low switch loss 5: damp and flame proof 6: standard weight 0.488kg
