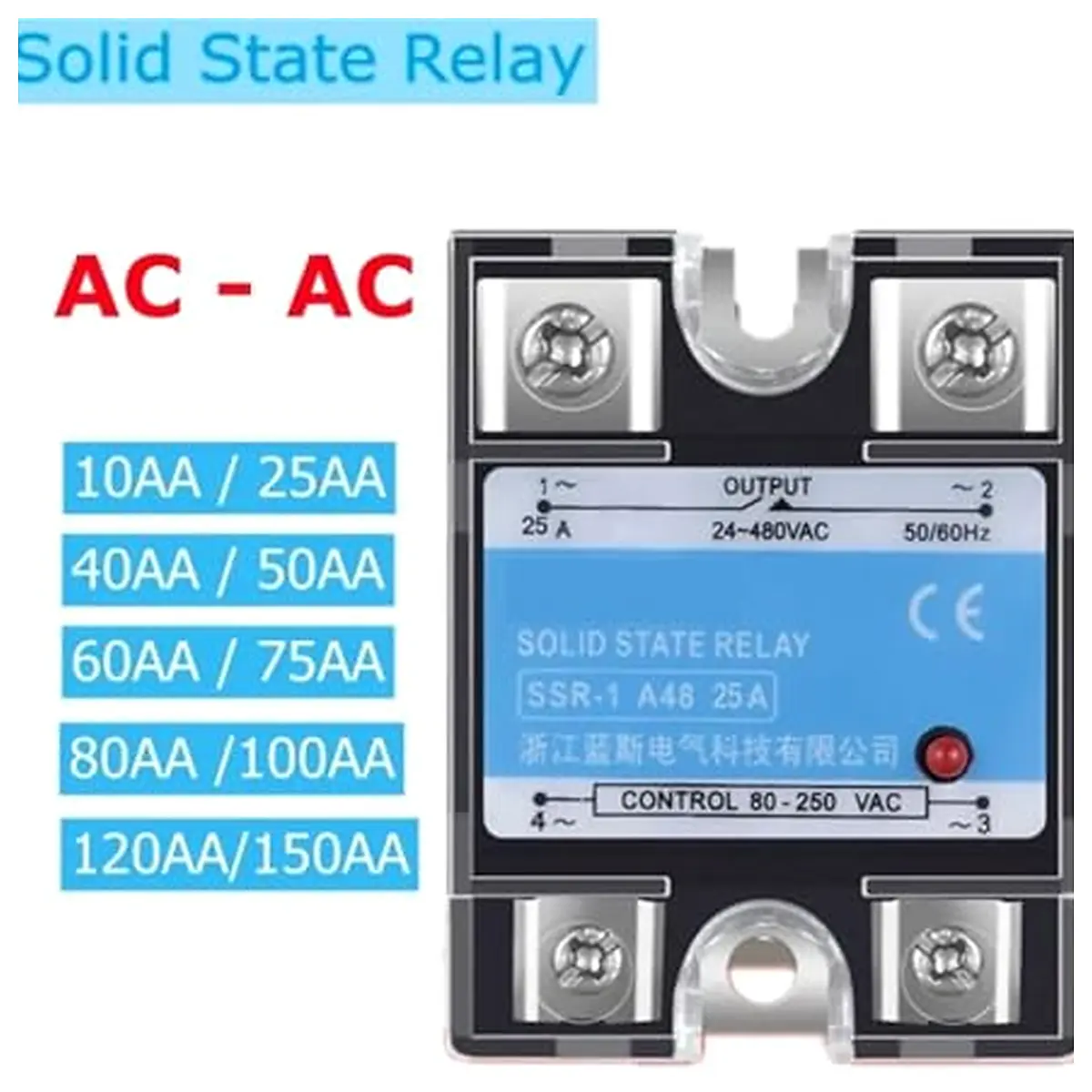

2pcs SSR 25AA 40AA 60AA 80AA 100AA 120AA 150AA AC Control AC SSR Single Phase Solid State Relay 24 480VAC 70 280VAC Solid State Relay SSR 80AA

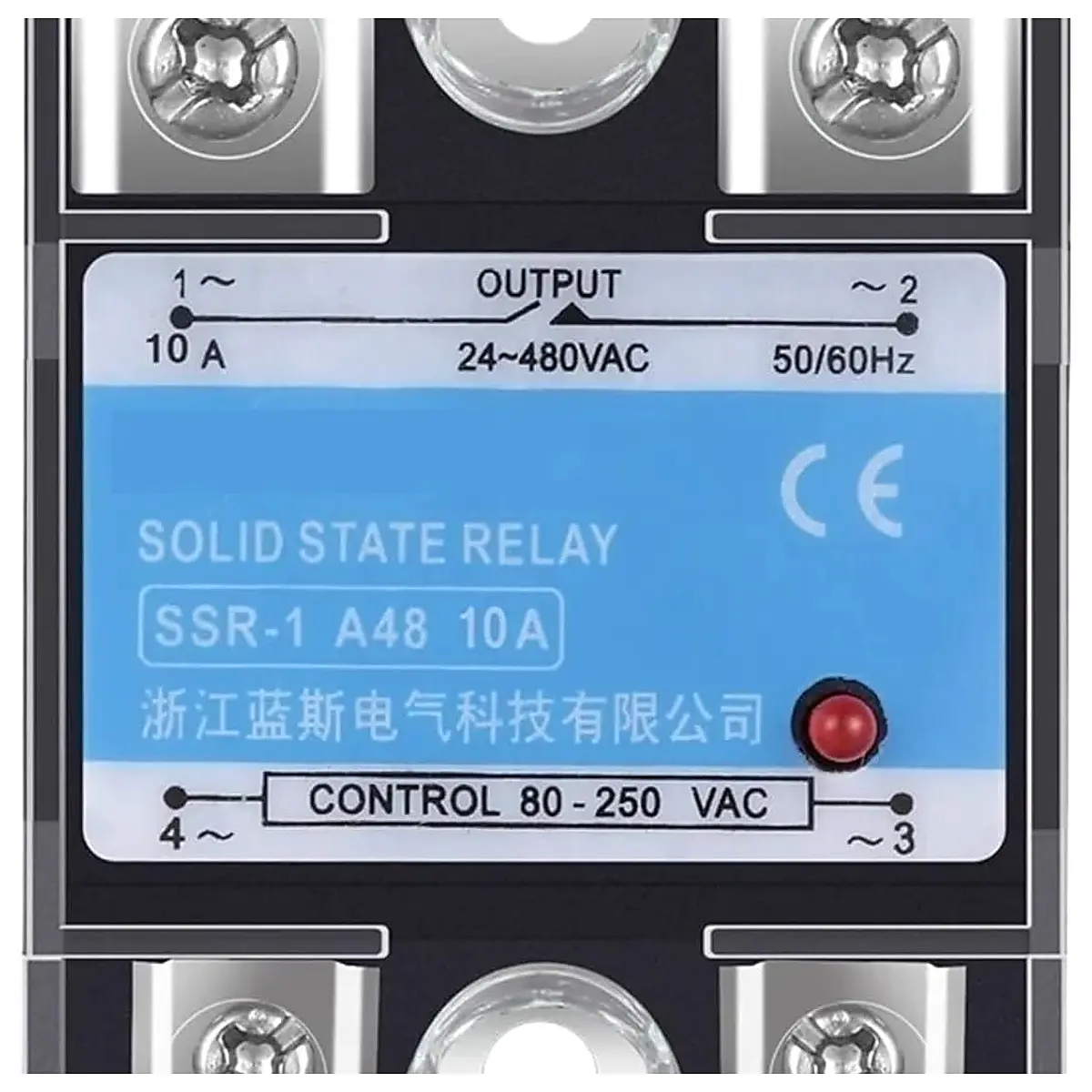

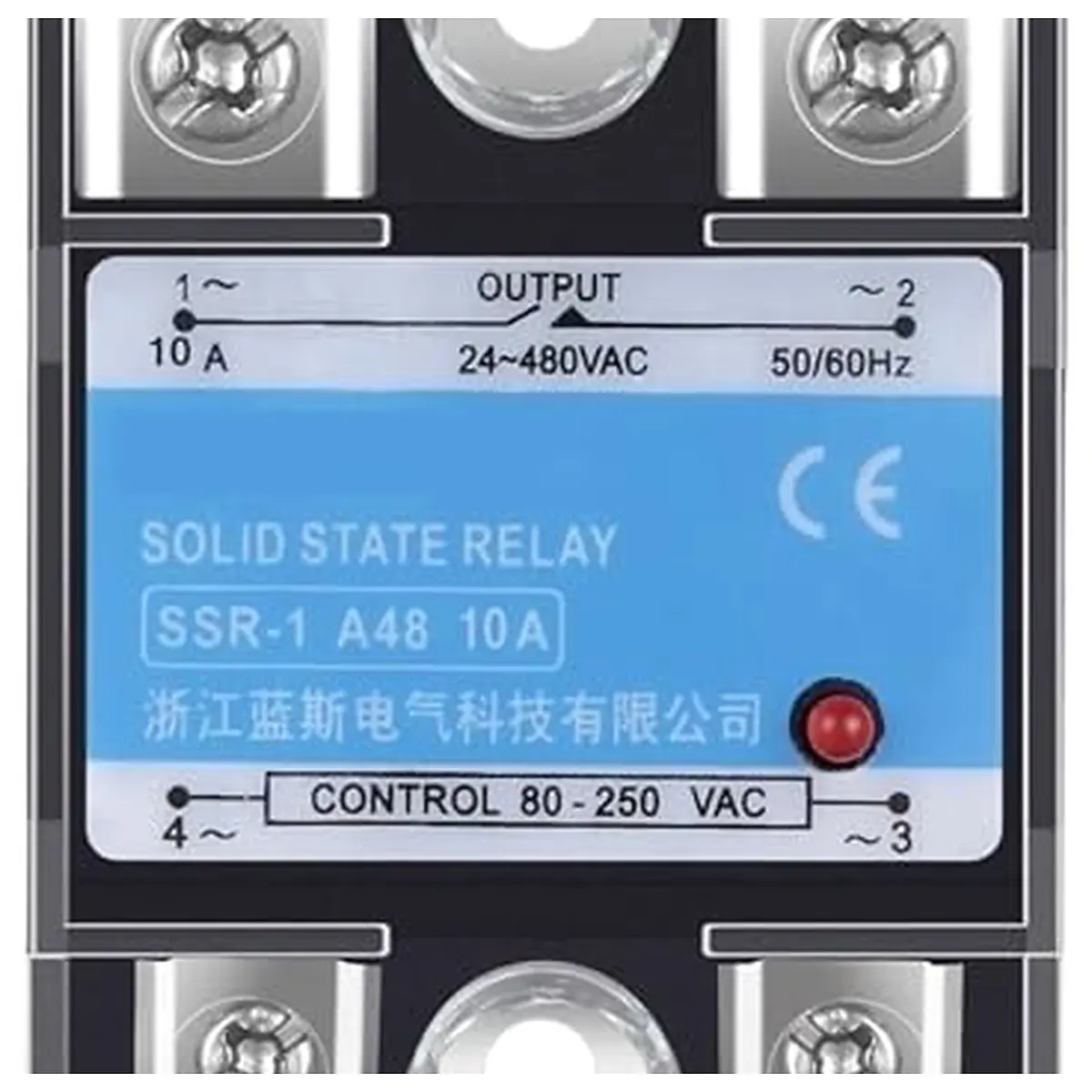

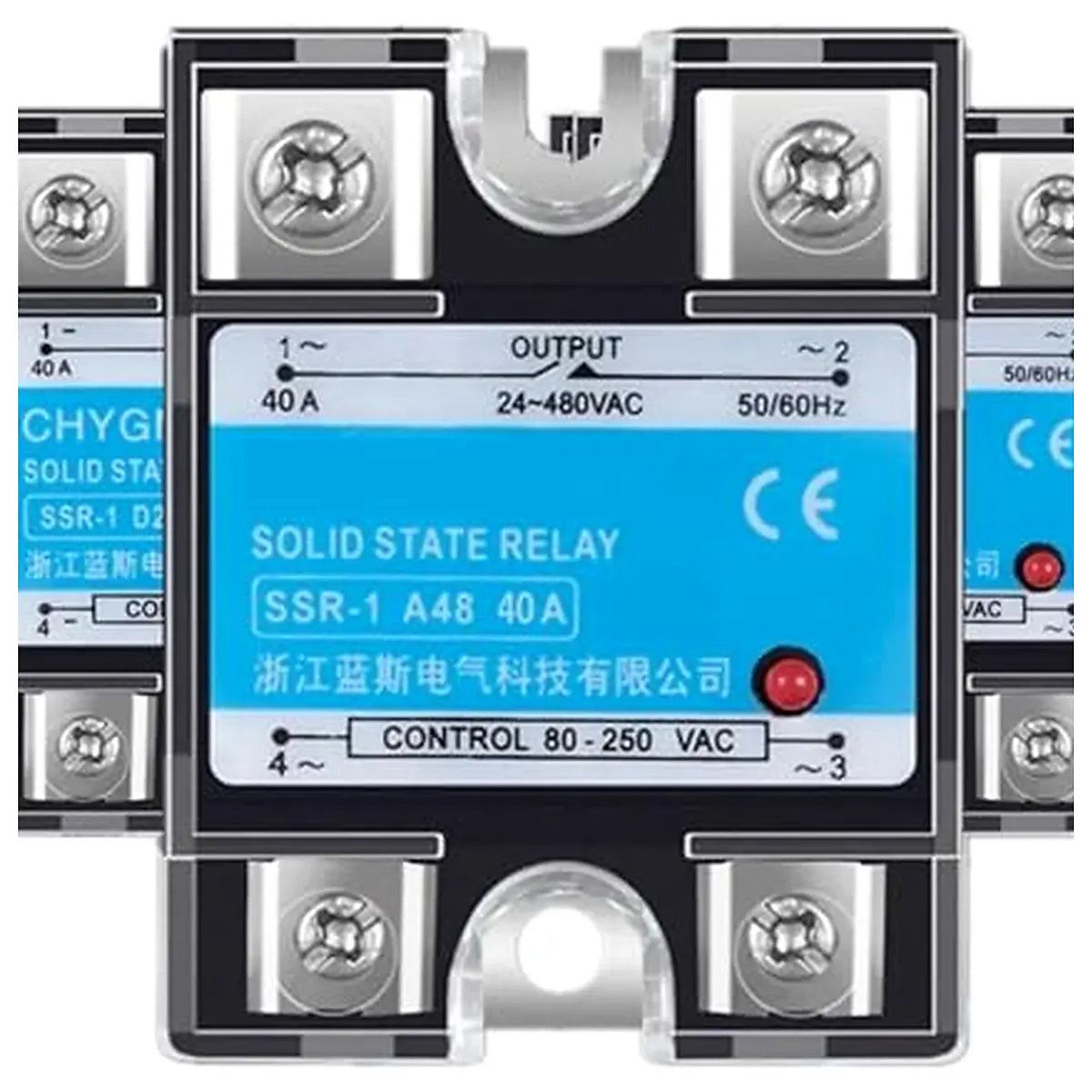

Solid State Relays STEP 1: select the control method AA: AC control AC DA: DC control AC DD: DC control DC STEP 2: Calculate the current and select the correct model Equipment power Voltage Current Current Coefficient Ratio Current of SSR The coefficient depends on the load type of the loading equipment. Resistive load: 60% Inductive load: 30% Package Content: 2Pcs High concerned chemical : None Power Source : AC Theory : Solid State Relay is customized : Yes Contact Load : Low Power Model Number : SSR 10AA 25AA 40AA 50AA 60AA 75AA 80AA 100AA 120AA 150AA Use : General Purpose Protect Feature : Sealed Model : SSR 1 series Model Number : AC AC Contact Form : Normally open Output current : 10A 120A optional Load voltage : 24 480VAC Control voltage : 70 280VAC On off time : 10MS On state step down : 1.6V Off state leakage current : 5MA Ambient temperature : 30 70
