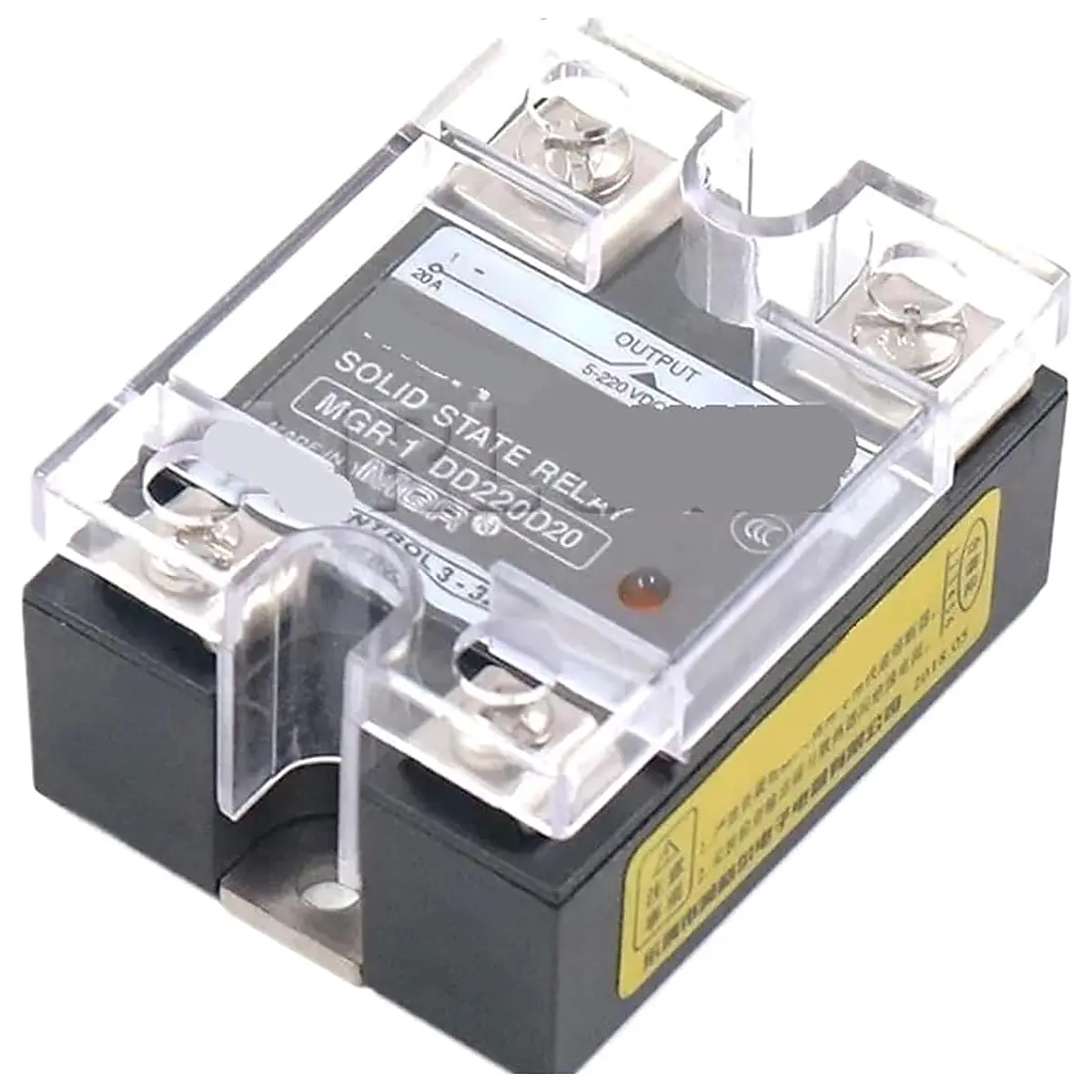

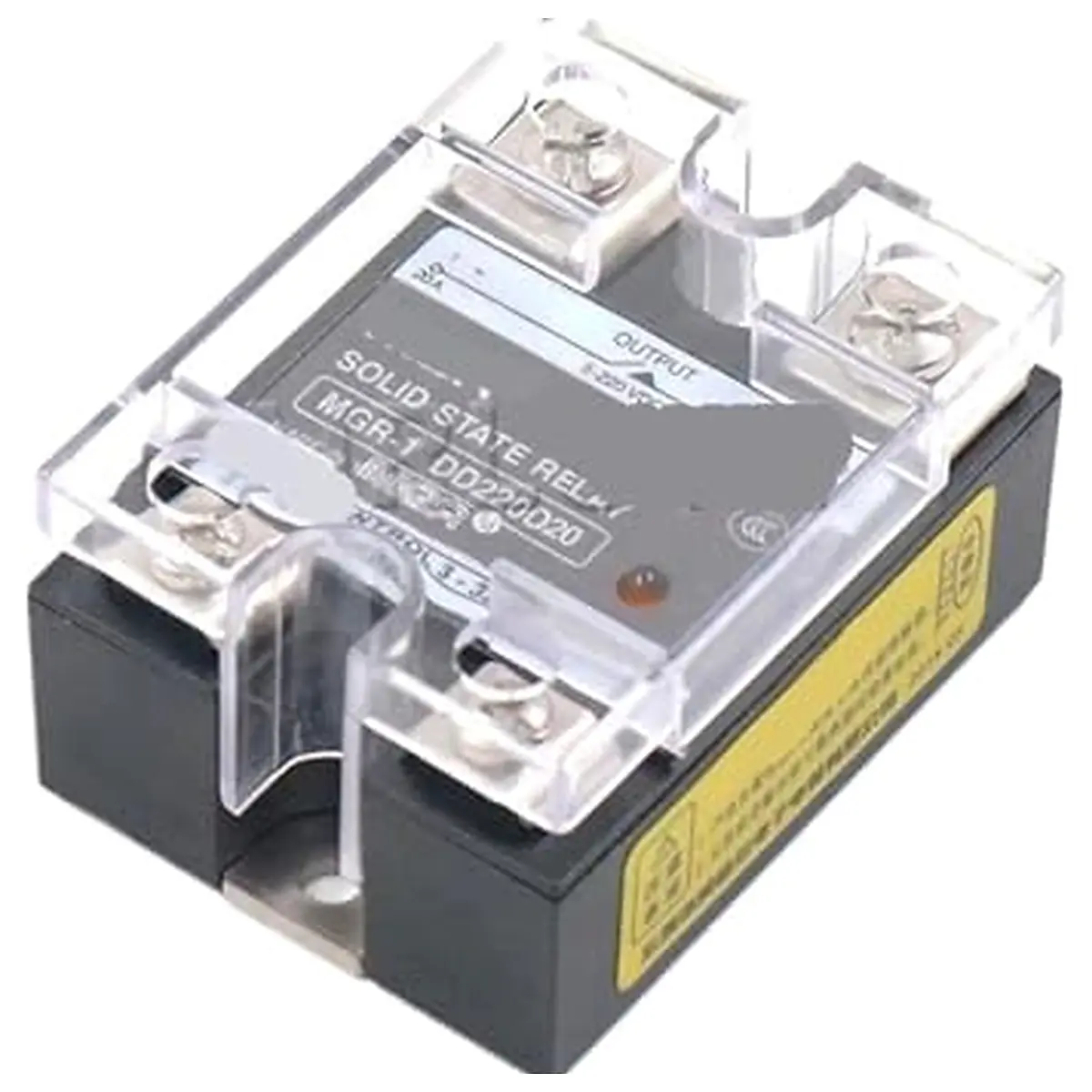

20DD SSR Control 3 32VDC Output 5 220VDC Single Phase DC Solid State Relay 20A MGR 1 DD220D20
★★★★★
(0 reviews)$142.83
✓ In Stock (999 available)
1
Product Description
Solid State Relays Specification: Product Name: Solid State Relay DC DC : MGR 1 DD220D20 Load current: 20A Control voltage: 3 32VDC Load voltage: 5 220VDC Control current: DC3 25mA Turn on voltage: 2V Turn off leakage current: 2mA On off time: 10ms Insulation resistance: 1000M 500VDC Installation method: screw fixed Ambient temperature 30 75 Working Indicator: LED Power supply: DC Solid State Relays Protection features: Sealed Contact load: low power Purpose: Protection : MGR 1 DD220D20 Load current: 20A Load voltage: 5 220VDC Control voltage: 3 32VDC
SKU: 2p2fxGaE
